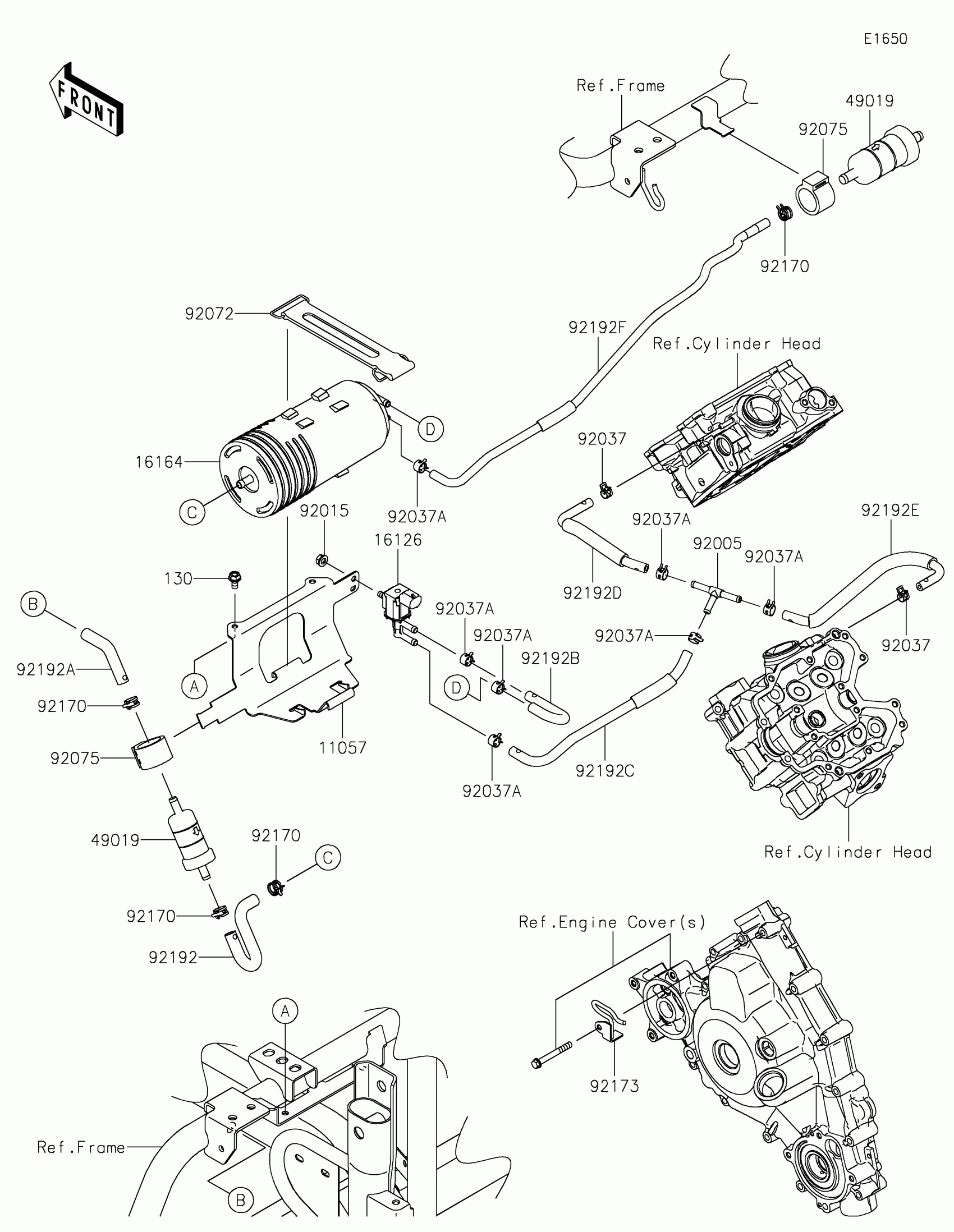

2021 Kawasaki TERYX4™ LE Fuel Evaporative System Diagram

← All diagrams

Find the part on the Fuel Evaporative System diagram for your 2021 Kawasaki TERYX4™ LE, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2021 Kawasaki TERYX4™ LE Fuel Evaporative System Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11057

BRACKET,CANISTER

11057-0609

1
Out of stock

16126

VALVE,SOLENOID

16126-0705

1
Out of stock

16164

CANISTER

16164-0016

1
Out of stock

49019

FILTER-FUEL

49019-0032

1
Out of stock

92005

FITTING,T

92005-0885

1
Out of stock

92015

NUT,FLANGED,6MM

92015-1367

1
Out of stock

92037

CLAMP,TUBE

92037-1461

1
Out of stock

92037A

CLAMP

92037-2113

1
Out of stock

92072

BAND,L=168

92072-1306

1
Out of stock

92075

DAMPER,FUEL FILTER

92075-1853

1
Out of stock

92170

CLAMP

92170-2082

1

$0.83

In stock

92173

CLAMP,TUBE GUIDE

92173-1837

1
Out of stock

92192

TUBE,CANISTER-FUEL FILTER

92192-1737

1
Out of stock

92192A

TUBE,AIR-FUEL FILTER

92192-1738

1
Out of stock

92192B

TUBE,CANISTER-VALVE

92192-1739

1
Out of stock

92192C

TUBE,VALVE-FITTING

92192-1740

1
Out of stock

92192D

TUBE,FITTING-HEAD(FR)

92192-1742

1
Out of stock

92192E

TUBE,FITTING-HEAD(RR)

92192-1743

1
Out of stock

92192F

TUBE,FILTER-FUEL-CANISTER

92192-2258

1
Out of stock

130

BOLT-FLANGED,6X12

130BA0612

1

$1.46

In stock
