2018 Kawasaki TERYX4™ LE Front Bevel Gear Diagram

← All diagrams

Find the part on the Front Bevel Gear diagram for your 2018 Kawasaki TERYX4™ LE, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

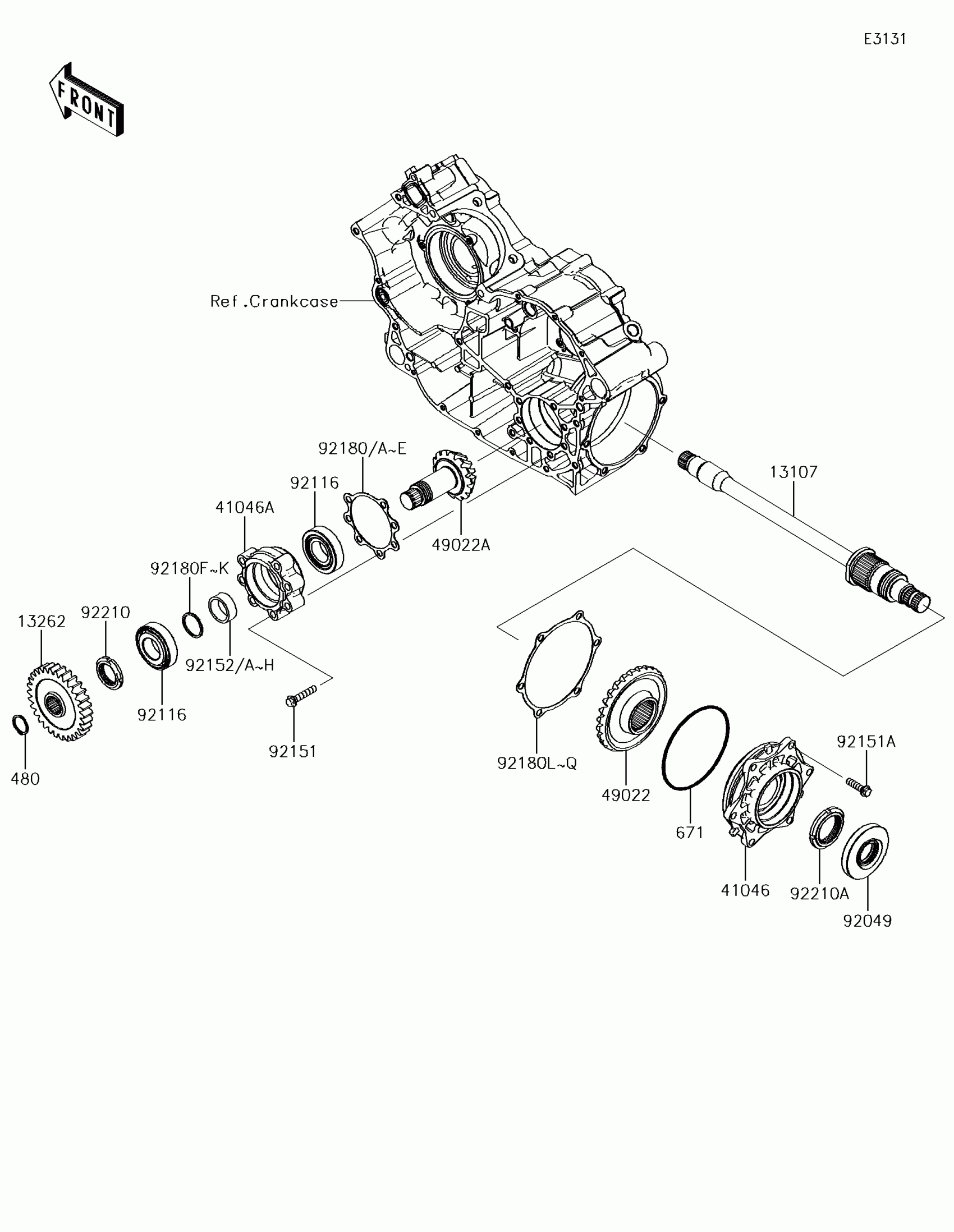

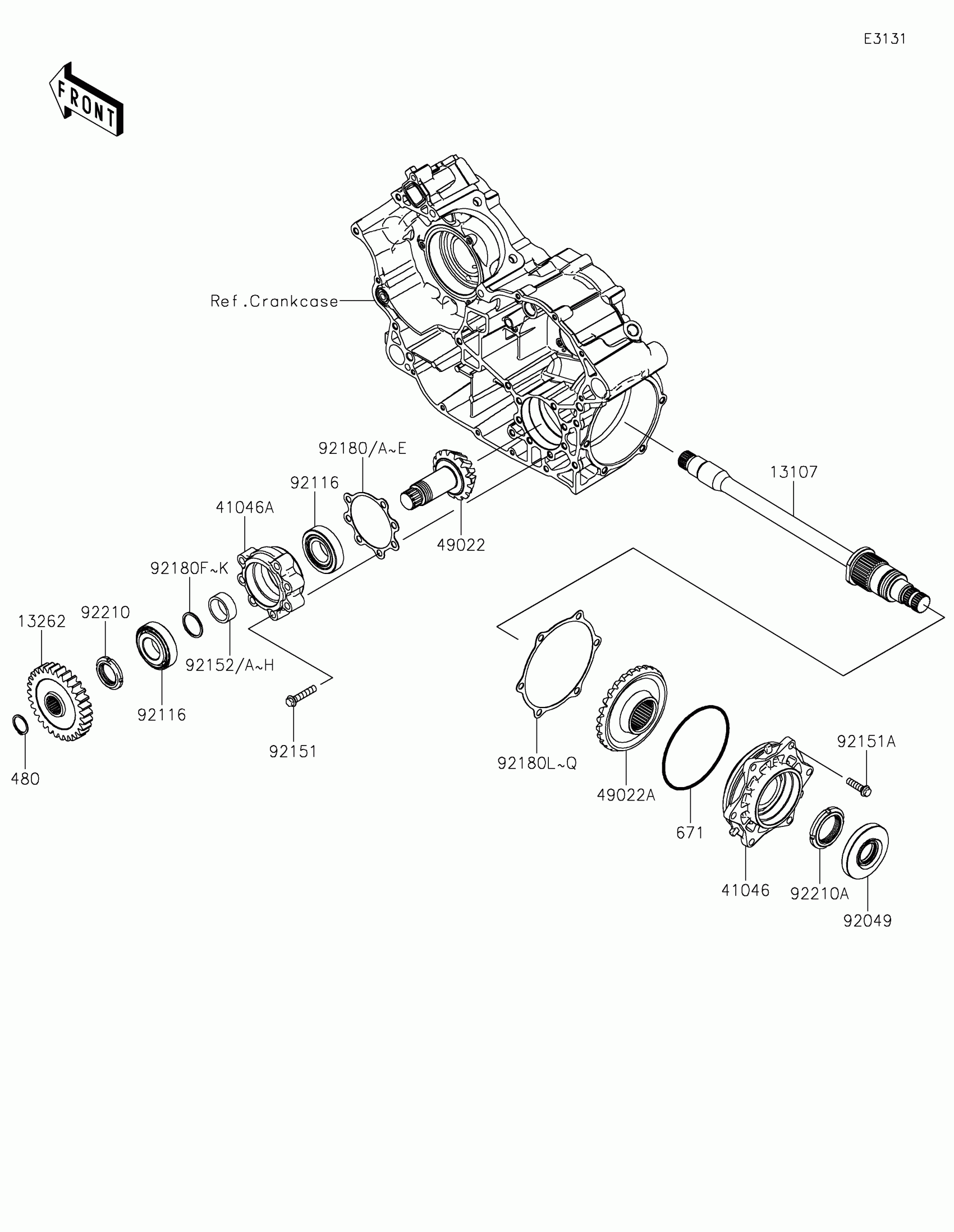

2018 Kawasaki TERYX4™ LE Front Bevel Gear Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13107

SHAFT,OUTPUT

13107-0766

1
Out of stock

13262

GEAR,OUTPUT,30T

13262-1142

1

$130.68

In stock

41046

1

$165.99

In stock

41046A

1

$45.78

In stock

49022

GEAR-BEVEL,DRIVEN,27T

49022-0561

1
Out of stock

49022A

GEAR-BEVEL,PINION,14T

49022-0599

1
Out of stock

92049

SEAL-OIL

92049-0712

1
Out of stock

92116

BEARING-ROLLER,HR30206JUQU42

92116-0568

1
Out of stock

92151

BOLT,8X40

92151-1621

1
Out of stock

92151A

BOLT-FLANGED-SMALL,8X30

92151-1688

1
Out of stock

92152

COLLAR,30.2X37X13.1

92152-0947

—
Out of stock

92152A

COLLAR,30.2X37X13.2

92152-0948

—
Out of stock

92152B

COLLAR,30.2X37X13.3

92152-0949

—
Out of stock

92152C

COLLAR,30.2X37X13.4

92152-0950

—
Out of stock

92152D

COLLAR,30.2X37X13.5

92152-0951

—
Out of stock

92152E

COLLAR,30.2X37X13.6

92152-0952

—
Out of stock

92152F

COLLAR,30.2X37X13.7

92152-0953

1
Out of stock

92152G

COLLAR,30.2X37X13.8

92152-0954

—
Out of stock

92152H

COLLAR,30.2X37X13.9

92152-0955

—
Out of stock

92180

SHIM,DRIVE,T=0.15

92180-0702

—
Out of stock

92180A

SHIM,DRIVE,T=0.20

92180-0703

—
Out of stock

92180B

SHIM,DRIVE,T=0.50

92180-0704

—
Out of stock

92180C

SHIM,DRIVE,T=0.80

92180-0705

—
Out of stock

92180D

SHIM,DRIVE,T=1.0

92180-0706

1
Out of stock

92180E

SHIM,DRIVE,T=1.2

92180-0707

—
Out of stock

92180F

SHIM,DRIVE,T=1.70

92180-0708

—
Out of stock

92180G

SHIM,DRIVE,T=1.72

92180-0709

—
Out of stock

92180H

SHIM,DRIVE,T=1.74

92180-0710

—
Out of stock

92180I

SHIM,DRIVE,T=1.76

92180-0711

—
Out of stock

92180J

SHIM,DRIVE,T=1.78

92180-0712

1
Out of stock

92180K

SHIM,DRIVE,T=1.80

92180-0713

—
Out of stock

92180L

SHIM,DRIVEN,T=0.15

92180-0714

—
Out of stock

92180M

SHIM,DRIVEN,T=0.20

92180-0715

—
Out of stock

92180N

SHIM,DRIVEN,T=0.50

92180-0716

—
Out of stock

92180O

SHIM,DRIVEN,T=0.80

92180-0717

—
Out of stock

92180P

SHIM,DRIVEN,T=1.0

92180-0718

1
Out of stock

92180Q

SHIM,DRIVEN,T=1.2

92180-0719

—
Out of stock

92210

NUT,30MM

92210-0762

1
Out of stock

92210A

NUT,40MM

92210-0795

1
Out of stock

480

CIRCLIP-TYPE-C,24MM

480J2400

1
Out of stock

671

O RING,115MM

671D25115

1
Out of stock
