2018 Kawasaki TERYX4™ LE Drive Shaft-Front Diagram

← All diagrams

Find the part on the Drive Shaft-Front diagram for your 2018 Kawasaki TERYX4™ LE, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

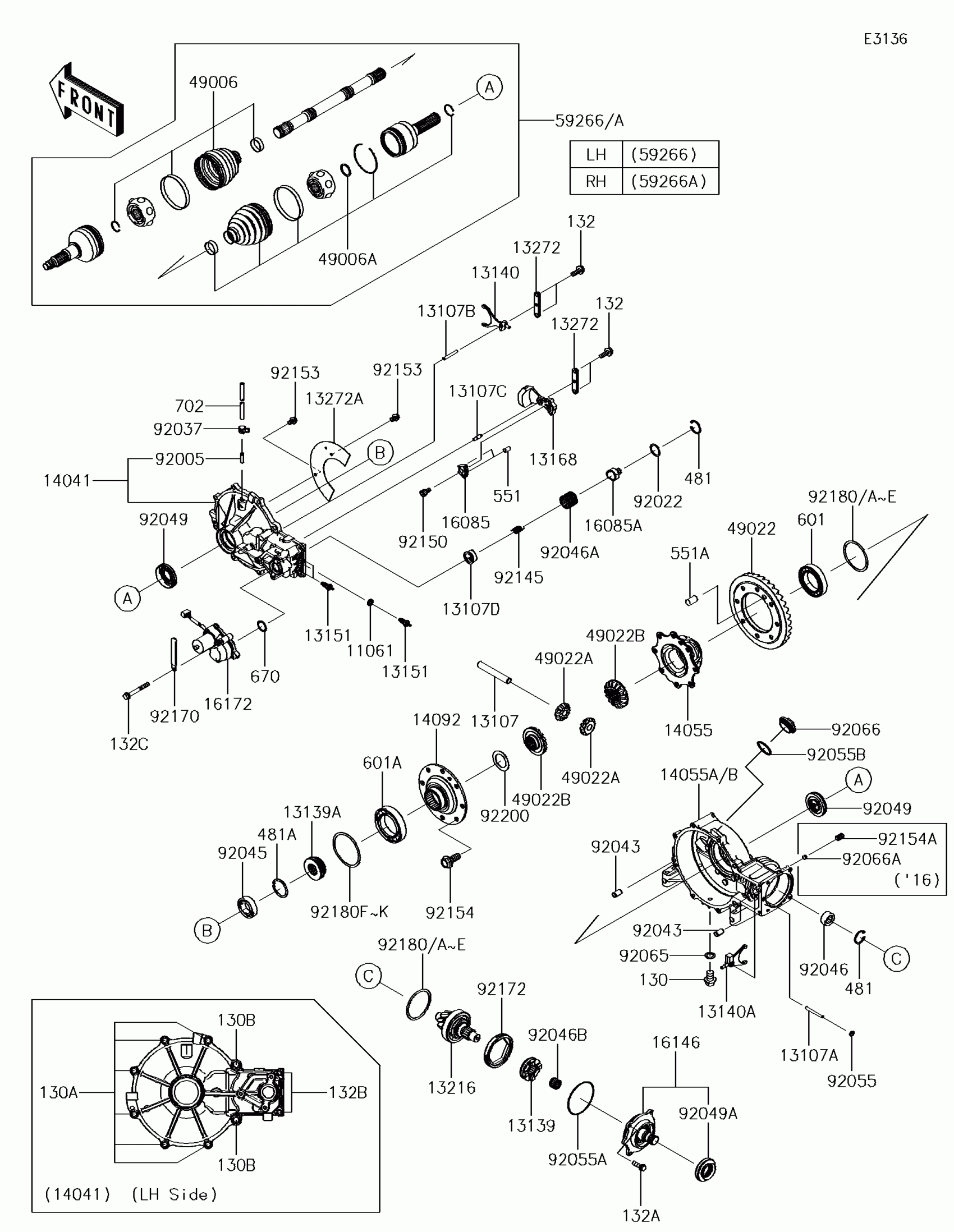

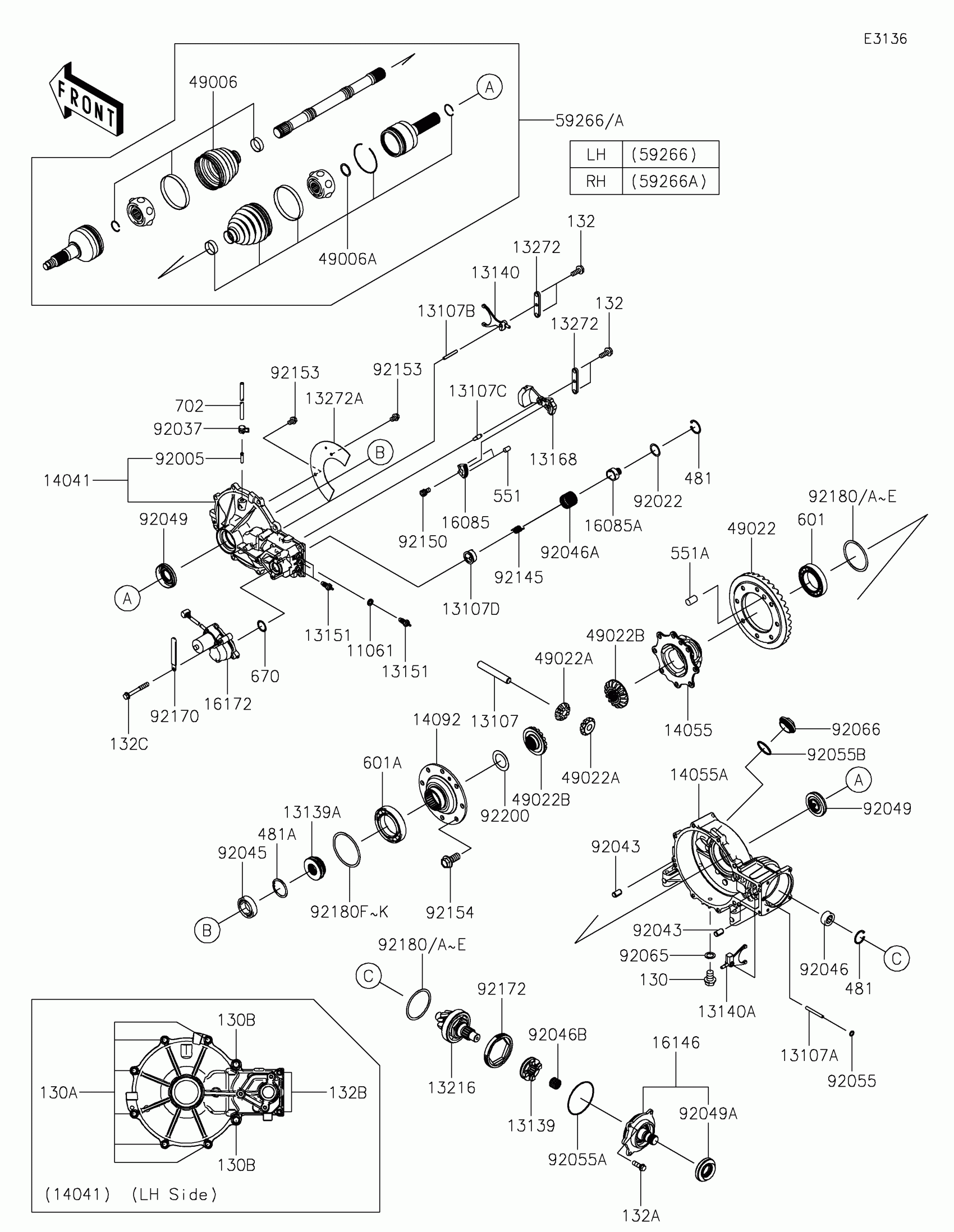

2018 Kawasaki TERYX4™ LE Drive Shaft-Front Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11061

GASKET,10.5X16X3

11061-0805

1
Out of stock

13107

SHAFT,CROSS

13107-0758

1
Out of stock

13107A

SHAFT,6X55

13107-0759

1
Out of stock

13107B

SHAFT,DIFF LOCK

13107-0768

1
Out of stock

13107C

SHAFT

13107-0775

1
Out of stock

13107D

SHAFT,ACTUATOR OUTPUT

13107-0776

1
Out of stock

13139

SHIFTER

13139-0017

1
Out of stock

13139A

SHIFTER,DIFF LOCK

13139-0018

1
Out of stock

13140

FORK-SHIFT

13140-0070

1
Out of stock

13140A

FORK-SHIFT

13140-0635

1
Out of stock

13151

SWITCH-COMP

13151-1086

1
Out of stock

13168

LEVER

13168-0731

1
Out of stock

13216

GEAR-COMP,BEVEL,8T

13216-0884

1
Out of stock

13272

PLATE

13272-0985

1

$13.86

In stock

13272A

PLATE

13272-0986

1

$5.25

In stock

14041

COVER-COMP,LH

14041-0575

1

$116.62

In stock

14055

1

$230.73

In stock

14055B

CASE-GEAR,RH

14055-0625

1

$226.37

In stock

14092

COVER,CROSS SHAFT CASE

14092-1042

1
Out of stock

16085

GEAR,65T

16085-0605

1
Out of stock

16085A

GEAR,13T

16085-0614

1
Out of stock

16146

COVER-ASSY,INPUT SHAFT

16146-0740

1
Out of stock

16172

ACTUATOR

16172-0038

1
Out of stock

49006

BOOT,OUTSIDE

49006-0563

1
Out of stock

49006A

BOOT,INSIDE

49006-0578

1
Out of stock

49022

GEAR-BEVEL,35T

49022-0067

1
Out of stock

49022A

GEAR-BEVEL,10T

49022-0579

1
Out of stock

49022B

GEAR-BEVEL,16T

49022-0580

1
Out of stock

59266

JOINT-BALL,LH

59266-0047

1
Out of stock

59266A

JOINT-BALL,RH

59266-0048

1
Out of stock

92005

FITTING

92005-1142

1
Out of stock

92022

WASHER,25.3X32X0.5

92022-225

1
Out of stock

92037

CLAMP,TUBE

92037-1461

1
Out of stock

92043

PIN,6.2X8X14

92043-1263

1
Out of stock

92045

BEARING-BALL,60/28

92045-1176

1
Out of stock

92046

BEARING-NEEDLE,AJ501907

92046-0025

1
Out of stock

92046A

BEARING-NEEDLE

92046-0050

1
Out of stock

92046B

BEARING-NEEDLE

92046-1234

1
Out of stock

92049

SEAL-OIL,28X60X7

92049-0089

1
Out of stock

92049A

SEAL-OIL

92049-0160

1
Out of stock

92055

RING-O,7.5X1.5

92055-0756

1
Out of stock

92055A

"O" RING

92055-081

1
Out of stock

92055B

RING-O,35.8MM

92055-1281

1
Out of stock

92065

GASKET,10.5X16X1

92065-058

1
Out of stock

92066

PLUG,36X7.5

92066-0744

1
Out of stock

92145

SPRING

92145-0975

1
Out of stock

92150

BOLT,SOCKET,6X10

92150-1650

1
Out of stock

92153

BOLT,FLANGED-SMALL,6X8

92153-0964

1
Out of stock

92154

BOLT,FLANGED,10X23

92154-0550

1
Out of stock

92170

CLAMP

92170-1925

1

$1.98

In stock

92172

SCREW,SET,85X11.5

92172-1122

1
Out of stock

92180

SHIM,70X80X0.15

92180-0972

—
Out of stock

92180A

SHIM,70X80X0.2

92180-0973

—
Out of stock

92180B

SHIM,70X80X0.5

92180-0974

—
Out of stock

92180C

SHIM,70X80X0.8

92180-0975

—
Out of stock

92180D

SHIM,70X80X1.0

92180-0976

—
Out of stock

92180E

SHIM,70X80X1.2

92180-0977

—
Out of stock

92180F

SHIM,80X90X0.15

92180-0978

—
Out of stock

92180G

SHIM,80X90X0.2

92180-0979

—
Out of stock

92180H

SHIM,80X90X0.5

92180-0980

—
Out of stock

92180I

SHIM,80X90X0.8

92180-0981

—
Out of stock

92180J

SHIM,80X90X1.0

92180-0982

—
Out of stock

92180K

SHIM,80X90X1.2

92180-0983

—
Out of stock

92200

WASHER

92200-1077

1
Out of stock

130

BOLT-FLANGED,10X14

130BA1014

1

$4.24

In stock

130A

BOLT-FLANGED,8X25

130CA0825

1

$1.31

In stock

130B

BOLT-FLANGED,10X30

130CA1030

1

$1.93

In stock

132

1

$1.21

In stock

132A

1

$3.24

In stock

132B

1

$2.29

In stock

132C

1

$3.53

In stock

481

CIRCLIP-TYPE-C,32MM

481J3200

1
Out of stock

481A

CIRCLIP-TYPE-C,52MM

481J5200

1
Out of stock

551

PIN-DOWEL,4X10

551A0410

1
Out of stock

551A

PIN-DOWEL

551A1016

1
Out of stock

601

BEARING-BALL

601B6010

1
Out of stock

601A

BEARING-BALL

601B6011

1
Out of stock

670

O RING

670D3022

1
Out of stock

702

TUBE-RUBBER,5X8X930

702A05930

1
Out of stock
