Description

Price

13272A

PLATE

13272-2064

$13.22

13272B

PLATE,FRONT,T.BLACK

13272-2232-388

$34.36

39043

CROSSMEMBER-COMP,UPP,RR,T.BLK

39043-0009-388

$110.29

39043A

CROSSMEMBER-COMP,UPP,FR,T.BLK

39043-0010-388

$110.29

39043B

CROSSMEMBER-COMP,UPP,T.BLACK

39043-0011-388

$110.29

39043C

CROSSMEMBER-COMP,LWR,T.BLACK

39043-0012-388

$110.29

39043D

CROSSMEMBER-COMP,CNT,LWR,T.BLK

39043-0325-388

$110.29

39156

PAD,SHOULDER

39156-0939

$20.04

55020

GUARD,SKID,FR

55020-0723

$34.28

55020A

GUARD,FR FRAME

55020-0741

$30.31

55020B

GUARD,SKID,RR

55020-0812

$59.85

55020C

GUARD,SKID,FR MIDDLE

55020-0890

$131.59

55020D

GUARD,FRONT,T.BLACK

55020-1859-388

$253.43

55020E

GUARD,SKID,CNT

55020-1884

$114.43

55020F

GUARD

55020-1951

$28.81

55047

BAR-COMP,B-PILLAR,LH,T.BLACK

55047-0357-388

$85.17

55047A

BAR-COMP,B-PILLAR,RH,T.BLACK

55047-0358-388

$85.17

55047B

BAR-COMP,A-PILLAR,LH,T.BLACK

55047-0368-388

$125.41

55047C

BAR-COMP,A-PILLAR,RH,T.BLACK

55047-0369-388

$125.41

55047D

BAR-COMP,C-PILLAR,LH,T.BLACK

55047-0370-388

$113.21

55047E

BAR-COMP,C-PILLAR,RH,T.BLACK

55047-0371-388

$113.21

92022

WASHER,8.5X20X1.6,BLACK

92022-1317

$4.31

92066

PLUG,42MM

92066-0830

$1.81

92152

COLLAR

92152-0784

$2.12

92154

BOLT,FLANGED,6X16

92154-0887

$1.63

92161

DAMPER,32X270X3

92161-1597

$5.28

92161A

DAMPER,32X140X3

92161-1598

$3.55

92161B

DAMPER,32X390X3

92161-1599

$5.54

92172

SCREW,6X16

92172-0826

$2.26

92172A

SCREW,TAPPING,6X16

92172-0869

$1.48

92200

WASHER,10.2X23X2.5

92200-7506

$3.90

92210

NUT,12MM

92210-0603

$8.98

130

BOLT-FLANGED,6X12

130BA0612

$1.72

130A

BOLT-FLANGED,6X14

130BA0614

$1.20

130B

BOLT-FLANGED,10X16

130BA1016

$4.76

130C

BOLT-FLANGED,8X16

130BB0816

$1.71

130D

BOLT-FLANGED,12X55

130BB1255

$4.24

130E

BOLT-FLANGED,12X65

130BB1265

$7.91

130F

BOLT-FLANGED,10X14

130CB1014

$3.39

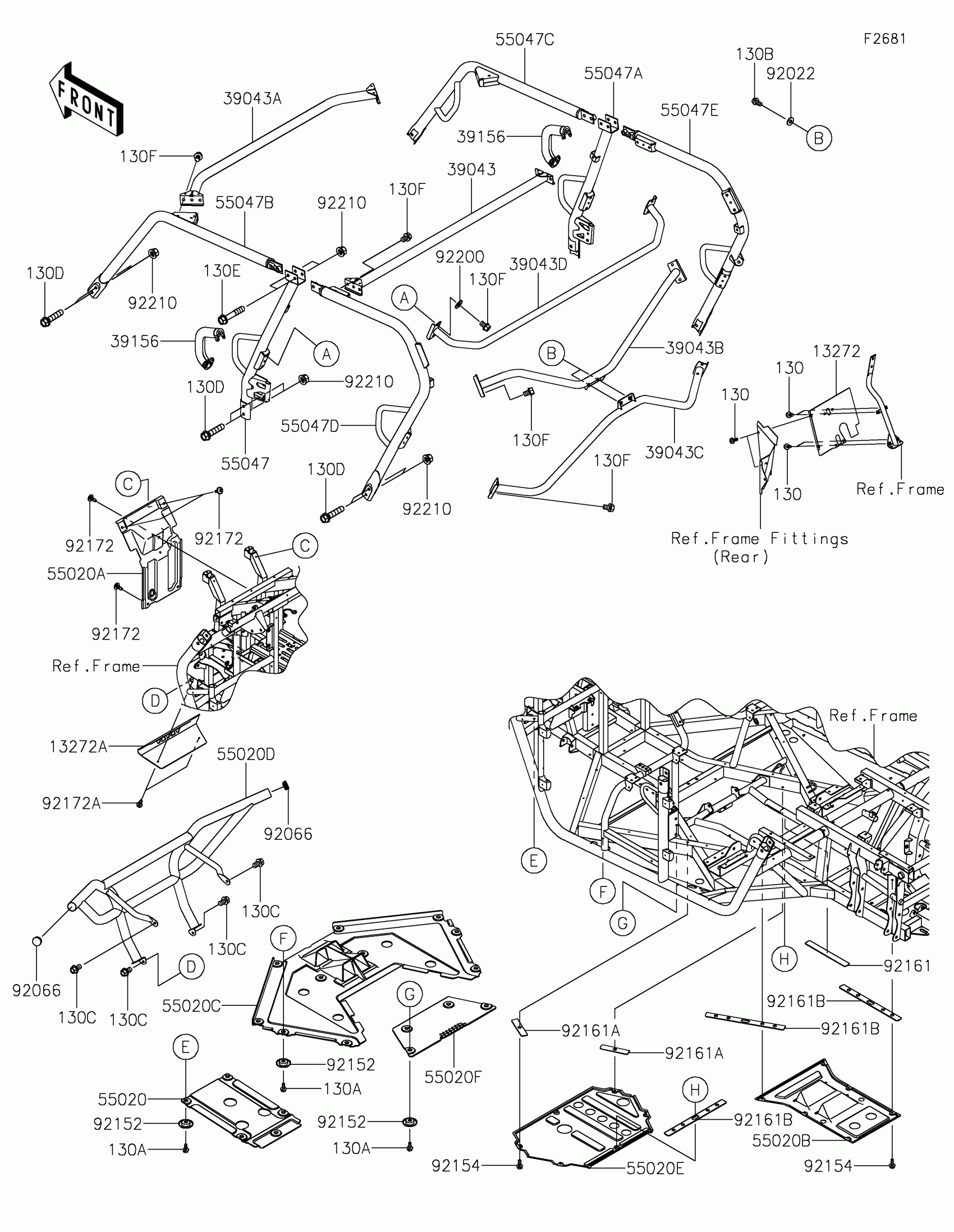

Kawasaki TERYX4™ Guards/Cab Frame Diagram

PLATE

PLATE,FRONT,T.BLACK

CROSSMEMBER-COMP,UPP,RR,T.BLK

CROSSMEMBER-COMP,UPP,FR,T.BLK

CROSSMEMBER-COMP,UPP,T.BLACK

CROSSMEMBER-COMP,LWR,T.BLACK

CROSSMEMBER-COMP,CNT,LWR,T.BLK

PAD,SHOULDER

GUARD,SKID,FR

GUARD,FR FRAME

GUARD,SKID,RR

GUARD,SKID,FR MIDDLE

GUARD,FRONT,T.BLACK

GUARD,SKID,CNT

GUARD

BAR-COMP,B-PILLAR,LH,T.BLACK

BAR-COMP,B-PILLAR,RH,T.BLACK

BAR-COMP,A-PILLAR,LH,T.BLACK

BAR-COMP,A-PILLAR,RH,T.BLACK

BAR-COMP,C-PILLAR,LH,T.BLACK

BAR-COMP,C-PILLAR,RH,T.BLACK

WASHER,8.5X20X1.6,BLACK

PLUG,42MM

COLLAR

BOLT,FLANGED,6X16

DAMPER,32X270X3

DAMPER,32X140X3

DAMPER,32X390X3

SCREW,6X16

SCREW,TAPPING,6X16

WASHER,10.2X23X2.5

NUT,12MM

BOLT-FLANGED,6X12

BOLT-FLANGED,6X14

BOLT-FLANGED,10X16

BOLT-FLANGED,8X16

BOLT-FLANGED,12X55

BOLT-FLANGED,12X65

BOLT-FLANGED,10X14
