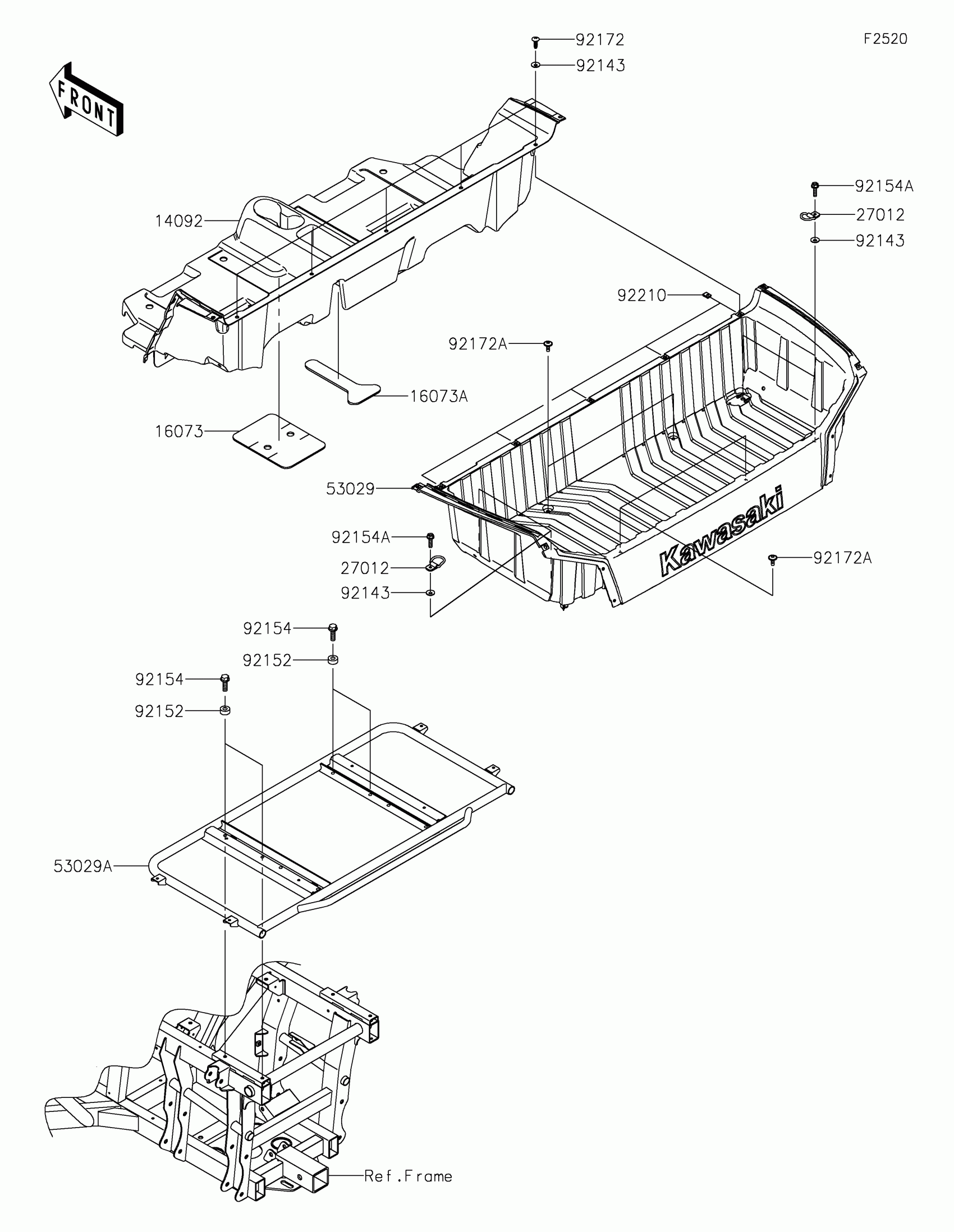

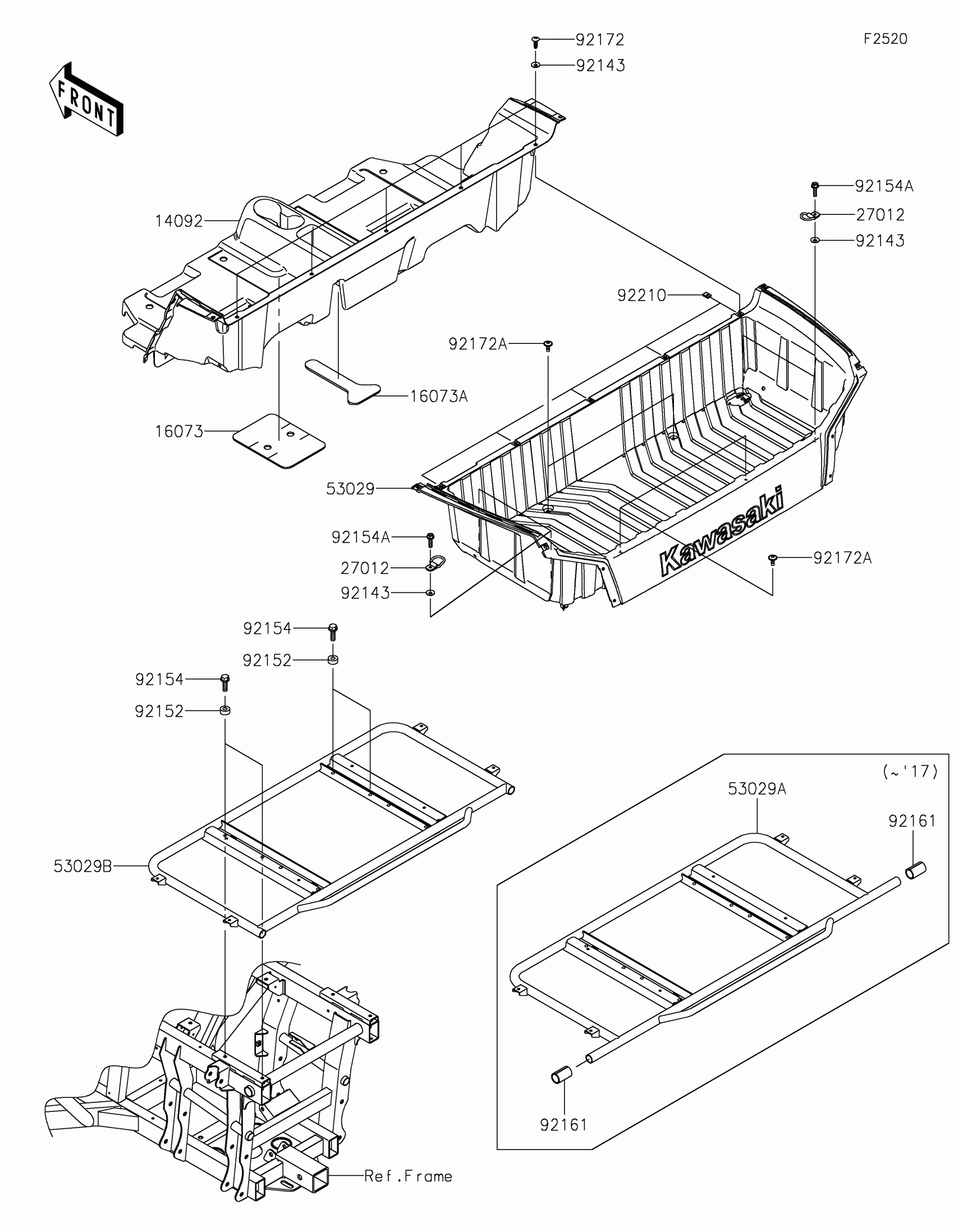

Kawasaki TERYX4™ Carrier(s) Diagram

Description

Price

14092

COVER,RR CONSOLE

14092-1057

$143.26

16073

INSULATOR,CENTER CONSOLE

16073-0803

$18.15

16073A

INSULATOR

16073-0842

$15.97

27012

HOOK

27012-0783

$2.32

53029

CARRIER

53029-0309

$242.44

53029A

CARRIER

53029-0352

$249.13

92143

COLLAR

92143-1087

$4.31

92152

COLLAR,8.2X18X8

92152-1553

$5.90

92154

BOLT,FLANGED,8X25

92154-1302

$3.63

92154A

BOLT,FLANGED,6X22

92154-1356

$1.48

92172

SCREW,TAPPING,6X20

92172-0488

$3.02

92172A

SCREW,6X16

92172-0711

$3.02

92210

NUT,LEAF SPRING,6MM

92210-0624

$2.32
