Description

Price

11065

CAP

11065-0072

$7.20

14091

COVER,THROTTLE LINK

14091-1731

$22.78

16163

THROTTLE-ASSY,36EIS

16163-0790

$1,014.69

21176

SENSOR,PRESSURE

21176-0111

$222.28

49033

NOZZLE-INJECTION

49033-0011

$92.32

49056

PIPE-INJECTION

49056-0033

Unavailable

49116

VALVE-ASSY,ISC

49116-0021

$197.51

92009

SCREW,6X12

92009-1480

$3.21

92022

WASHER,5.2X13X1

92022-1380

$4.31

92037

CLAMP,TUBE

92037-1124

$6.11

92037A

CLAMP,L=45

92037-1539

$5.00

92055

RING-O,INJECTION NOZZLE

92055-1622

$1.95

92055A

RING-O,AIR SCREW

92055-1658

$6.00

92093

SEAL

92093-0082

$5.94

92093A

SEAL

92093-0127

$10.56

92144

SPRING,THROTTLE STOP SCREW

92144-1674

$5.74

92172

SCREW

92172-0156

$15.20

92191

TUBE,3.2X7.4X70

92191-1552

$4.14

92192

TUBE,ISC-CHAMBER

92192-0948

$12.80

92192A

TUBE,ISC-THROTTLE RR

92192-1211

$7.25

92192B

TUBE,ISC-THROTTLE FR

92192-1212

$10.62

92200

WASHER,PILOT AIR SCREW

92200-1564

$2.58

220

SCREW-PAN-CROS,4X8

220AA0408

$0.68

220A

SCREW-PAN-CROS,5X16

220AA0516

$2.06

220B

SCREW-PAN-CROS,6X12

220AA0612

$1.19

220C

SCREW-PAN-CROSS,6X14

220AA0614

$1.48

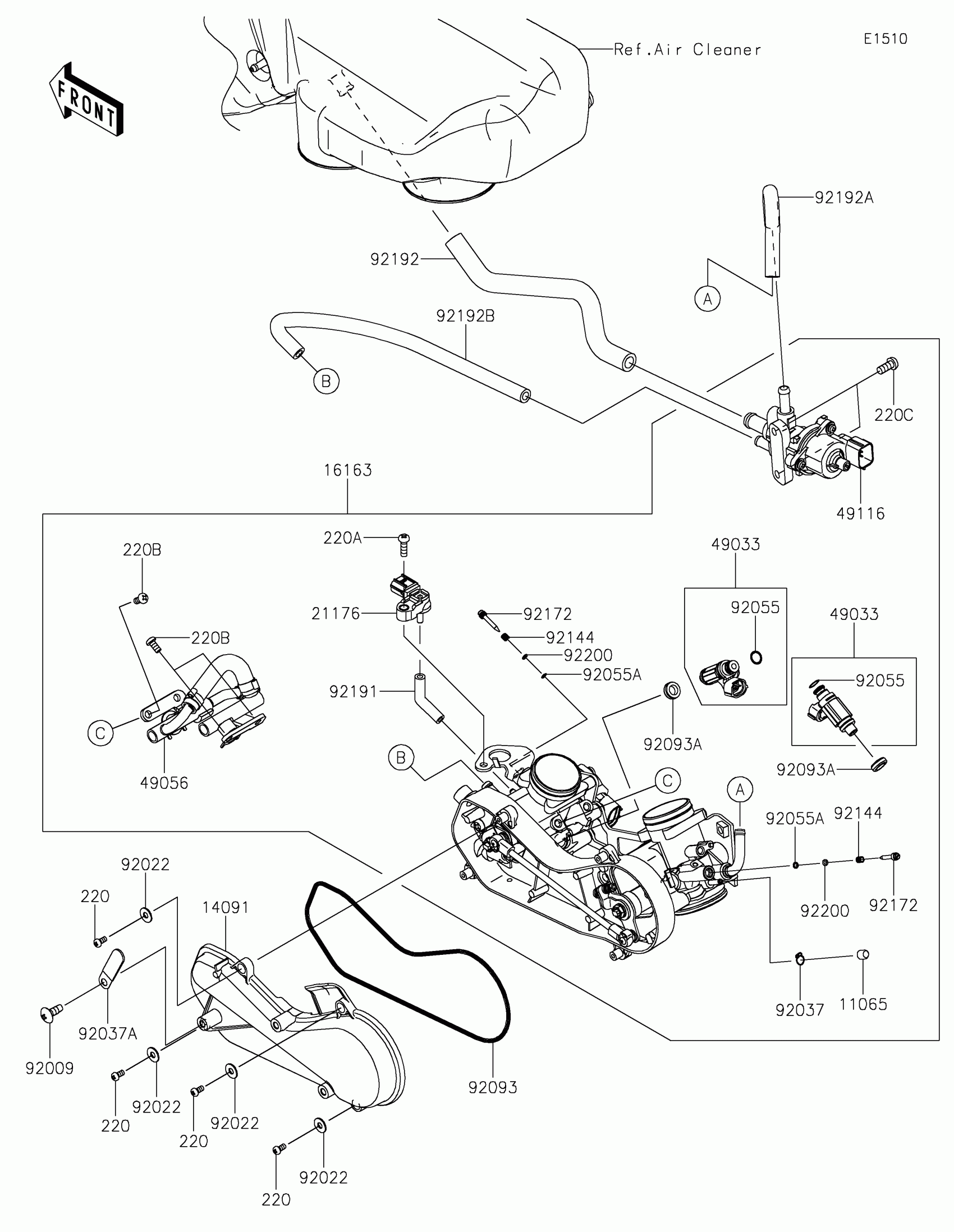

Kawasaki TERYX4™ CAMO Throttle Diagram

CAP

COVER,THROTTLE LINK

THROTTLE-ASSY,36EIS

SENSOR,PRESSURE

NOZZLE-INJECTION

PIPE-INJECTION

VALVE-ASSY,ISC

SCREW,6X12

WASHER,5.2X13X1

CLAMP,TUBE

CLAMP,L=45

RING-O,INJECTION NOZZLE

RING-O,AIR SCREW

SEAL

SEAL

SPRING,THROTTLE STOP SCREW

SCREW

TUBE,3.2X7.4X70

TUBE,ISC-CHAMBER

TUBE,ISC-THROTTLE RR

TUBE,ISC-THROTTLE FR

WASHER,PILOT AIR SCREW

SCREW-PAN-CROS,4X8

SCREW-PAN-CROS,5X16

SCREW-PAN-CROS,6X12

SCREW-PAN-CROSS,6X14
