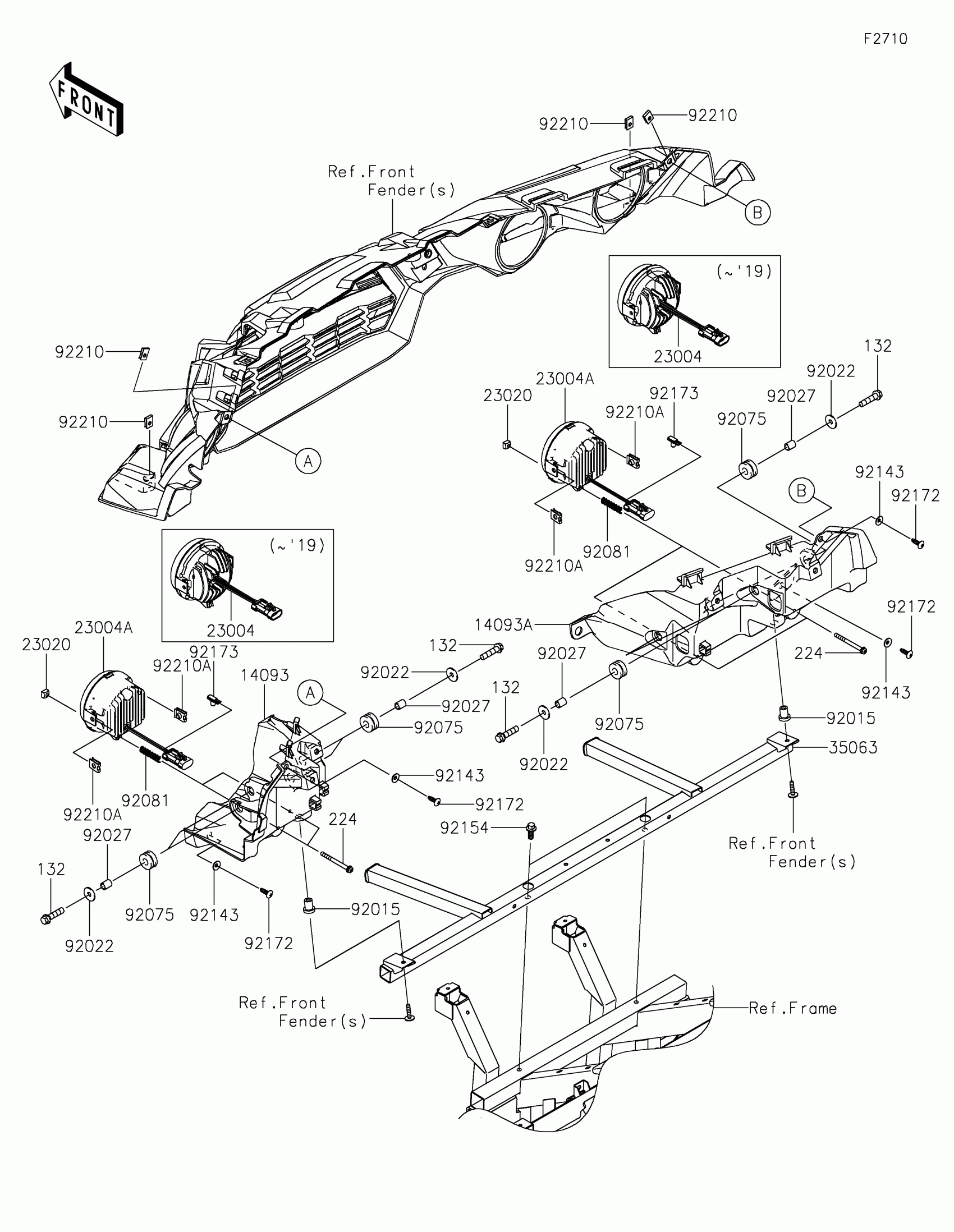

Kawasaki TERYX4™ CAMO Headlight(s) Diagram

Description

Price

14093

COVER,HEADLIGHT,LH

14093-0207

$21.26

14093A

COVER,HEADLIGHT,RH

14093-0208

$21.26

23004

LAMP-HEAD,LED

23004-0341

$205.66

23004A

LAMP-HEAD

23004-0370

$143.51

23020

NUT,4MM,FOCUS ADJUST

23020-018

$4.65

35063

STAY,HEADLAMP

35063-1405

$89.77

92015

NUT,RUBBER,6MM

92015-1692

$7.34

92022

WASHER,6.5X20X1.6

92022-125

$1.40

92027

COLLAR,6.8X10X12

92027-162

$6.57

92075

DAMPER,10X24X12

92075-1690

$5.00

92081

SPRING,FOCUS ADJUST

92081-1896

$5.25

92143

COLLAR

92143-1087

$4.31

92154

BOLT,FLANGED,8X20

92154-1226

$1.02

92172

SCREW,TAPPING,6X20

92172-0488

$3.02

92173

CLAMP

92173-1491

$0.82

92210

NUT,LEAF SPRING,6MM

92210-0624

$2.32

92210A

NUT

92210-1125

$4.76

132

BOLT-FLANGED-SMALL,6X25

132BA0625

$2.80

224

SCREW-PAN-WP-CROS,4X45

224AA0445

$1.81
