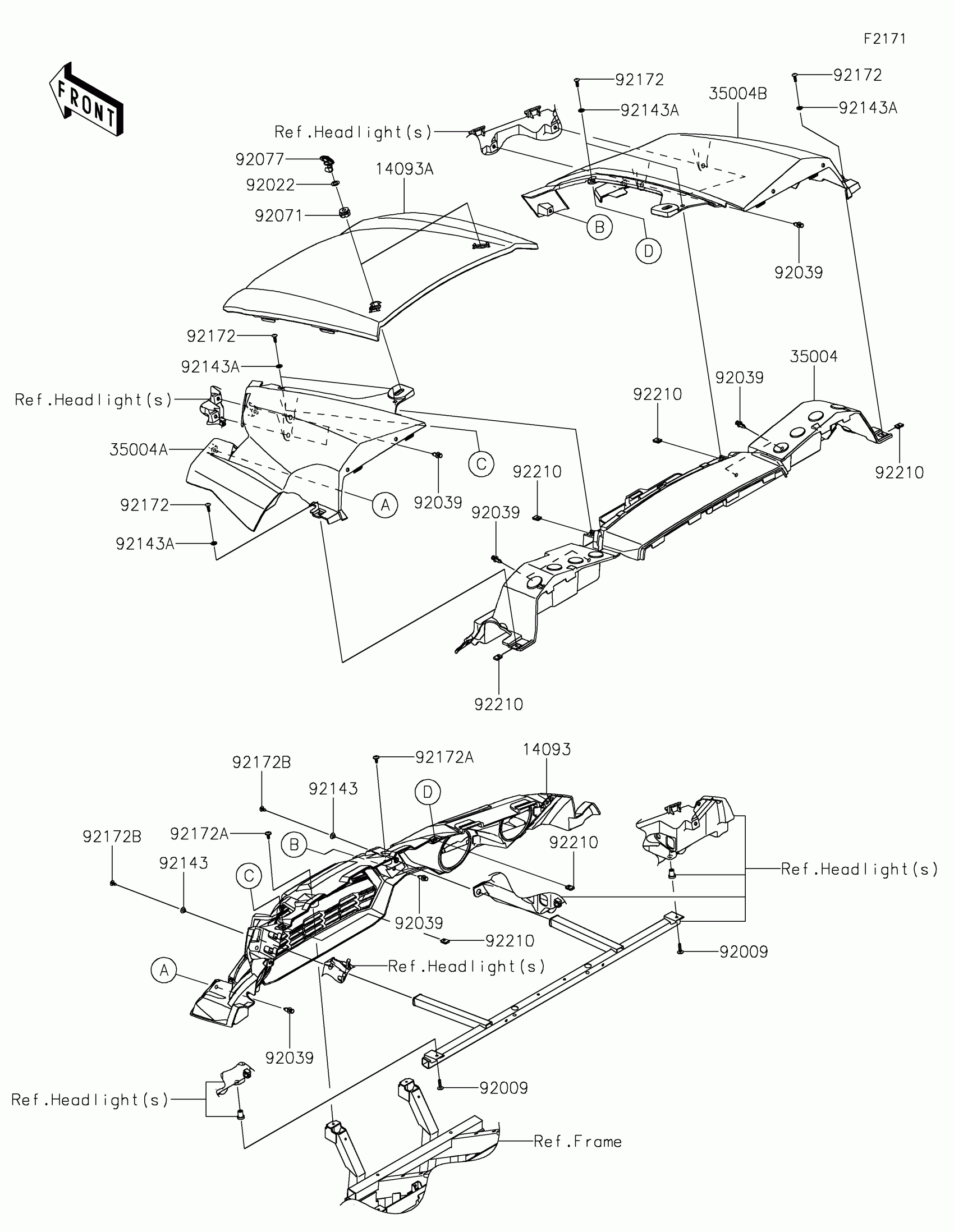

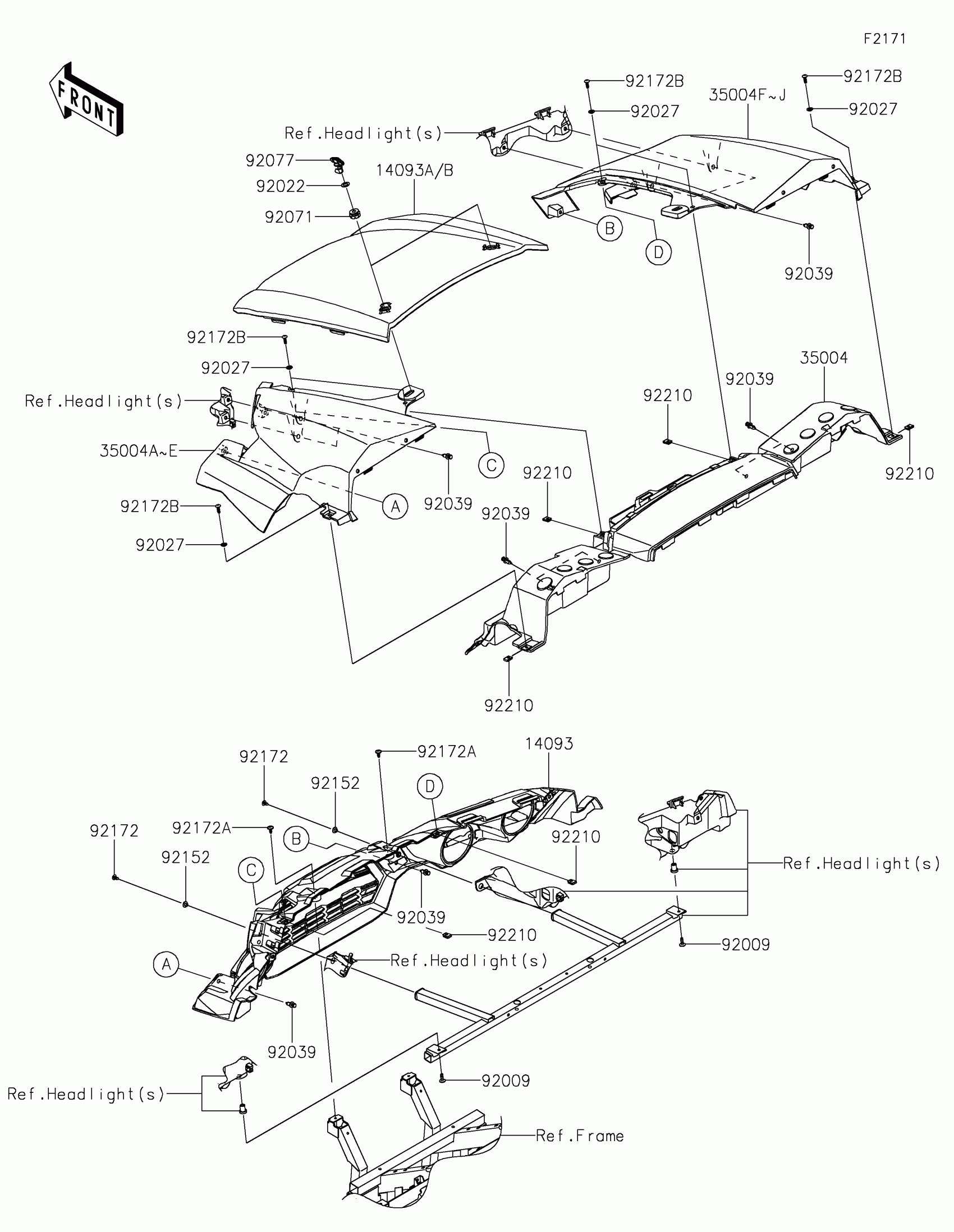

Kawasaki TERYX4™ CAMO Front Fender(s) Diagram

Description

Price

14093

COVER,FR GRILL

14093-0202

$203.24

14093A

COVER,HOOD,CAMOUFLAGE

14093-0211-42H

$265.04

35004

FENDER-FRONT,RR

35004-0345

$58.75

35004A

FENDER-FRONT,LH,CAMOUFLAGE

35004-0346-42H

$243.71

35004B

FENDER-FRONT,RH,CAMOUFLAGE

35004-0347-42H

$243.71

92009

SCREW,6X25

92009-1465

$3.92

92022

WASHER,12.5X22X1.2

92022-072

$3.92

92039

RIVET

92039-0776

$1.19

92071

GROMMET

92071-0746

$1.16

92077

KNOB

92077-0033

$3.04

92143

COLLAR

92143-1057

$5.00

92143A

COLLAR

92143-1087

$4.31

92172

SCREW,TAPPING,6X20

92172-0488

$3.02

92172A

SCREW,6X16

92172-0711

$3.02

92172B

SCREW,TAPPING,6X16

92172-0739

$0.85

92210

NUT,LEAF SPRING,6MM

92210-0624

$2.32
