Frame Fittings(Rear)

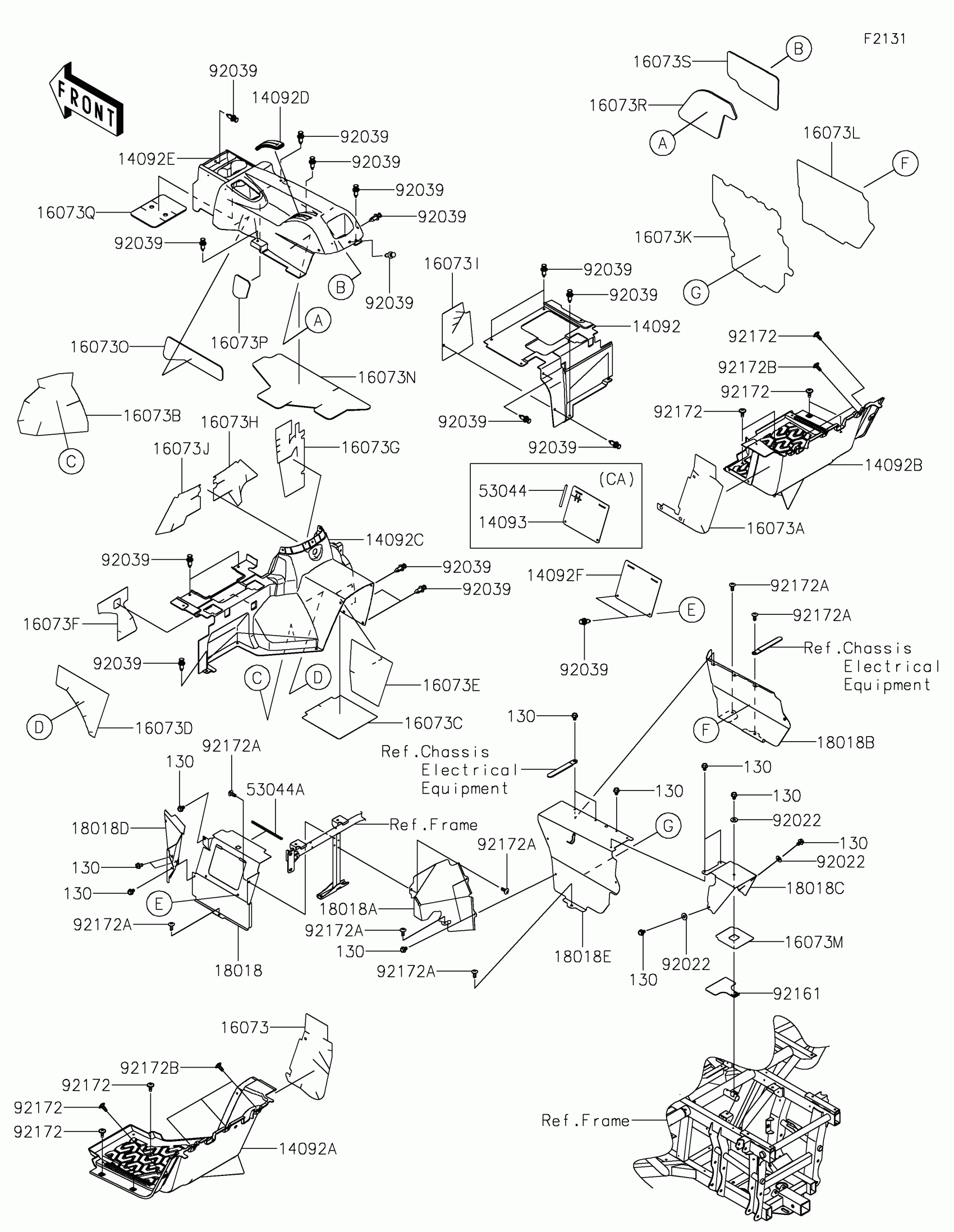

Kawasaki TERYX4™ CAMO Frame Fittings(Rear) Diagram
#
14092
COVER,FR SEAT,RR,RH
14092-0714
$26.15
14092A
COVER,RR FLOOR,LH
14092-0718
$53.20
14092B
COVER,RR FLOOR,RH
14092-0719
$53.20
14092C
COVER,FR SEAT,RR,LH
14092-0722
$64.63
14092D
COVER,CENTER CONSOLE,TOP
14092-0791
$6.92
14092E
COVER,CENTER CONSOLE
14092-1056
$81.44
16073
INSULATOR,RR FLOOR,LH
16073-0726
$10.88
16073A
INSULATOR,RR FLOOR,RH
16073-0727
$16.72
16073B
INSULATOR,FR SEAT,RR
16073-0728
$10.37
16073C
INSULATOR,FR SEAT,RR
16073-0733
$7.94
16073D
INSULATOR,FR SEAT,RR
16073-0734
$8.58
16073E
INSULATOR,FR SEAT,RR
16073-0735
$8.22
16073F
INSULATOR,FR SEAT,RR
16073-0740
$8.08
16073G
INSULATOR,FR SEAT,RR
16073-0741
$8.22
16073H
INSULATOR,FR SEAT,RR
16073-0742
$11.20
16073I
INSULATOR,FR SEAT,RR
16073-0744
$6.93
16073J
INSULATOR,FR SEAT,RR
16073-0749
$11.20
16073K
INSULATOR,RR TUNNEL,LH
16073-0795
$20.48
16073L
INSULATOR,RR TUNNEL,RH
16073-0796
$12.92
16073M
INSULATOR,RR TUNNEL,RR
16073-0797
$2.55
16073N
INSULATOR,CENTER CONSOLE
16073-0800
$81.03
16073O
INSULATOR,CENTER CONSOLE
16073-0801
$27.73
16073P
INSULATOR,CENTER CONSOLE
16073-0802
$13.60
16073Q
INSULATOR,CENTER CONSOLE
16073-0803
$18.15
16073R
INSULATOR,CENTER CONSOLE
16073-0804
$56.12
16073S
INSULATOR,CENTER CONSOLE
16073-0805
$47.23
18018
PLATE-HEAT GUARD,LH UD SEAT,FR
18018-0042
$67.06
18018A
PLATE-HEAT GUARD,LH UD SEAT,RR
18018-0043
$83.08
18018B
PLATE-HEAT GUARD,RR TUNNEL,RH
18018-0045
$58.91
18018C
PLATE-HEAT GUARD,RR TUNNEL,RR
18018-0047
$14.68
18018D
PLATE-HEAT GUARD,DRIVER
18018-0596
$57.64
18018E
PLATE-HEAT GUARD,RR TUNNEL,LH
18018-0599
$71.93
53044A
TRIM,L=200
53044-0573
$8.30
92022
WASHER
92022-2247
$0.62
92039
RIVET
92039-0776
$1.19
92161
DAMPER,RR TUNNEL
92161-1577
$3.76
92172
SCREW,6X16
92172-0711
$3.02
92172A
SCREW,TAPPING,6X16
92172-0739
$0.85
92172B
SCREW,6X16
92172-0826
$2.26
130
BOLT-FLANGED,6X10
130AA0610
$0.49
