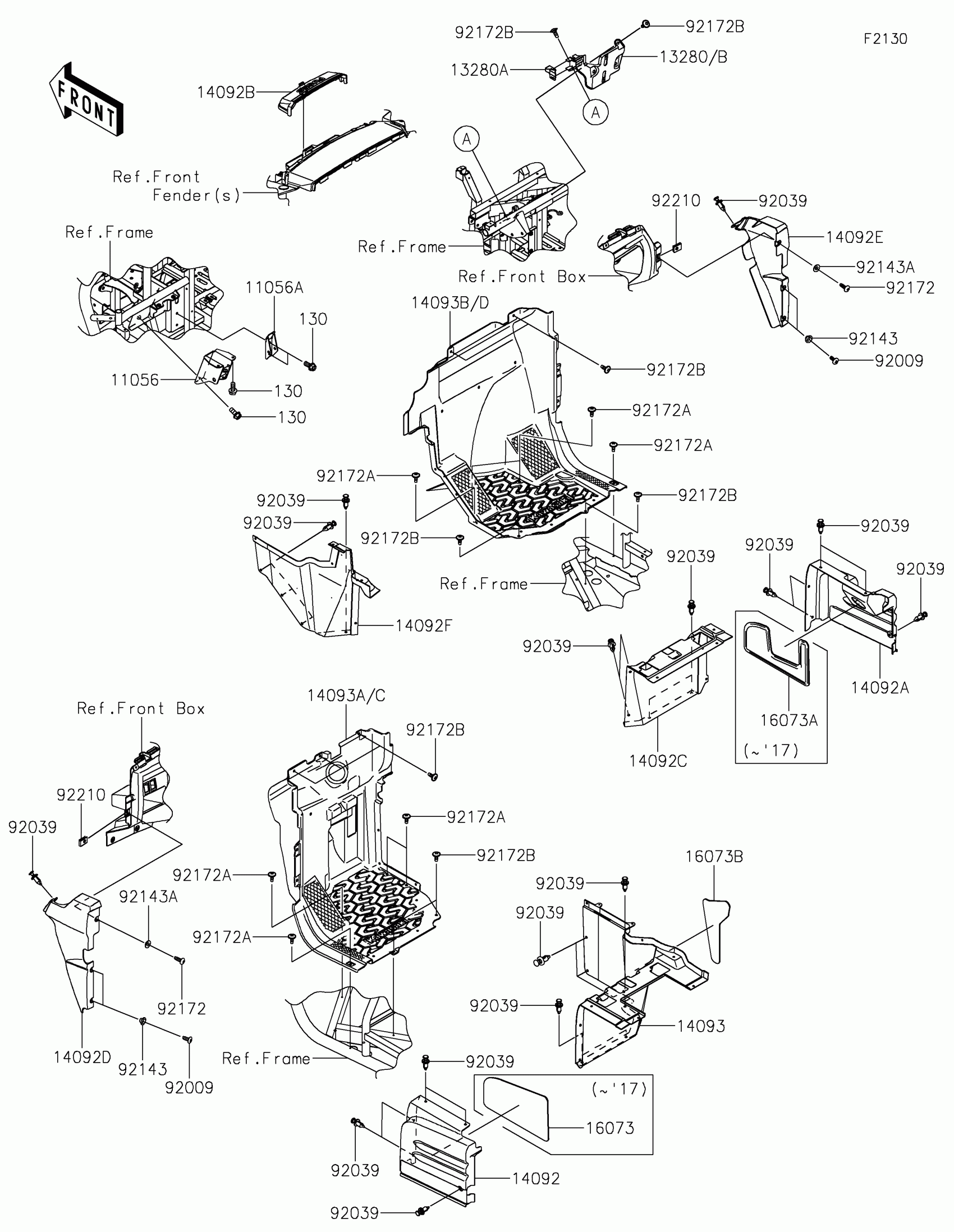

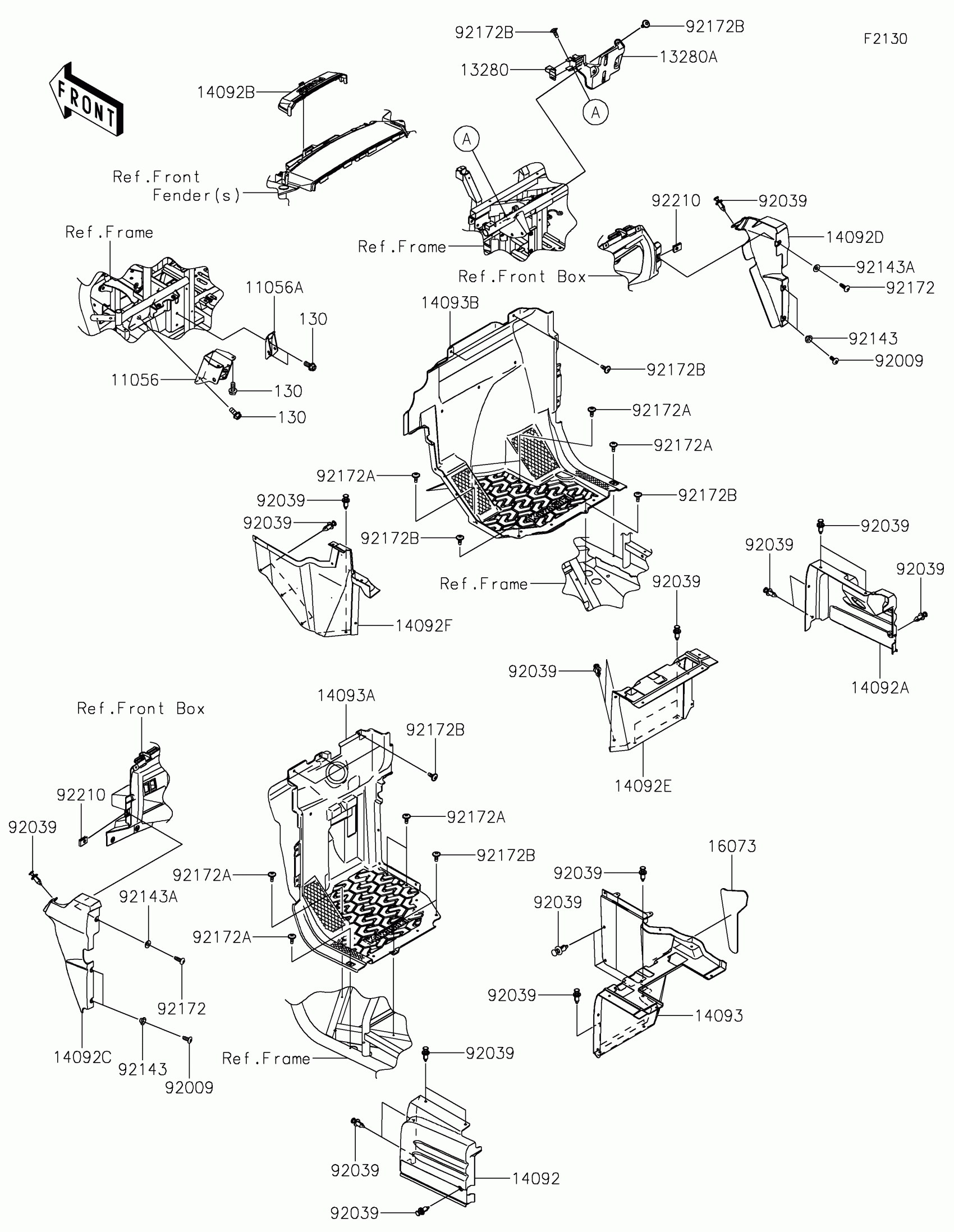

Kawasaki TERYX4™ CAMO Frame Fittings(Front) Diagram

Description

Price

11056

BRACKET,BRAKE PEDAL

11056-1431

$57.94

11056A

BRACKET,THROTTLE PEDAL

11056-4408

$11.46

13280A

HOLDER

13280-0851

$1.84

13280B

HOLDER,ECU

13280-0868

$6.96

14092

COVER,SEAT SIDE,LH

14092-0720

$16.06

14092A

COVER,SEAT SIDE,RH

14092-0721

$16.06

14092B

COVER,FUSE BOX

14092-0724

$6.73

14092C

COVER,FR SEAT,RH

14092-0757

$22.14

14092D

COVER,SIDE GUARD,LH,CAMOUFLAGE

14092-0804-42H

$148.50

14092E

COVER,SIDE GUARD,RH,CAMOUFLAGE

14092-0805-42H

$148.50

14092F

COVER,FR SEAT,RH,CNT

14092-1083

$27.71

14093

COVER,FR SEAT,LH

14093-0209

$44.38

14093A

COVER,FR FLOOR,LH

14093-0550

$91.90

14093B

COVER,FR FLOOR,RH

14093-0551

$91.90

16073B

INSULATOR

16073-0847

$20.41

92009

SCREW,TAPPING,6X16

92009-1166

$5.52

92039

RIVET

92039-0776

$1.19

92143

COLLAR

92143-1057

$5.00

92143A

COLLAR

92143-1087

$4.31

92172

SCREW,TAPPING,6X20

92172-0488

$3.02

92172A

SCREW,6X16

92172-0711

$3.02

92172B

SCREW,6X16

92172-0826

$2.26

92210

NUT,LEAF SPRING,6MM

92210-0624

$2.32

130

BOLT-FLANGED,8X18

130BA0818

$2.55
