2020 Kawasaki TERYX4™ Camo Converter Cover Diagram

← All diagrams

Find the part on the Converter Cover diagram for your 2020 Kawasaki TERYX4™ Camo, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

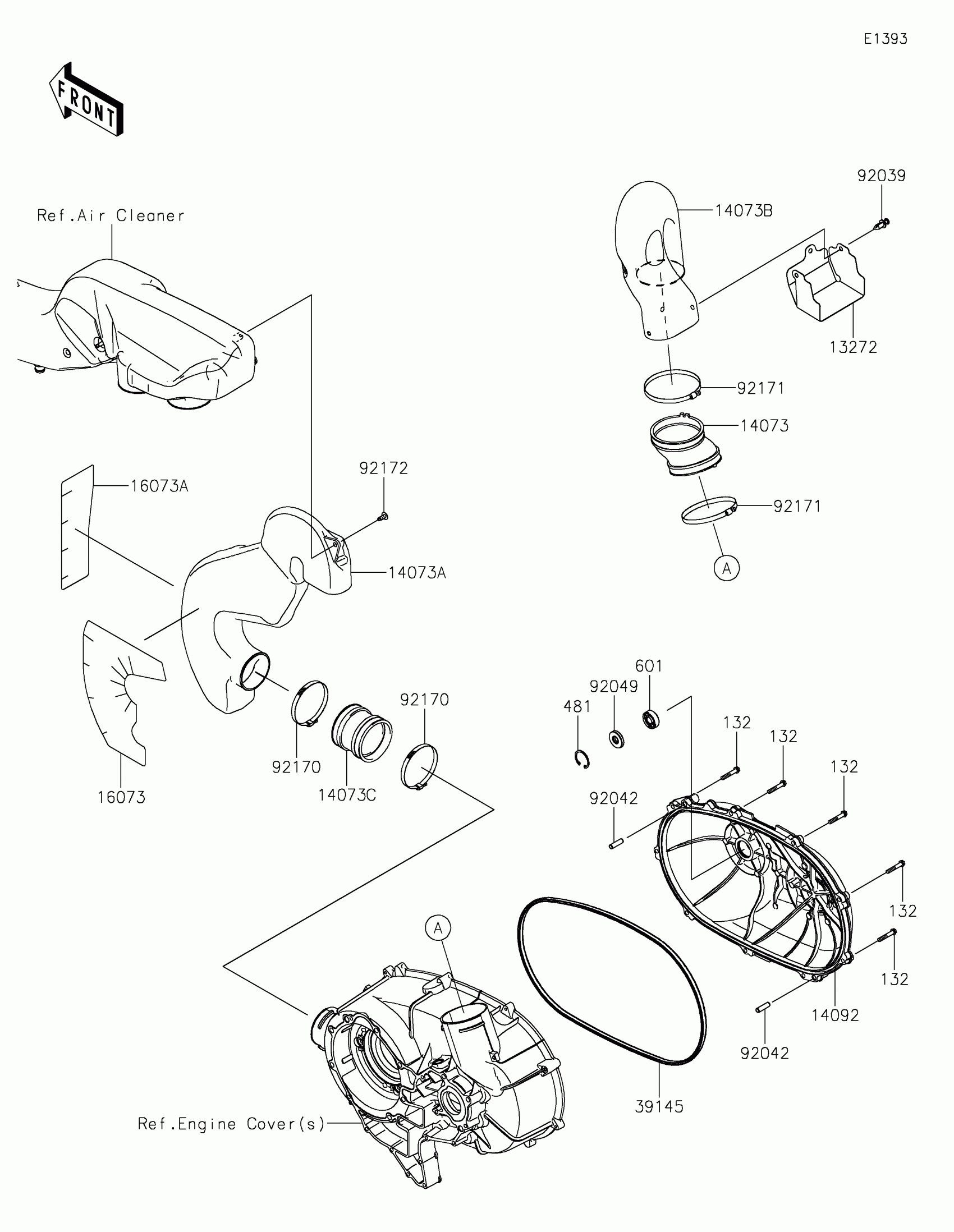

2020 Kawasaki TERYX4™ Camo Converter Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13272

PLATE

13272-2060

1

$13.88

In stock

14073

DUCT,JOINT

14073-0307

1

$9.88

In stock

14073A

DUCT,INTAKE

14073-0760

1

$42.20

In stock

14073B

DUCT,EXHAUST

14073-0839

1

$25.19

In stock

14073C

DUCT,JOINT

14073-1805

1

$10.41

In stock

14092

COVER,CVT

14092-0266

1

$154.97

In stock

16073

INSULATOR

16073-0843

1

$13.17

In stock

16073A

INSULATOR

16073-0844

1

$11.75

In stock

39145

TRIM-SEAL,CVT COVER

39145-0043

1

$27.71

In stock

92039

RIVET

92039-0776

1

$0.80

In stock

92042

PIN,DOWEL,8X28

92042-050

1

$3.85

In stock

92049

SEAL-OIL,12X32X5.8

92049-0167

1
Out of stock

92170

CLAMP

92170-1763

1

$4.51

In stock

92171

CLAMP

92171-1383

1

$3.49

In stock

92172

SCREW

92172-0297

1

$1.46

In stock

132

1

$1.73

In stock

481

1

$2.12

In stock

601

BEARING-BALL

601A6201

1

$8.46

In stock
