2020 Kawasaki TERYX4™ Camo Carrier Diagram

← All diagrams

Find the part on the Carrier diagram for your 2020 Kawasaki TERYX4™ Camo, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

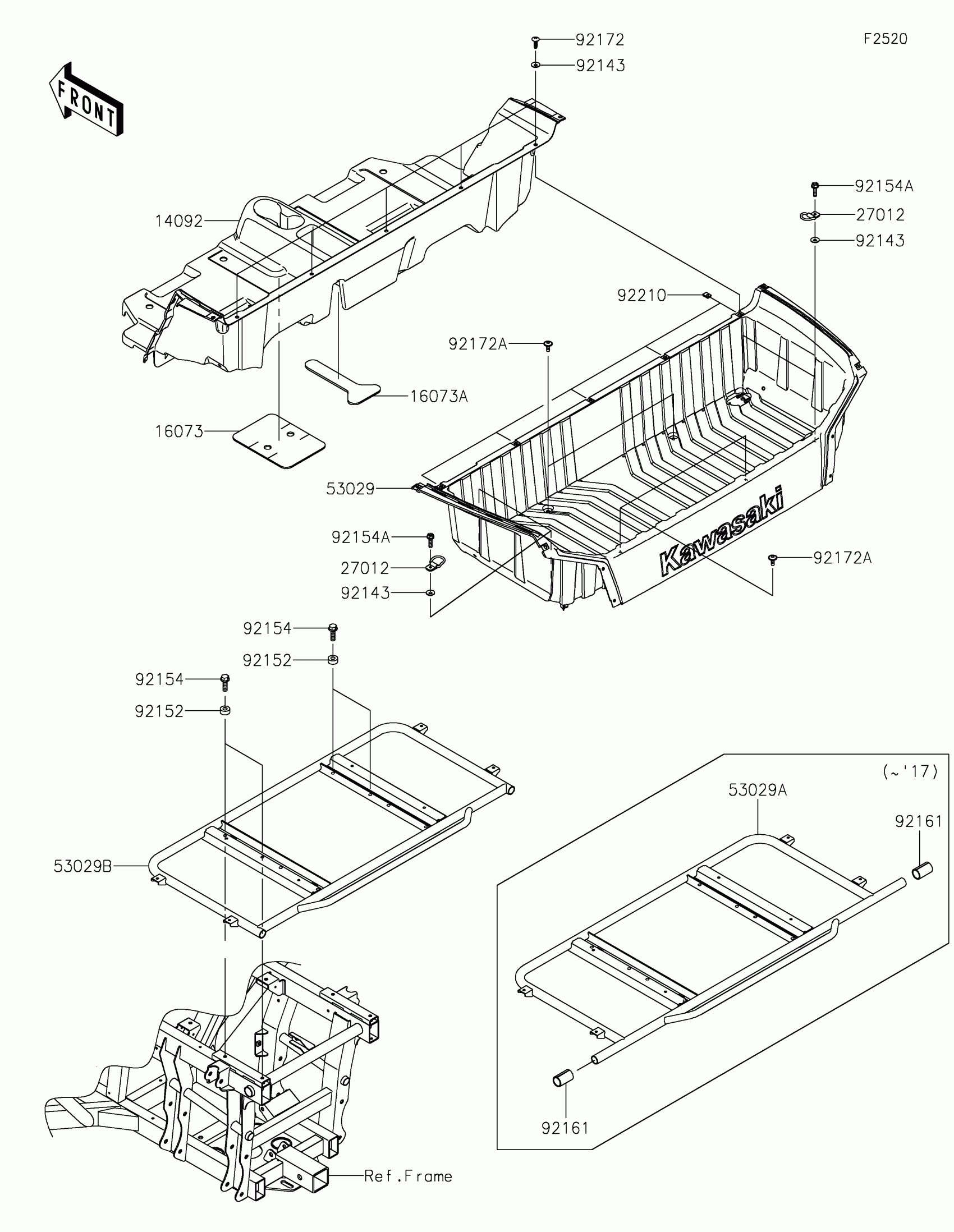

2020 Kawasaki TERYX4™ Camo Carrier Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

14092

COVER,RR CONSOLE

14092-1057

1
Out of stock

16073

INSULATOR,CENTER CONSOLE

16073-0803

1
Out of stock

16073A

INSULATOR

16073-0842

1
Out of stock

27012

HOOK

27012-0783

1
Out of stock

53029

CARRIER

53029-0309

1

$247.28

In stock

53029B

CARRIER

53029-0352

1

$254.12

In stock

92143

COLLAR

92143-1087

1
Out of stock

92152

COLLAR,8.2X18X8

92152-1553

1
Out of stock

92154

BOLT,FLANGED,8X25

92154-1302

1
Out of stock

92154A

BOLT,FLANGED,6X22

92154-1356

1
Out of stock

92172

SCREW,TAPPING,6X20

92172-0488

1
Out of stock

92172A

SCREW,6X16

92172-0711

1
Out of stock

92210

NUT,LEAF SPRING,6MM

92210-0624

1
Out of stock
