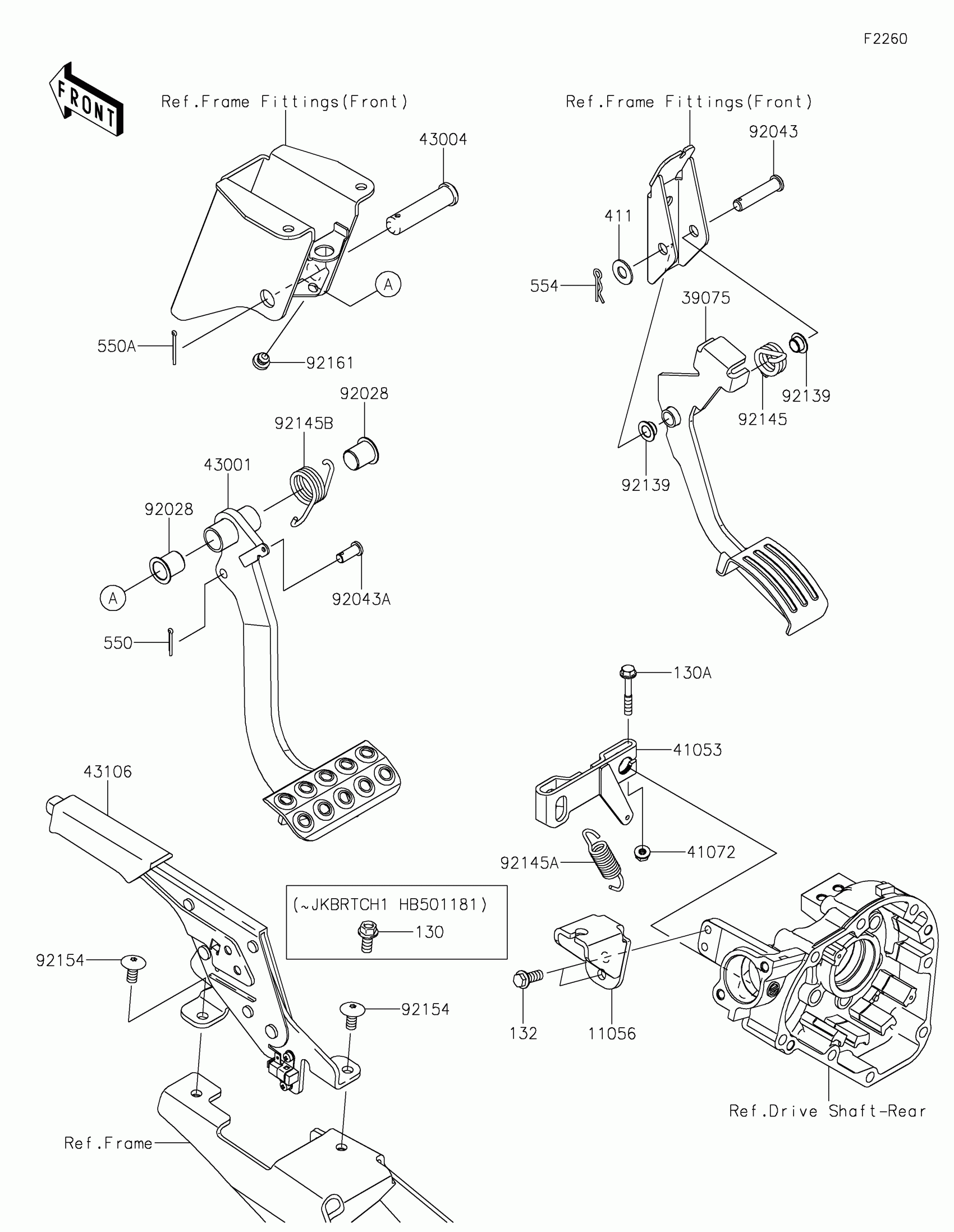

Kawasaki TERYX4™ CAMO Brake Pedal/Throttle Lever Diagram

Description

Price

11056

BRACKET

11056-2267

$12.51

39075

LEVER-THROTTLE

39075-0019

$32.60

41053

LEVER-BRAKE CAM

41053-0023

$53.38

41072

NUT,6MM

41072-007

$3.92

43001

LEVER-BRAKE,PEDAL

43001-0739

$45.85

43004

SHAFT-BRAKE

43004-1128

$17.76

43106

LEVER-ASSY-PARKING BRAKE

43106-0005

$108.71

92028

BUSHING

92028-1571

$10.67

92043

PIN,10X42.5

92043-0707

$6.00

92043A

92043-1039

$9.91

92139

BUSHING

92139-0230

$4.61

92145

SPRING,THROTTLE

92145-0831

$9.64

92145A

SPRING,BRAKE CAM LEVER

92145-0880

$6.57

92145B

SPRING,BRAKE PEDAL RETURN

92145-1615

$7.69

92154

BOLT-FLANGED,8X18

92154-2692

$1.11

92161

DAMPER

92161-1084

$2.67

130A

BOLT-FLANGED,6X40

130CA0640

$2.80

132

BOLT-FLANGED-SMALL,8X20

132BA0820

$4.12

411

WASHER-PLAIN,10MM

411AA1000

$0.96

550

PIN-COTTER,2.5X18

550AA2518

$0.59

550A

PIN-COTTER,2.5X25

550AA2525

$1.36

554

PIN-SNAP,10MM

554DA1000

$1.36
