2020 Kawasaki TERYX4™ Camo AIR Cleaner Diagram

← All diagrams

Find the part on the AIR Cleaner diagram for your 2020 Kawasaki TERYX4™ Camo, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

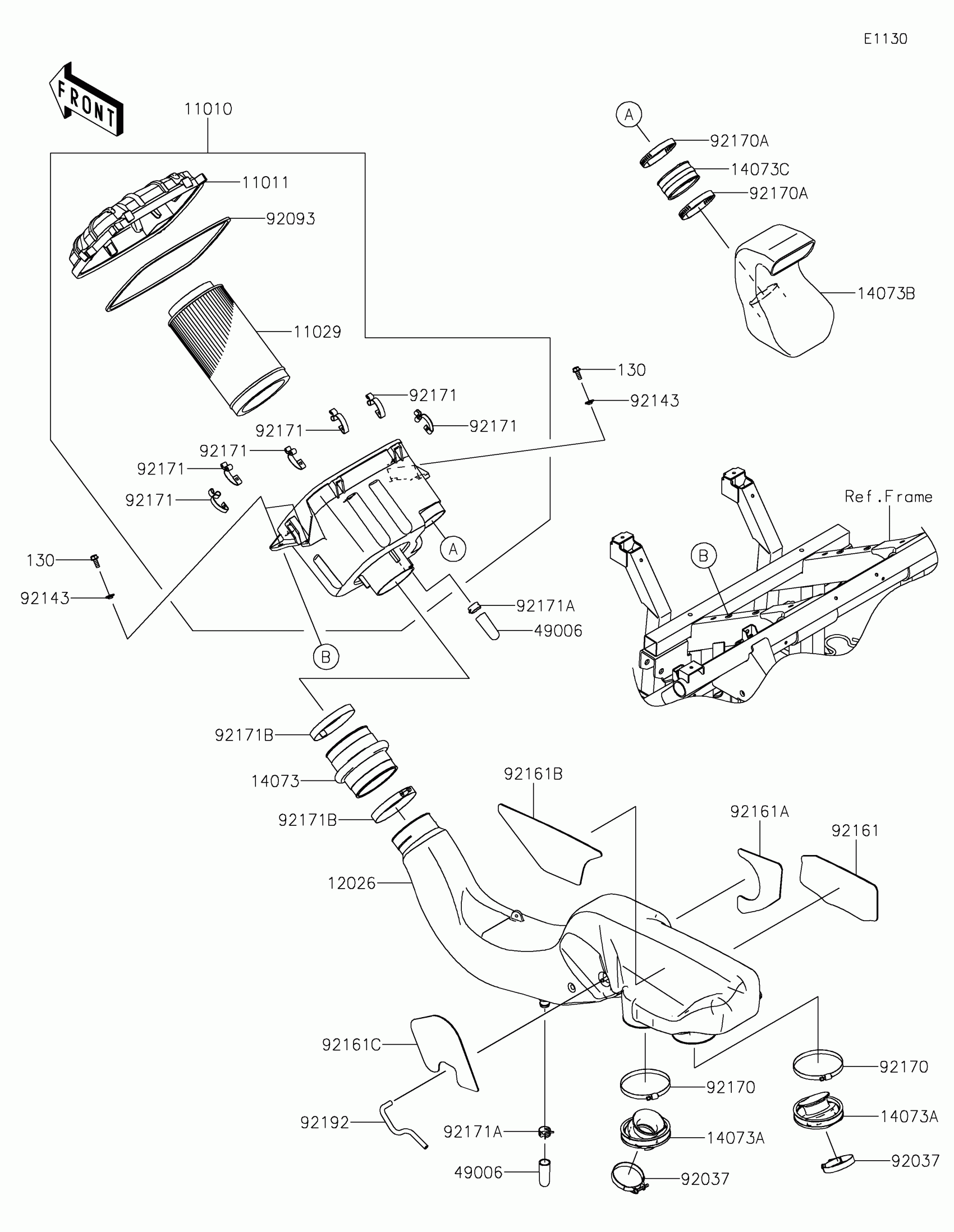

2020 Kawasaki TERYX4™ Camo AIR Cleaner Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11010

FILTER-ASSY-AIR

11010-0777

1
Out of stock

11011

CASE-AIR FILTER

11011-0784

1
Out of stock

11029

ELEMENT-ASSY-AIR FILTER

11029-0025

1
Out of stock

12026

CHAMBER

12026-0016

1
Out of stock

14073

DUCT,JOINT,A/C SIDE

14073-0757

1

$13.36

In stock

14073A

1

$10.58

In stock

14073B

DUCT,INTAKE

14073-0767

1

$34.23

In stock

14073C

DUCT,JOINT

14073-1775

1

$3.46

In stock

49006

BOOT

49006-1351

1
Out of stock

92037

CLAMP

92037-1523

1
Out of stock

92093

SEAL

92093-0585

1
Out of stock

92143

COLLAR

92143-1087

1
Out of stock

92161

1

$14.86

In stock

92161A

1

$15.36

In stock

92161B

1

$23.07

In stock

92161C

1

$22.61

In stock

92170

CLAMP

92170-1676

1

$7.34

In stock

92170A

CLAMP

92170-1764

1

$9.09

In stock

92171

CLAMP

92171-0225

1

$1.68

In stock

92171A

CLAMP

92171-1277

1
Out of stock

92171B

CLAMP

92171-3716

1
Out of stock

92192

TUBE,4X8X143

92192-1230

1
Out of stock

130

BOLT-FLANGED,6X16

130AA0616

1

$0.59

In stock
