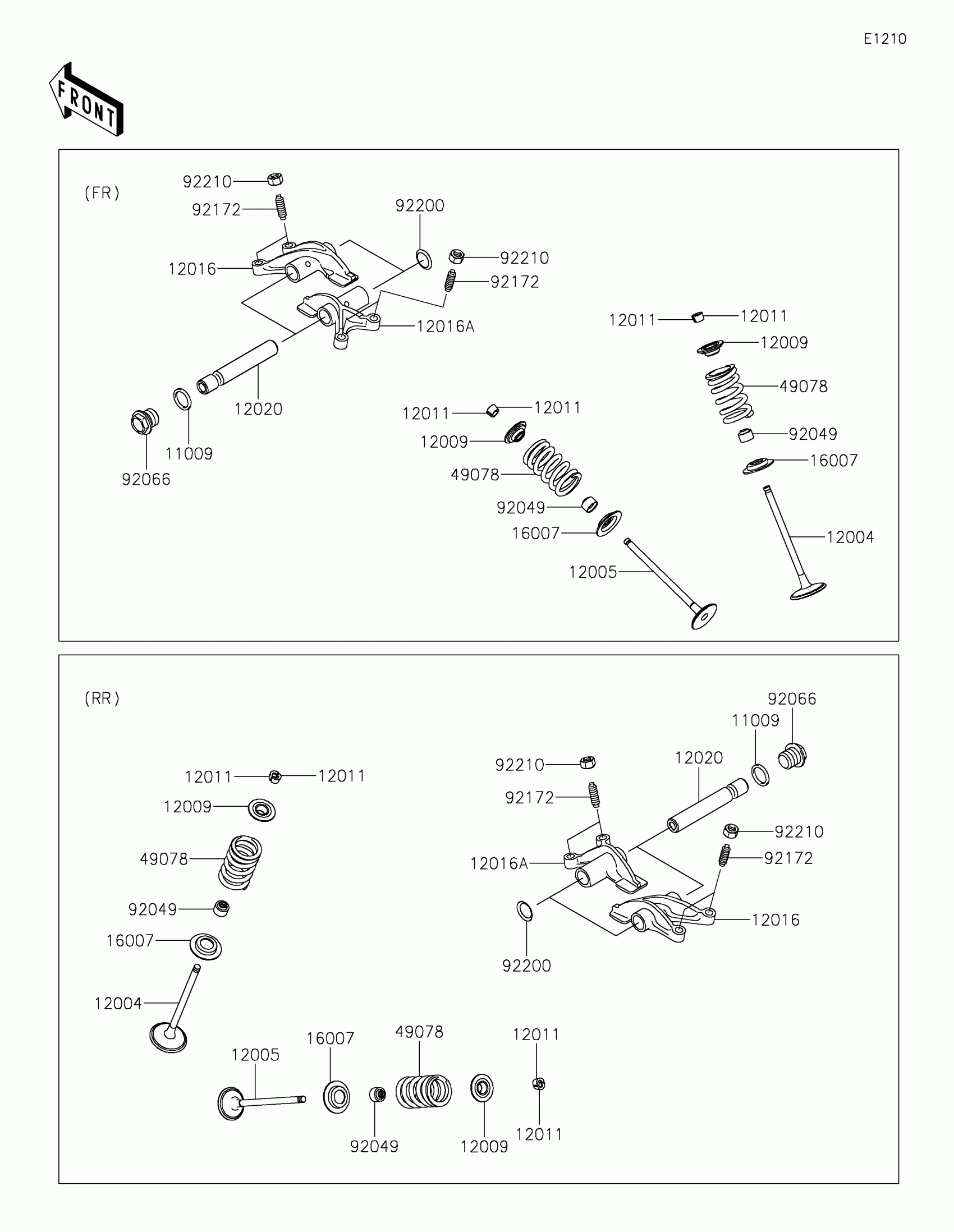

Kawasaki TERYX4™ CAMO Valve(s) Diagram

Description

Price

11009

GASKET,14X18X1.5

11009-1430

$4.88

12004

VALVE-INTAKE

12004-0048

$39.30

12005

VALVE-EXHAUST

12005-0047

$57.34

12009

RETAINER-VALVE SPRING

12009-1056

$8.78

12011

COLLET

12011-1051

$1.42

12016

ARM-ROCKER,EXHAUST

12016-1128

$92.58

12016A

ARM-ROCKER,INTAKE

12016-1129

$92.58

12020

SHAFT-ROCKER

12020-0004

$11.43

16007

SEAT-SPRING

16007-0703

$2.42

49078

SPRING-ENGINE VALVE

49078-0014

$11.93

92049

SEAL-OIL,VSB58.558

92049-1218

$3.01

92066

PLUG,DRAIN

92066-2196

$2.98

92172

SCREW,6MM

92172-0737

$2.84

92200

WASHER,13X17X0.3

92200-0808

$2.68

92210

NUT,6MM

92210-1490

$3.57
