2013 Kawasaki TERYX4™ 750 4x4 EPS Throttle Diagram

← All diagrams

Find the part on the Throttle diagram for your 2013 Kawasaki TERYX4™ 750 4x4 EPS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

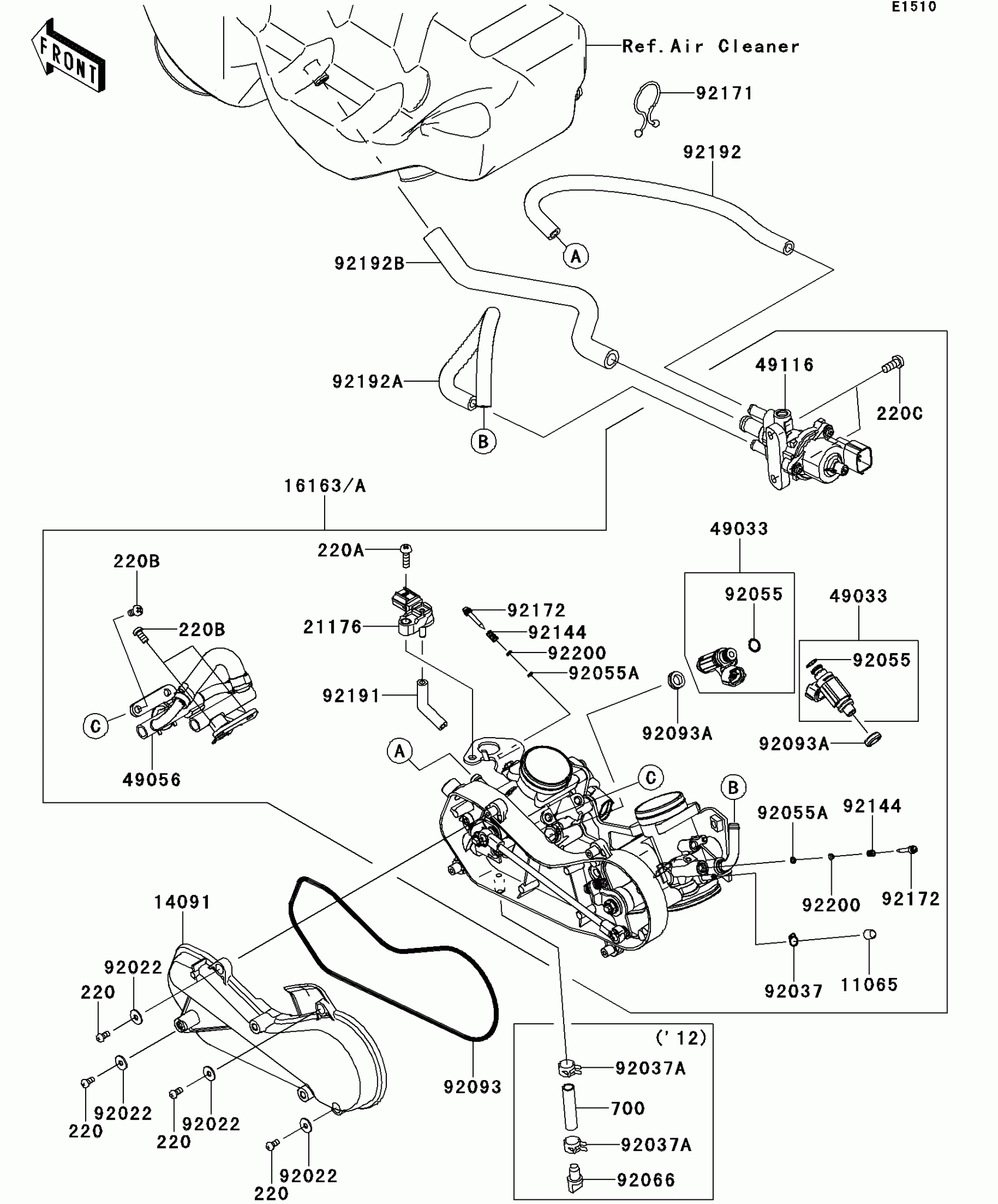

2013 Kawasaki TERYX4™ 750 4x4 EPS Throttle Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11065

CAP

11065-0072

1
Out of stock

14091

COVER,THROTTLE LINK

14091-1731

1
Out of stock

16163A

THROTTLE-ASSY,36EIS

16163-0784

1
Out of stock

21176

SENSOR,PRESSURE

21176-0111

1
Out of stock

220

SCREW-PAN-CROS,4X8

220AA0408

1
Out of stock

220A

SCREW-PAN-CROS,5X16

220AA0516

1
Out of stock

220B

SCREW-PAN-CROS,6X12

220AA0612

1
Out of stock

220C

SCREW-PAN-CROSS,6X14

220AA0614

1
Out of stock

49033

NOZZLE-INJECTION

49033-0011

1
Out of stock

49056

PIPE-INJECTION

49056-0033

1
Out of stock

49116

VALVE-ASSY,ISC

49116-0026

1
Out of stock

92022

WASHER,5.2X13X1

92022-1380

1
Out of stock

92037

CLAMP,TUBE

92037-1124

1
Out of stock

92055

RING-O,INJECTION NOZZLE

92055-1622

1
Out of stock

92055A

RING-O,AIR SCREW

92055-1658

1
Out of stock

92093

SEAL

92093-0082

1
Out of stock

92093A

SEAL

92093-0127

1
Out of stock

92144

SPRING,THROTTLE STOP SCREW

92144-1674

1
Out of stock

92171

CLAMP

92171-0876

1
Out of stock

92172

SCREW

92172-0156

1
Out of stock

92191

TUBE,3.2X7.4X70

92191-1552

1
Out of stock

92192

TUBE,ISC-THROTTLE FR

92192-0946

1
Out of stock

92192A

TUBE,ISC-THROTTLE RR

92192-0947

1
Out of stock

92192B

TUBE,ISC-CHAMBER

92192-0948

1
Out of stock

92200

WASHER,PILOT AIR SCREW

92200-1564

1
Out of stock
