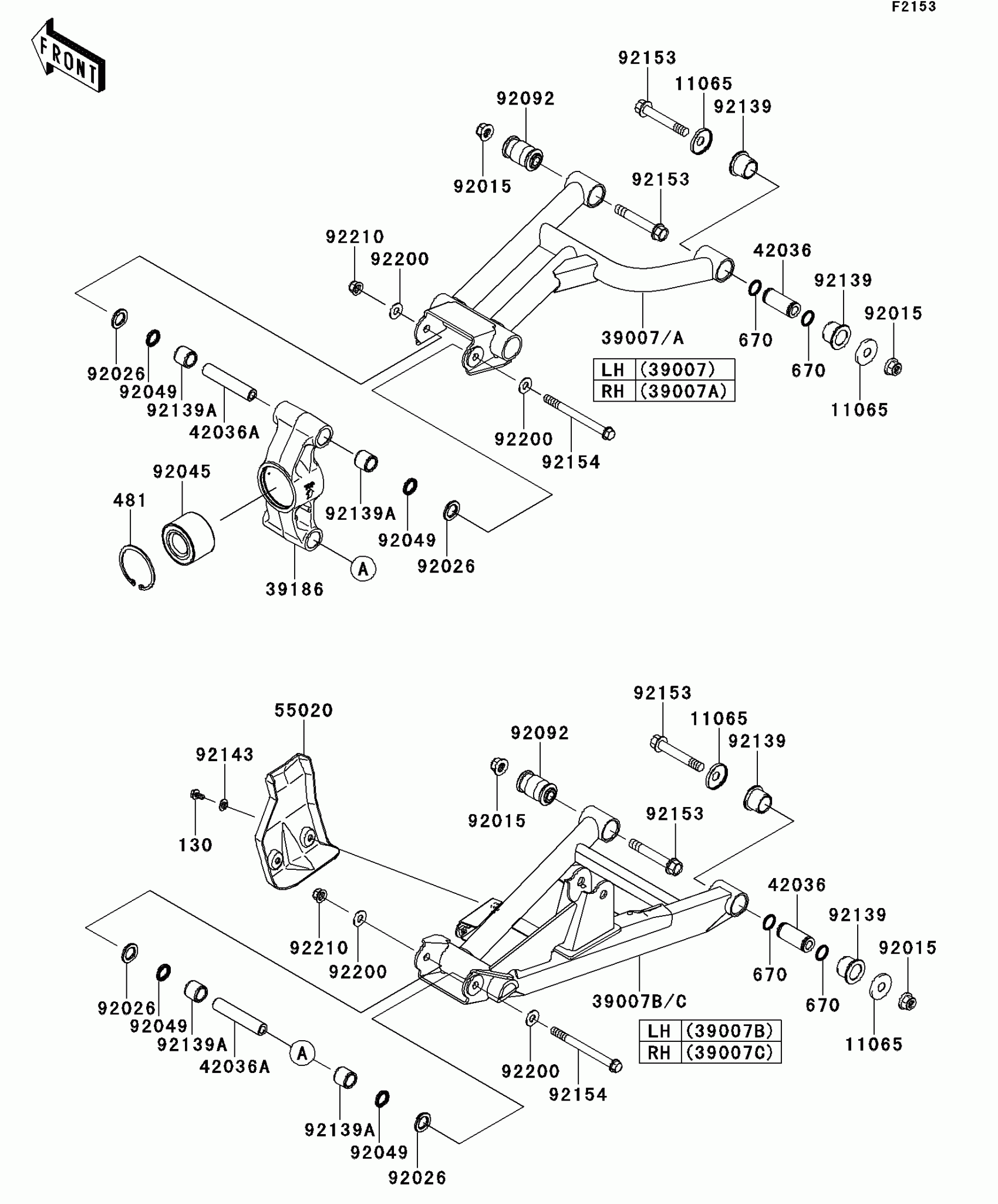

Kawasaki TERYX4™ 750 4x4 EPS Rear Suspension Diagram

Description

Price

11065

CAP

11065-0253

$2.95

130

BOLT-FLANGED,6X12

130BA0612

$1.25

39007

ARM-SUSP,RR,UPP,LH

39007-0345

Unavailable

39007A

ARM-SUSP,RR,UPP,RH

39007-0346

$113.55

39007B

ARM-SUSP,RR,LWR,LH

39007-0347

Unavailable

39007C

ARM-SUSP,RR,LWR,RH

39007-0348

Unavailable

39186

KNUCKLE,RR

39186-0316

$141.86

42036

SLEEVE

42036-0062

$19.37

42036A

SLEEVE,10X17X88

42036-0710

$11.77

481

CIRCLIP

481J6200

$8.56

55020

GUARD,REAR ARM

55020-0805

$10.46

670

O RING,18MM

670B2018

$1.08

92015

NUT,LOCK,FLANGED,12MM

92015-1433

$6.75

92026

SPACER,17X28.6X3

92026-0729

$8.89

92045

BEARING-BALL

92045-0725

Unavailable

92049

SEAL-OIL,17X24X3

92049-0726

$5.79

92092

BUSHING-RUBBER

92092-0555

$14.43

92139

BUSHING

92139-0231

$5.87

92139A

BUSHING,17X24X21.5

92139-0736

$11.00

92143

COLLAR

92143-1087

$2.98

92153

BOLT,FLANGED,12X76.5

92153-1733

$5.91

92154

BOLT,FLANGED,10X117

92154-0743

$6.99

92200

WASHER,10.3X23X1.6

92200-2009

$1.04

92210

NUT,LOCK,FLANGED,10MM

92210-1080

$7.83
