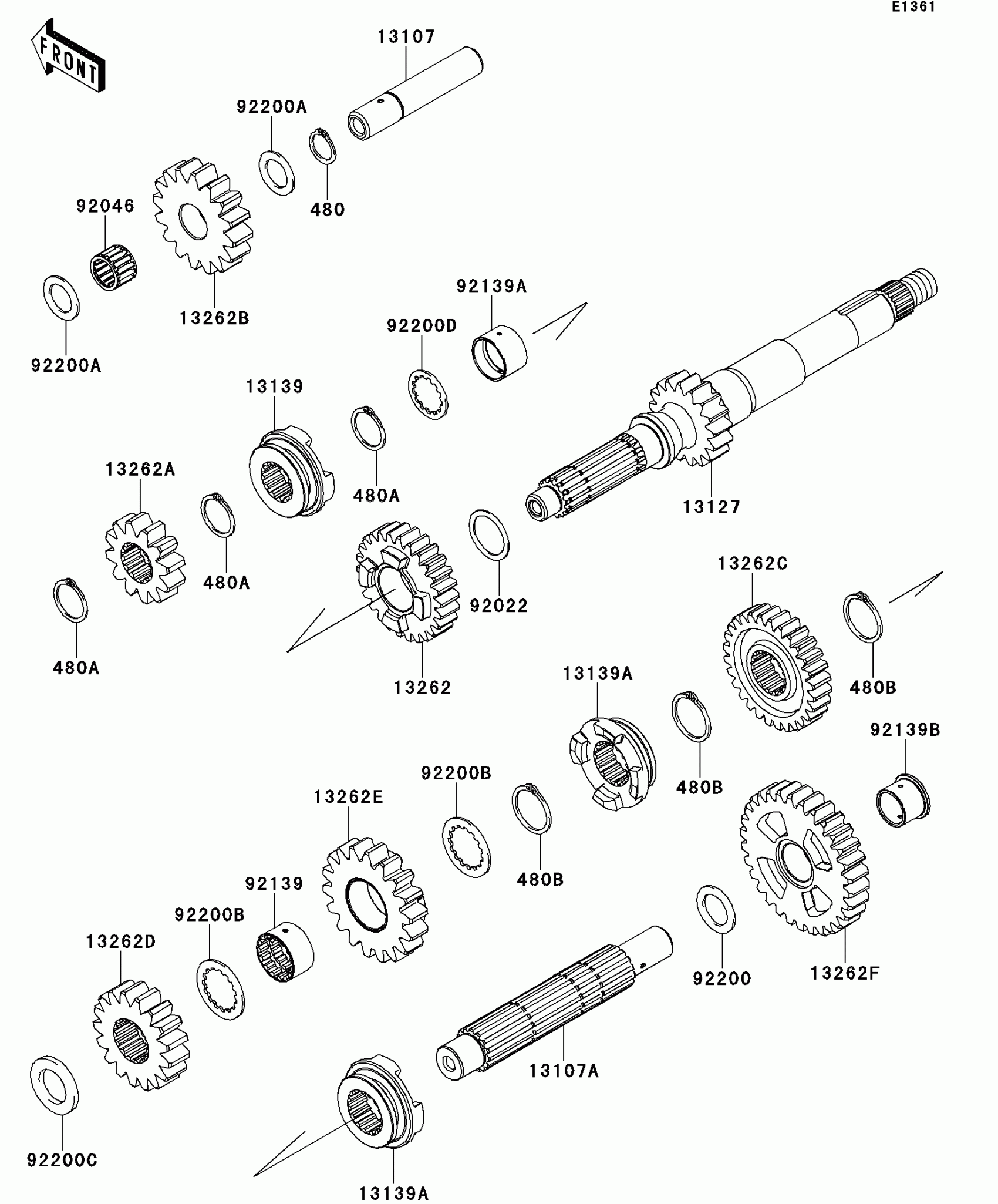

Kawasaki TERYX4™ 750 4x4 EPS Realtree APG HD Transmission Diagram

Description

Price

13107

SHAFT,REVERSE

13107-0715

$48.64

13107A

SHAFT,COUNTER

13107-0716

$105.32

13127

SHAFT-TRANSMISSION INPUT,17T

13127-0633

$380.90

13139

SHIFTER,INPUT HI

13139-0624

$52.37

13139A

SHIFTER,OUTPUT

13139-0625

$54.57

13262

GEAR,INPUT HI,26T

13262-0860

$99.48

13262A

GEAR,INPUT REVERSE,12T

13262-0861

$73.13

13262B

GEAR,REVERSE IDLE,16T

13262-0862

$68.51

13262C

GEAR,OUTPUT HI,28T

13262-0863

$74.14

13262D

GEAR,OUTPUT,17T

13262-0864

$111.66

13262E

GEAR,OUTPUT REVERSE,18T

13262-0865

$115.21

13262F

GEAR,OUTPUT LOW,31T

13262-0867

$102.85

480

CIRCLIP-TYPE-C,18MM

480J1800

$0.98

480A

CIRCLIP-TYPE-C,24MM

480J2400

$4.65

480B

CIRCLIP-TYPE-C,28MM

480J2800

$3.58

92022

WASHER,25.3X32X1

92022-1800

$4.42

92046

BEARING-NEEDLE,182216E03 C3

92046-0605

$15.03

92139

BUSHING,25X28.3X16.7

92139-0107

$25.24

92139A

BUSHING,25X28X17.8

92139-0280

$35.46

92139B

BUSHING,20X24X18.7

92139-0707

$25.00

92200

WASHER,20.2X30X1.8

92200-0221

$3.51

92200A

WASHER,18.2X28X1.5

92200-0716

$2.44

92200B

WASHER,28.5X38X1.5

92200-0717

$3.29

92200C

WASHER,22.2X36X3.6

92200-0718

$8.37

92200D

WASHER,25.2X31.0X1.5

92200-1239

$7.71
