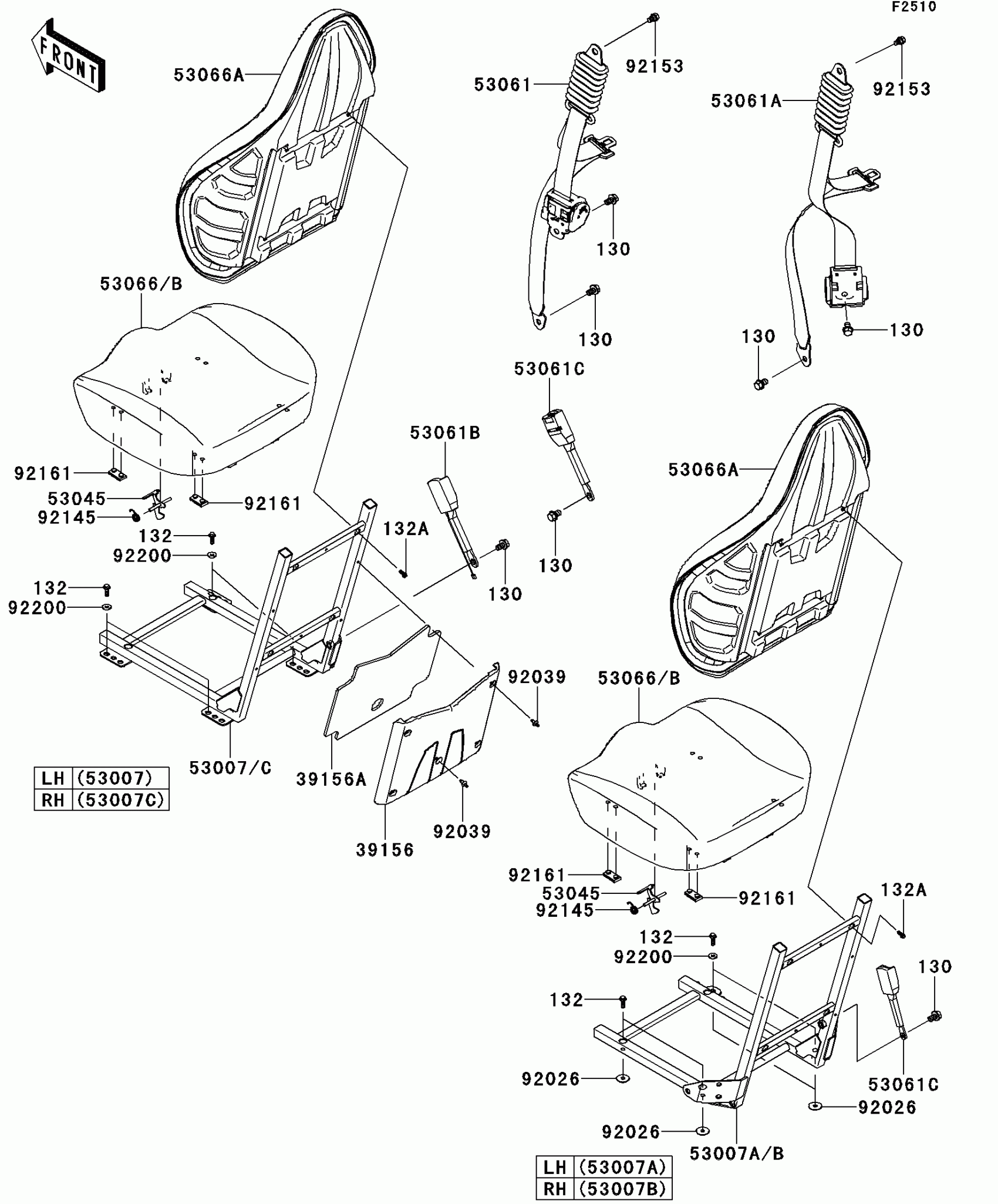

Kawasaki TERYX4™ 750 4x4 EPS Realtree APG HD Seat Diagram

Description

Price

130

BOLT-FLANGED,12X20

130BB1220

$3.77

132

BOLT-FLANGED-SMALL,8X22

132BA0822

$1.90

132A

BOLT-FLANGED-SMALL,6X14

132BB0614

$1.77

39156

PAD,SEAT BACK

39156-0805

$17.05

39156A

PAD,FR SEAT BACK

39156-0864

Unavailable

53007

FRAME-SEAT,FR,LH

53007-0332

Unavailable

53007A

FRAME-SEAT,RR,LH

53007-0333

Unavailable

53007B

FRAME-SEAT,RR,RH

53007-0334

Unavailable

53007C

FRAME-SEAT,FR,RH

53007-0335

Unavailable

53045

HOOK-ASSY

53045-0566

$7.97

53061

BELT-SEAT,RETRACTOR,FR

53061-0317

$167.41

53061A

BELT-SEAT,RETRACTOR,RR

53061-0318

$167.41

53061B

BELT-SEAT,BUCKLE

53061-0319

$59.54

53061C

BELT-SEAT,BUCKLE

53061-0320

$37.99

53066A

SEAT-ASSY,BACK,BLACK

53066-0323-MA

$295.80

53066B

SEAT-ASSY,BASE,BLACK

53066-0374-MA

Unavailable

92026

SPACER,8.6X30X4.5

92026-0714

$3.55

92039

RIVET,FASTENER

92039-0713

$1.57

92145

SPRING,SEAT LATCH

92145-0022

$5.43

92153

BOLT,FLANGED,10X16

92153-1740

$3.71

92161

DAMPER,SEAT

92161-1489

$2.31

92200

WASHER,8.2X20.0X2.5

92200-0205

$2.68
