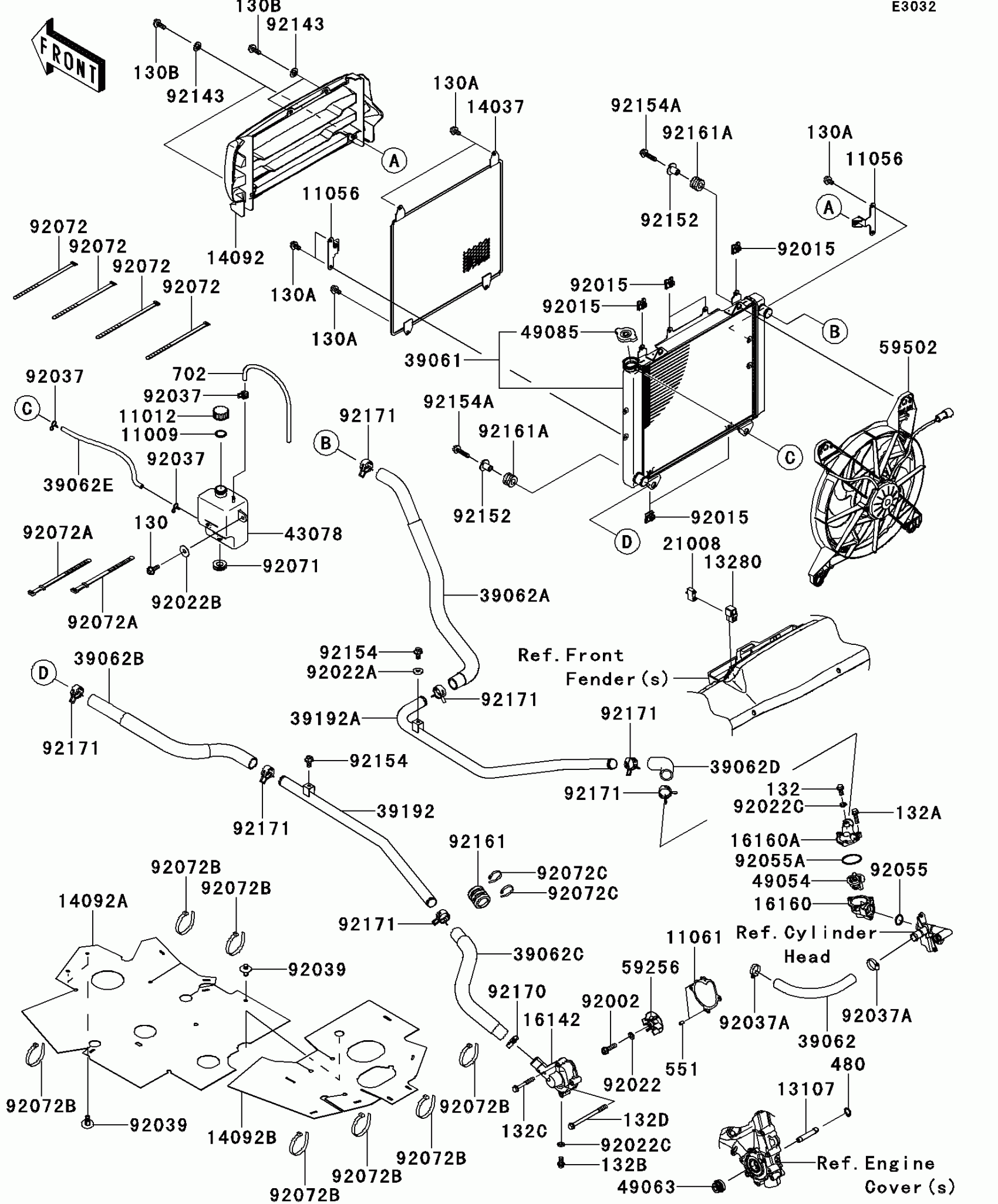

Kawasaki TERYX4™ 750 4x4 EPS Realtree APG HD Radiator Diagram
#
11009
GASKET,RESERVOIR TANK CAP
11009-1145
$1.42
11012
CAP
11012-1084
$1.72
11056
BRACKET
11056-0722
$10.54
11061
GASKET,WATER PUMP COVER
11061-0731
$9.09
13107
SHAFT,WATER PUMP
13107-0719
$21.58
13280
HOLDER,BREAKER
13280-0082
$5.60
14037
SCREEN
14037-0739
$135.90
14092
COVER,RADIATOR,F.BLACK
14092-0086-6Z
$31.72
14092A
COVER,FR
14092-0900
$46.61
14092B
COVER,RR
14092-0901
$28.39
16142
COVER-PUMP,WATER
16142-0705
$63.96
16160
BODY,THERMOSTAT,LWR
16160-0189
$79.78
16160A
BODY,THERMOSTAT,UPP
16160-0225
$67.23
21008
BREAKER,RAD. FAN,20A
21008-0554
$28.27
39061
RADIATOR-ASSY
39061-0568
$479.59
39062
HOSE-COOLING,FR HEAD-THERMO
39062-0316
$12.10
39062A
HOSE-COOLING,RADIATOR IN
39062-0578
Unavailable
39062B
HOSE-COOLING,RADIATOR OUT
39062-0579
Unavailable
39062C
HOSE-COOLING,WATER PUMP IN
39062-0580
$36.62
39062D
HOSE-COOLING,THERMO OUT
39062-0581
$15.82
39062E
HOSE-COOLING,RESERVOIR-RAD.
39062-0582
$6.69
39192
PIPE-WATER,LH
39192-0555
$34.73
39192A
PIPE-WATER,RH
39192-0556
$42.52
43078
RESERVOIR
43078-0070
$39.23
49054
THERMOSTAT
49054-1055
$54.56
49063
SEAL-MECHANICAL
49063-1055
$20.06
49085
CAP-ASSY-PRESSURE
49085-0005
$45.60
59256
IMPELLER
59256-0555
$42.34
59502
FAN-ASSY
59502-0557
Unavailable
92002
BOLT,6X22
92002-1154
$4.69
92015
NUT
92015-1487
$4.80
92022
WASHER OIL PUMP BANJO
92022-077
$3.99
92022A
WASHER,6.5X16X2
92022-1565
$3.92
92022B
WASHER,PLAIN,6.5X20X1
92022-165
$3.74
92022C
WASHER,6.2X11X1
92022-304
$3.65
92037
CLAMP,TUBE
92037-1461
$3.88
92037A
CLAMP,COOLING HOSE
92037-1589
$18.57
92039
RIVET
92039-0086
$5.54
92055
RING-O,22.1X2.4
92055-1081
$4.69
92055A
RING-O,44.7X2.4
92055-1279
$7.34
130
BOLT-FLANGED,6X16
130BA0616
$1.20
130A
BOLT-FLANGED,6X10
130BB0610
$2.49
130B
BOLT-FLANGED,6X14
130BB0614
$2.49
132
BOLT-FLANGED-SMALL,6X12
132BA0612
$1.20
132A
BOLT-FLANGED-SMALL,6X20
132BA0620
$2.49
132B
BOLT-FLANGED-SMALL,6X12
132BD0612
$2.06
132C
BOLT-FLANGED-SMALL,6X40
132BD0640
$5.25
132D
BOLT-FLANGED-SMALL,6X80
132BD0680
$6.25
480
CIRCLIP-TYPE-C,12MM
480J1200
$0.62
551
PIN-DOWEL,4X8
551A0408
$0.78
702
TUBE-RUBBER,5X8X1375
702A051375
$14.29
92071
GROMMET
92071-1115
$5.46
92072
BAND,L=218
92072-032
$5.00
92072A
BAND,L=186
92072-056
$5.00
92072B
BAND,L=250
92072-1237
$2.14
92072C
BAND,L=188
92072-1239
$1.73
92143
COLLAR
92143-1087
$4.31
92152
COLLAR
92152-1512
$8.56
92154
BOLT,FLANGED,6X12
92154-0485
$1.63
92154A
BOLT,FLANGED,6X25
92154-0498
$1.94
92161
DAMPER,FUEL TANK,RR
92161-1111
$6.37
92161A
DAMPER
92161-1349
$4.68
92170
CLAMP,COOLING HOSE
92170-1284
$8.20
92171
CLAMP,COOLING HOSE
92171-0060
$4.41
