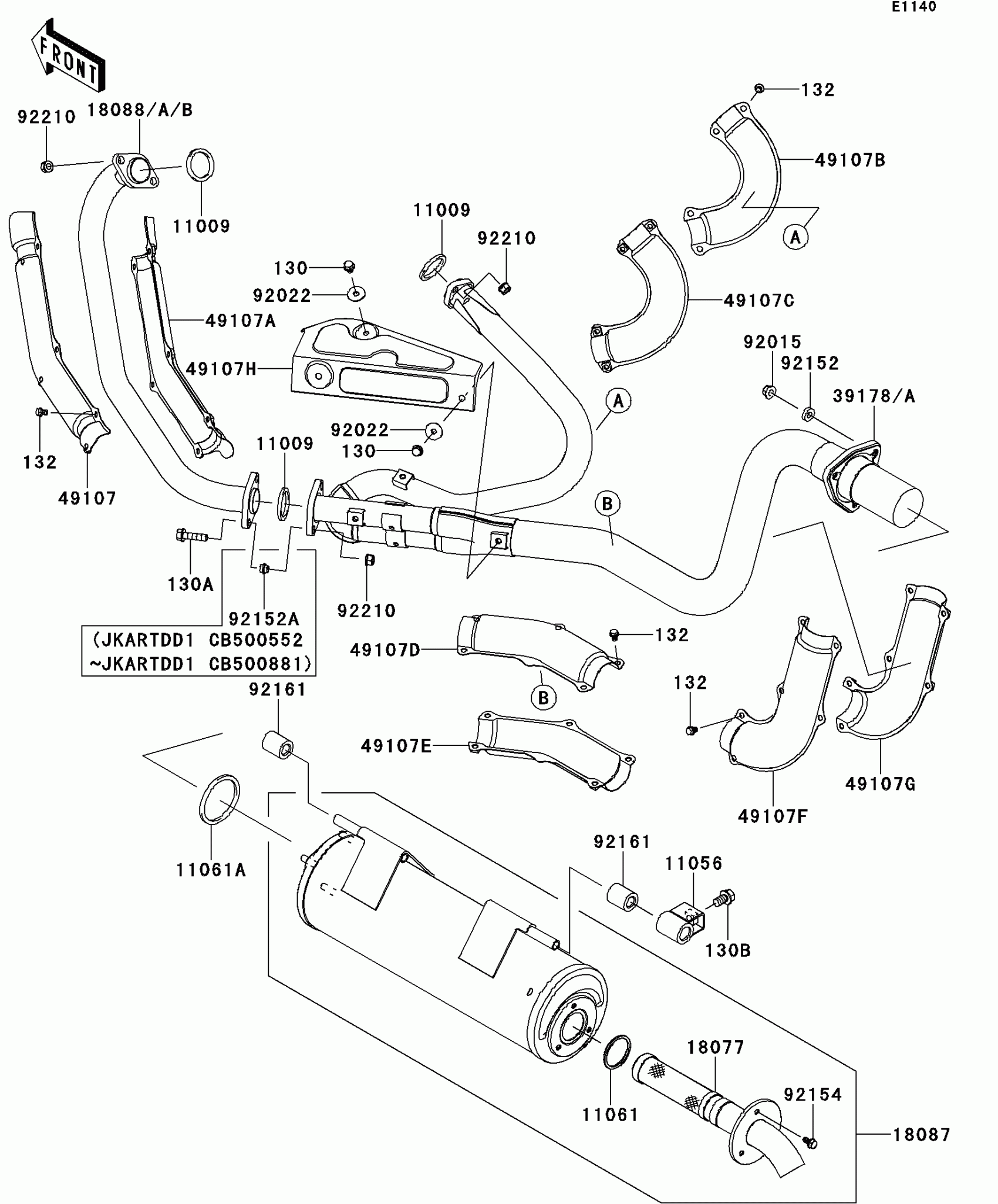

Kawasaki TERYX4™ 750 4x4 EPS Realtree APG HD Muffler(s) Diagram

Description

Price

11009

GASKET,EXHAUST HOLDER

11009-1894

$8.03

11056

BRACKET

11056-0727

$23.87

11061

GASKET,38.9X46.4X3.0

11061-0082

$7.60

11061A

GASKET,PIPE-MUFFLER

11061-0811

$8.81

130

BOLT-FLANGED,6X10

130BD0610

$3.67

130A

BOLT-FLANGED,8X30

130BD0830

$1.94

130B

BOLT-FLANGED,10X16

130CA1016

$3.35

132

BOLT-FLANGED-SMALL,6X8

132BD0608

$3.40

18077

ARRESTER-SPARK

18077-0702

$168.58

18087

MUFFLER

18087-0259

$751.50

18088A

PIPE-EXHAUST

18088-0824

$261.04

39178A

MANIFOLD-COMP-EXHAUST

39178-0185

$1,117.79

49107

COVER-EXHAUST PIPE,FR,LH

49107-0727

$36.59

49107A

COVER-EXHAUST PIPE,FR,RH

49107-0728

$47.21

49107B

COVER-EXHAUST PIPE,MIDDLE,RH

49107-0729

$28.26

49107C

COVER-EXHAUST PIPE,MIDDLE,LH

49107-0730

$33.12

49107D

COVER-EXHAUST PIPE,RR-F,UPP

49107-0731

$30.65

49107E

COVER-EXHAUST PIPE,RR-F,LWR

49107-0732

$36.63

49107F

COVER-EXHAUST PIPE,RR-R,LH

49107-0733

$34.73

49107G

COVER-EXHAUST PIPE,RR-R,RH

49107-0734

$43.92

49107H

COVER-EXHAUST PIPE,MANIFOLD

49107-0739

$49.04

92015

NUT,8MM

92015-1402

$4.69

92022

WASHER,6.5X22X1.6

92022-237

$3.92

92152

COLLAR,8.2X17X4.5

92152-1609

$7.58

92154

BOLT,FLANGED,6X12

92154-0852

$1.19

92161

DAMPER

92161-0961

$24.27

92210

NUT,8MM

92210-1242

$2.41
