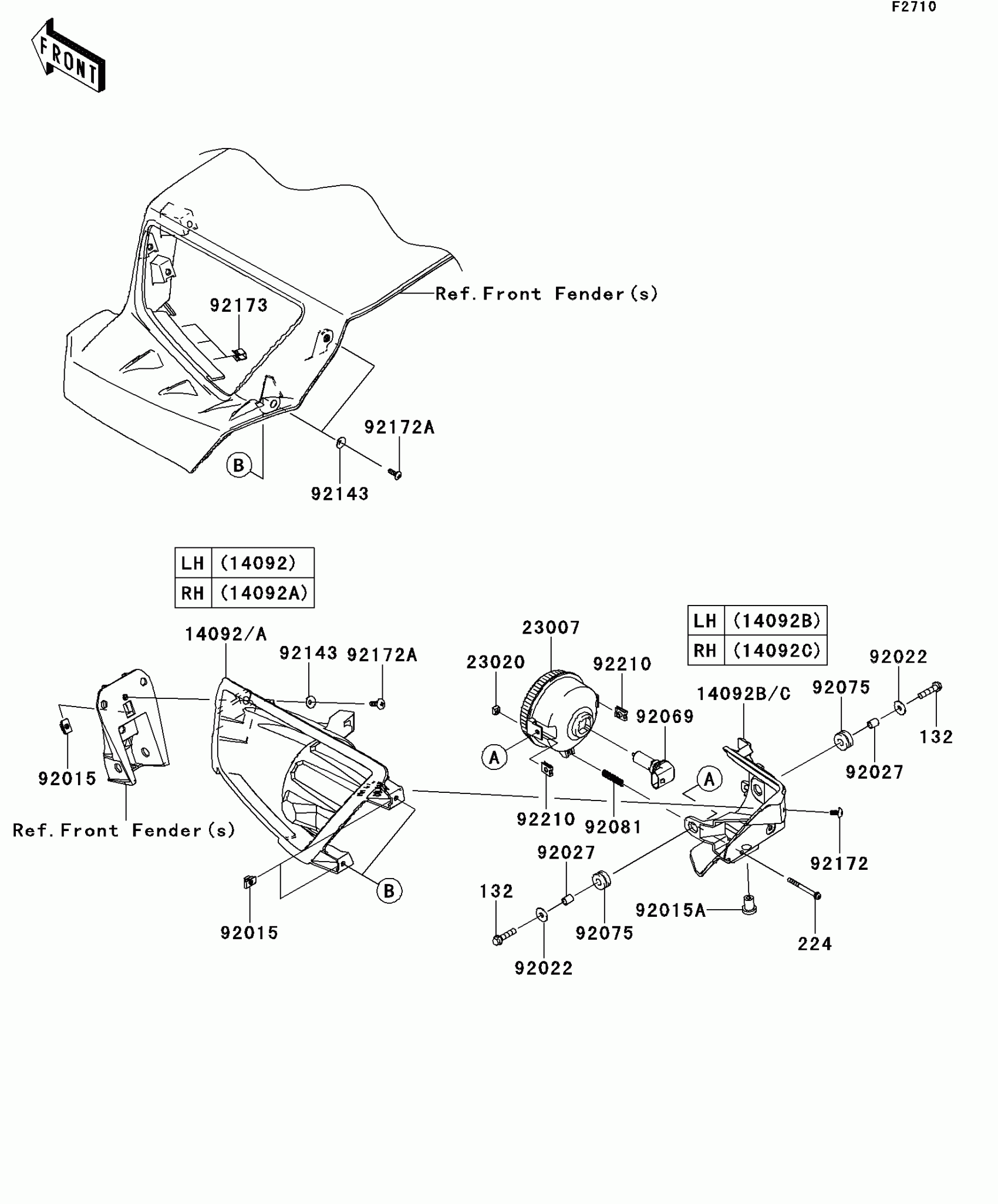

Kawasaki TERYX4™ 750 4x4 EPS Realtree APG HD Headlight(s) Diagram

Description

Price

132

BOLT-FLANGED-SMALL,6X25

132BA0625

$1.98

14092

COVER,HEAD LAMP,FR,LH

14092-0054

$20.75

14092A

COVER,HEAD LAMP,FR,RH

14092-0055

Unavailable

14092B

COVER,HEAD LAMP,RR,LH

14092-0056

$32.85

14092C

COVER,HEAD LAMP,RR,RH

14092-0057

$32.85

224

SCREW-PAN-WP-CROS,4X45

224AA0445

$1.33

23007

LENS-COMP,HEAD LAMP

23007-0096

$44.76

23020

NUT,4MM,FOCUS ADJUST

23020-018

$3.54

92015

NUT,5MM

92015-1627

$4.47

92015A

NUT,RUBBER,6MM

92015-1692

$5.61

92022

WASHER,6.5X20X1.6

92022-125

$1.08

92027

COLLAR,6.8X10X12

92027-162

$4.93

92069

BULB,12V 35/35W

92069-0019

$11.94

92075

DAMPER,10X24X12

92075-1690

$3.81

92081

SPRING,FOCUS ADJUST

92081-1896

$3.99

92143

COLLAR

92143-1087

$2.98

92172

SCREW,TAPPING,5X10

92172-0262

$1.04

92172A

SCREW,5X16

92172-0322

$1.57

92173

CLAMP

92173-0104

$2.69

92210

NUT

92210-1125

$3.63
