- Partiron
- OEM Parts
- Kawasaki
- side-x-side
- 2013
- TERYX4™ 750 4x4 EPS Realtree APG HD
Guards/Cab Frame

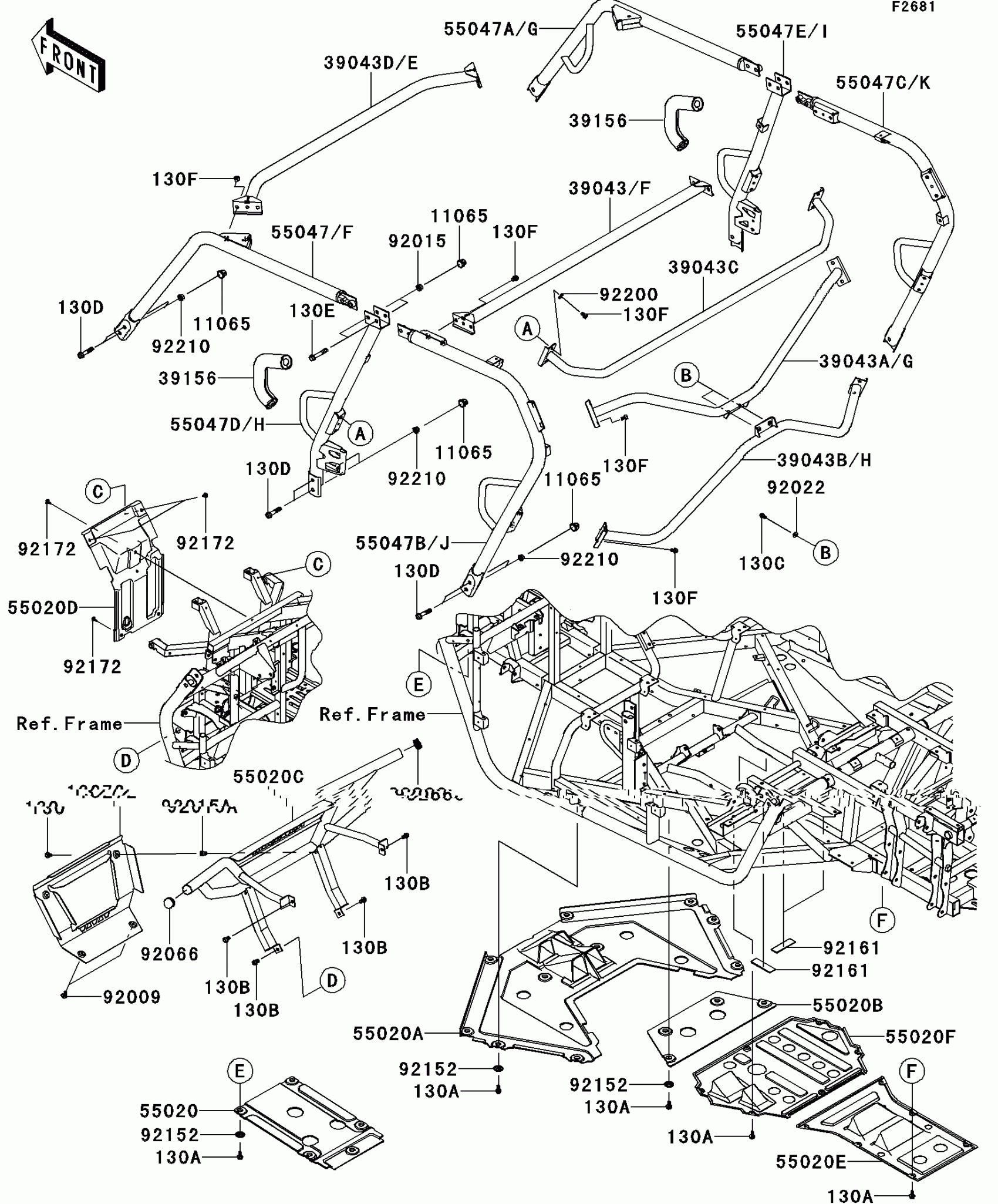

Kawasaki TERYX4™ 750 4x4 EPS Realtree APG HD Guards/Cab Frame Diagram
#
11065
CAP
11065-0751
$1.69
13272
PLATE,T.BLACK
13272-0994-388
$58.14
39043C
CROSSMEMBER-COMP,CNT,LWR,T.BLK
39043-0325-388
$110.29
39043E
CROSSMEMBER-COMP,FR,UPP,T.BLK
39043-0328-388
Unavailable
39043F
CROSSMEMBER-COMP,CNT,UPP,T.BLK
39043-0329-388
Unavailable
39043G
CROSSMEMBER-COMP,RR,UPP,T.BLK
39043-0330-388
Unavailable
39043H
CROSSMEMBER-COMP,RR,LWR,T.BLK
39043-0331-388
Unavailable
39156
PAD
39156-0764
$71.77
55020
GUARD,SKID,FR
55020-0723
$34.28
55020A
GUARD,SKID,FR MIDDLE
55020-0724
Unavailable
55020B
GUARD,SKID,CNT,FR
55020-0726
Unavailable
55020C
GUARD,FRONT,T.BLACK
55020-0727-388
$239.05
55020D
GUARD,FR FRAME
55020-0741
$30.31
55020E
GUARD,SKID,RR
55020-0812
$59.85
55020F
GUARD,SKID,CNT
55020-0815
$114.43
55047F
BAR-COMP,A-PILLAR,LH,T.BLACK
55047-0334-388
Unavailable
55047G
BAR-COMP,A-PILLAR,RH,T.BLACK
55047-0335-388
Unavailable
55047H
BAR-COMP,B-PILLAR,LH,T.BLACK
55047-0336-388
Unavailable
55047I
BAR-COMP,B-PILLAR,RH,T.BLACK
55047-0337-388
Unavailable
55047J
BAR-COMP,C-PILLAR,LH,T.BLACK
55047-0338-388
Unavailable
55047K
BAR-COMP,C-PILLAR,RH,T.BLACK
55047-0339-388
Unavailable
92009
SCREW,TAPPING,6X16
92009-1166
$5.52
92015
NUT,LOCK,FLANGED,12MM
92015-1433
$8.86
92015A
NUT,POP,6MM,L=15
92015-1791
$4.69
92022
WASHER,8.5X20X1.6,BLACK
92022-1317
$4.31
92066
PLUG
92066-7503
$1.75
92152
COLLAR
92152-0784
$2.12
92161
DAMPER,30X100X3.2
92161-1457
$2.93
92172
SCREW,6X16
92172-0711
$3.02
92200
WASHER,10.2X23X2.5
92200-7506
$3.90
130
BOLT-FLANGED,6X14
130AB0614
$2.49
130A
BOLT-FLANGED,6X14
130BA0614
$1.20
130B
BOLT-FLANGED,10X16
130BA1016
$4.76
130C
BOLT-FLANGED,8X16
130BB0816
$1.71
130D
BOLT-FLANGED,12X60
130BB1260
$8.21
130E
BOLT-FLANGED,12X75
130BB1275
$9.31
130F
BOLT-FLANGED,10X14
130CB1014
$3.39
92210
NUT,12MM
92210-0603
$8.98
