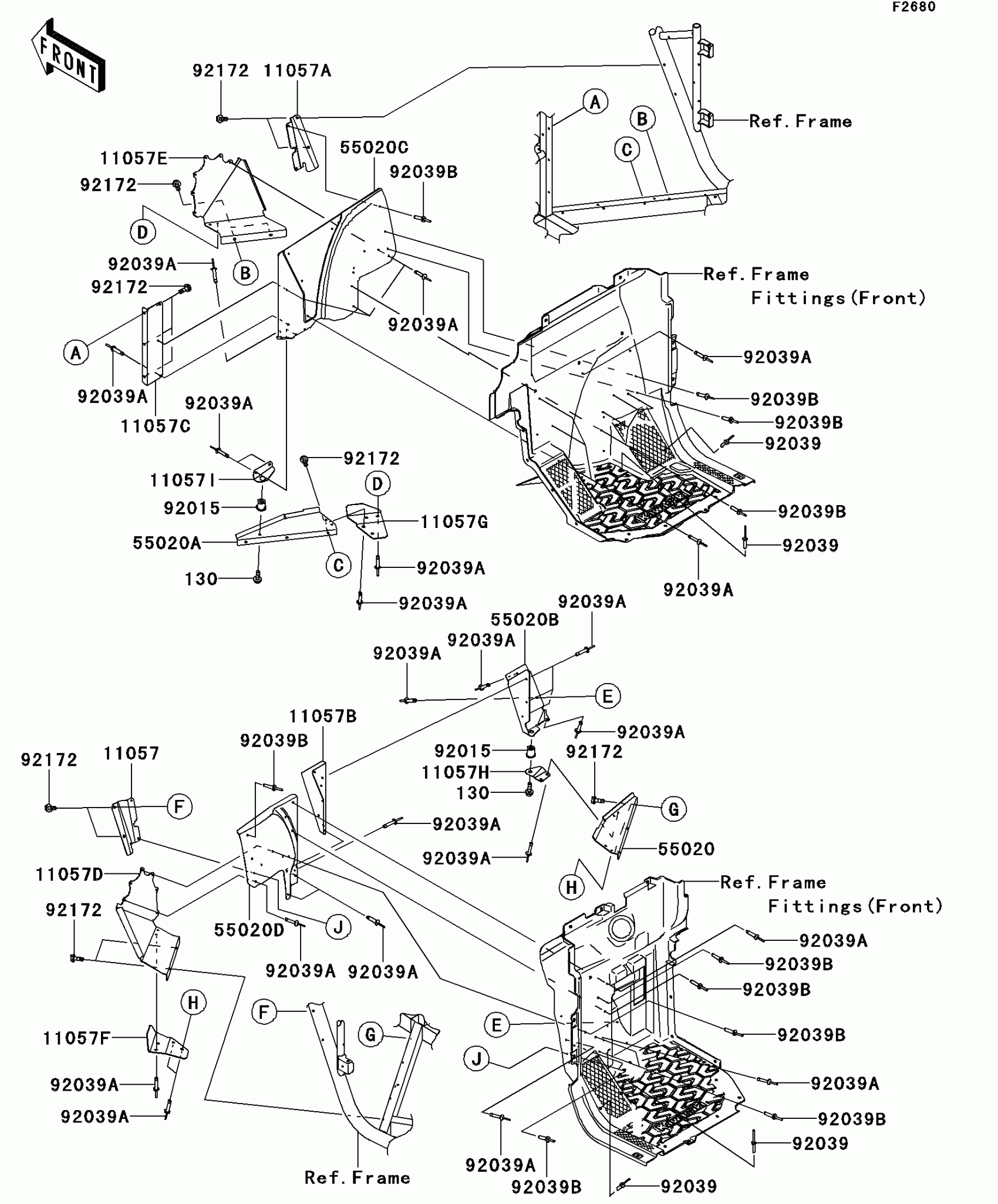

Kawasaki TERYX4™ 750 4x4 EPS Realtree APG HD Guard(s) Diagram

Description

Price

11057

BRACKET

11057-0343

$7.98

11057A

BRACKET

11057-0344

$8.25

11057B

BRACKET

11057-0345

$7.24

11057C

BRACKET

11057-0346

$5.47

11057D

BRACKET

11057-0347

$15.24

11057E

BRACKET

11057-0348

$15.24

11057F

BRACKET

11057-0349

$3.47

11057G

BRACKET

11057-0350

$3.47

11057H

BRACKET

11057-0351

$2.22

11057I

BRACKET

11057-0352

$2.17

130

BOLT-FLANGED,6X18

130BA0618

$1.17

55020

GUARD,FLOOR,LH,IN

55020-1978

$22.31

55020A

GUARD,FLOOR,RH,IN

55020-1979

$22.31

55020B

GUARD,FLOOR COVER

55020-1981

$16.81

55020C

GUARD,FLOOR COVER

55020-1982

$85.49

55020D

GUARD,FLOOR COVER

55020-1983

$65.15

92015

NUT

92015-1700

$6.55

92039

RIVET,4.0X17.5

92039-0703

$0.84

92039A

RIVET,4.8X23.3

92039-0772

$1.39

92039B

RIVET

92039-3778

$0.79

92172

SCREW,TAPPING,6X16

92172-0869

$1.14
