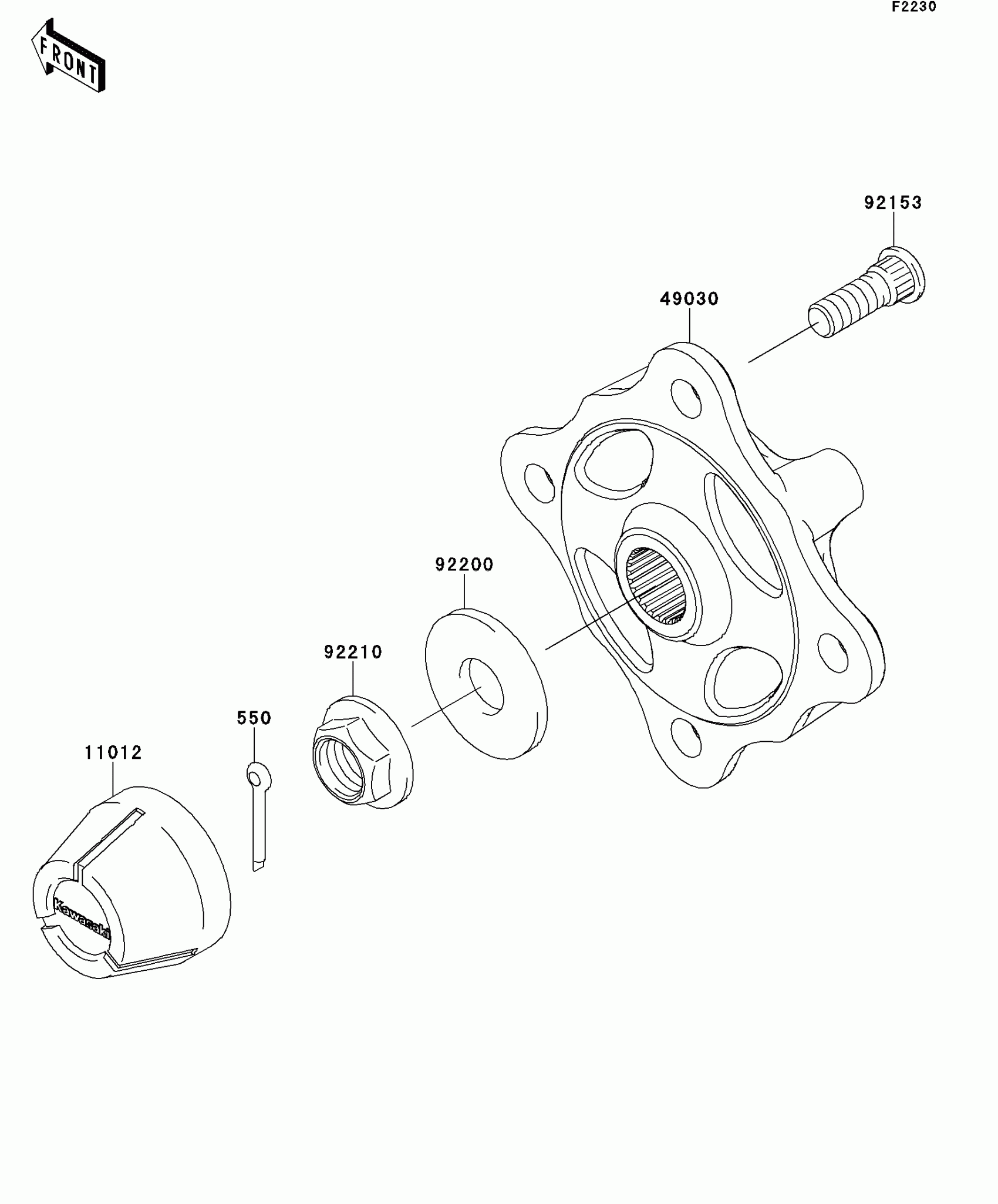

Kawasaki TERYX4™ 750 4x4 EPS Realtree APG HD Front Hubs/Brakes Diagram

#

Description

Price

11012

CAP,WHEEL

11012-1969

$4.27

49030

HUB,FR

49030-0560

$128.46

550

PIN-COTTER,4.0X30

550AA4030

$1.80

92153

BOLT,12MM

92153-1915

$5.05

92200

WASHER,20.3X52X4.5

92200-0130

$14.14

92210

NUT,FLANGED,20MM

92210-2093

$8.47
