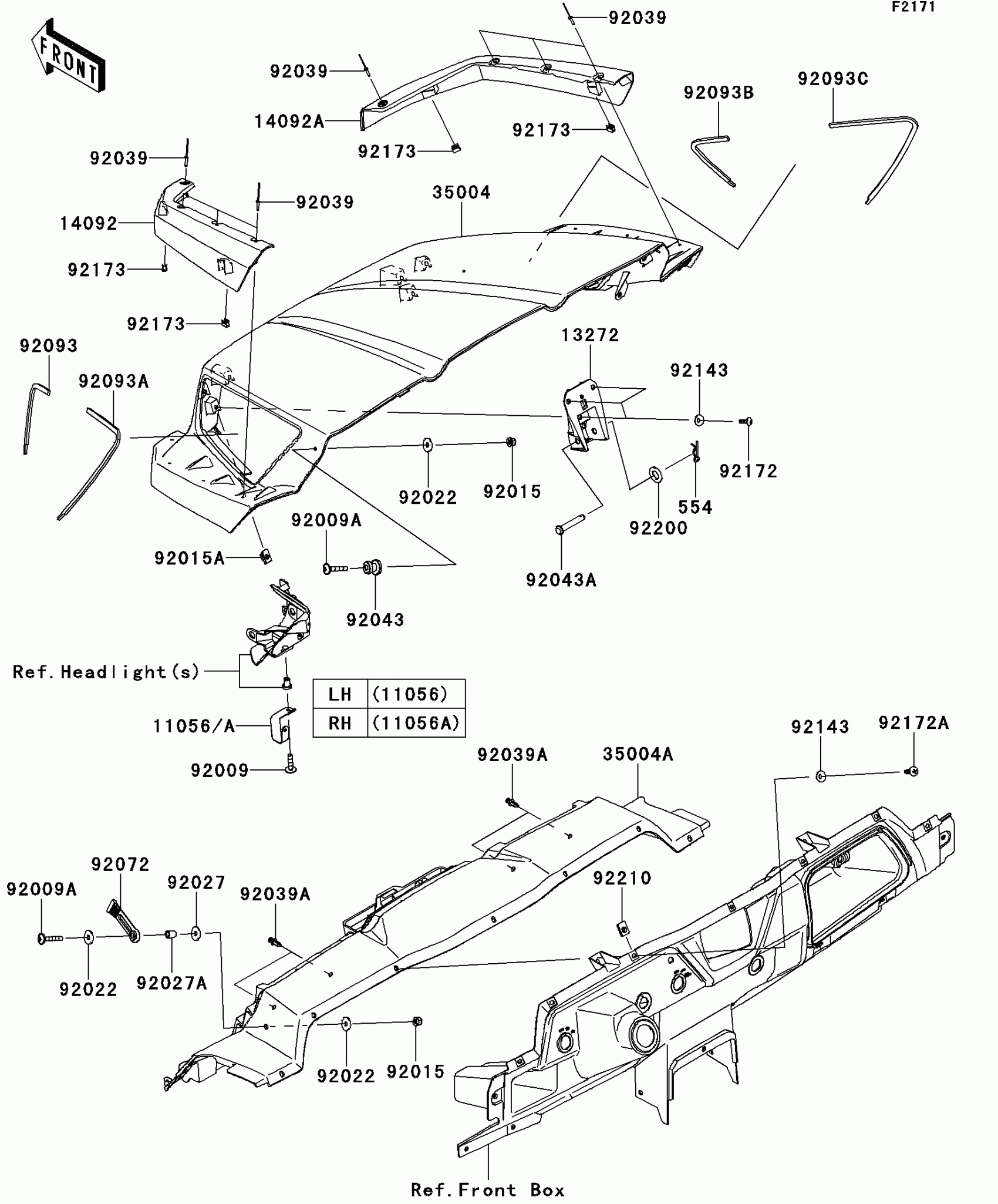

Kawasaki TERYX4™ 750 4x4 EPS Realtree APG HD Front Fender(s) Diagram

Description

Price

11056

BRACKET,LH

11056-0129

$4.20

11056A

BRACKET,RH

11056-0130

$4.20

13272

PLATE

13272-0871

$50.89

14092

COVER,OVER FENDER,LH,CAMO

14092-0802-16P

$117.92

14092A

COVER,OVER FENDER,RH,CAMO

14092-0803-16P

$117.92

35004

FENDER-FRONT,FR,CAMOUFLAGE

35004-0312-16P

$476.16

35004A

FENDER-FRONT,RR,CAMOUFLAGE

35004-0313-16P

$99.66

554

PIN-SNAP,12MM

554DA1200

$2.63

92009

SCREW,6X25

92009-1465

$2.99

92009A

SCREW,6X35

92009-1672

$3.53

92015

NUT,LOCK,FLANGED,6MM

92015-1339

$1.04

92015A

NUT,5MM

92015-1627

$4.47

92022

WASHER,6.5X20X1.6,WHITE

92022-193

$4.21

92027

COLLAR,L=5.1

92027-1260

$4.67

92027A

COLLAR,6.8X10X12

92027-162

$4.93

92039

RIVET,4.9X19.8

92039-0704

Unavailable

92039A

RIVET

92039-1229

$0.80

92043

92043-0197

$2.41

92043A

PIN,12.4X72.4

92043-0716

$7.15

92072

BAND

92072-0144

$5.73

92093

SEAL,FR,LH

92093-0168

$7.42

92093A

SEAL,RR,LH

92093-0169

$7.42

92093B

SEAL,FR,RH

92093-0170

$7.42

92093C

SEAL,RR,RH

92093-0171

$7.42

92143

COLLAR

92143-1087

$2.98

92172

SCREW,5X16

92172-0322

$1.57

92172A

SCREW,TAPPING,6X20

92172-0488

$2.11

92173

CLAMP

92173-0104

$2.69

92200

WASHER,13X24X2

92200-0451

$2.42

92210

NUT,LEAF SPRING,6MM

92210-0624

$1.66
