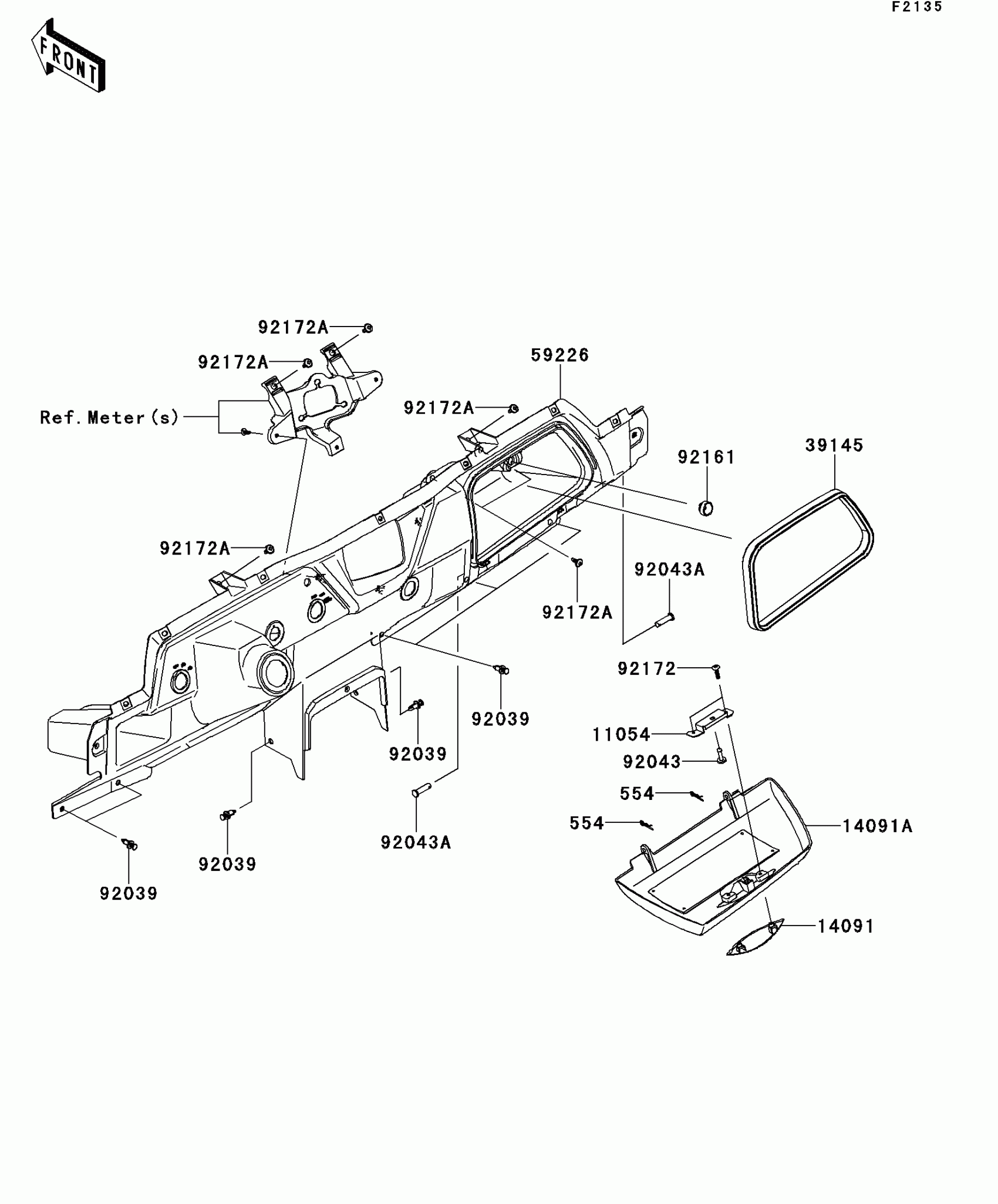

Kawasaki TERYX4™ 750 4x4 EPS Realtree APG HD Front Box Diagram

Description

Price

11054

BRACKET

11054-1789

$4.12

14091

COVER,STORAGE CAP,F.BLACK

14091-0700-6Z

$5.41

14091A

COVER,STORAGE,F.BLACK

14091-0985-6Z

$30.52

39145

TRIM-SEAL,L=940

39145-0029

$18.54

554

PIN-SNAP,1.2X21.2

554DA0600

$0.79

59226

PANEL-CONTROL

59226-0713

Unavailable

92039

RIVET

92039-1229

$0.80

92043

92043-0138

$8.54

92043A

PIN,6X23

92043-0164

$4.17

92161

DAMPER

92161-0568

$1.08

92172

SCREW,TAPPING,4X16

92172-0347

$1.32

92172A

SCREW,6X16

92172-0711

$2.11
