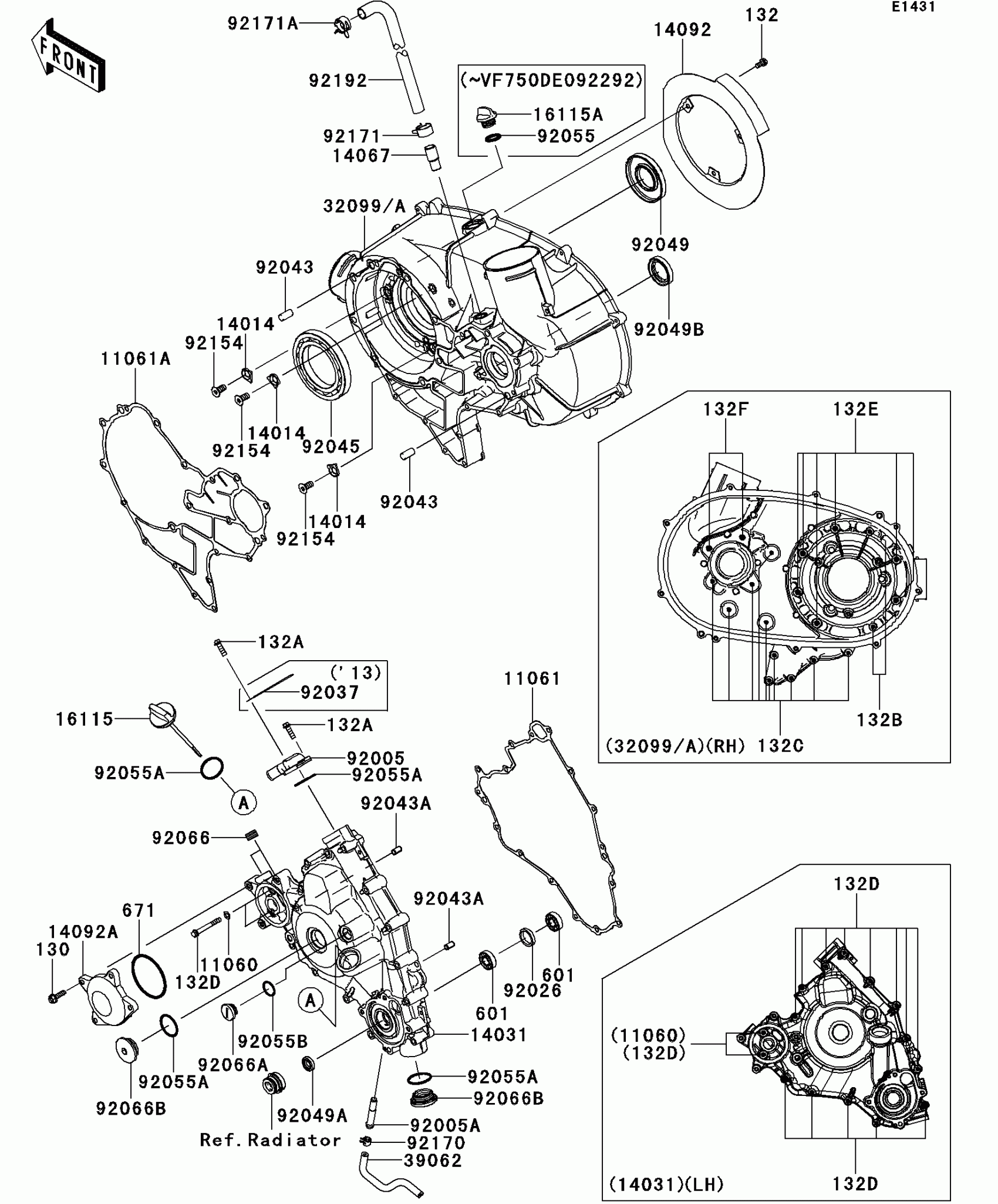

Kawasaki TERYX4™ 750 4x4 EPS Realtree APG HD Engine Cover(s) Diagram

#

Description
Price

11060

GASKET,6.2X12X0.3

11060-1994

$1.71

11061

GASKET,GENERATOR COVER

11061-0728

$28.70

11061A

GASKET,CVT CASE

11061-0729

$37.39

130

BOLT-FLANGED,6X22

130CD0622

$0.86

132

BOLT-FLANGED-SMALL,6X12

132BD0612

$1.49

14014

PLATE-POSITION

14014-0556

$3.93

14031

COVER-GENERATOR

14031-0552

$200.91

14067

FITTING,BREATHER

14067-006

$19.78

14092

COVER

14092-0708

$23.44

14092A

COVER,OIL COOLER

14092-0877

$45.84

16115

CAP-OIL FILLER

16115-0705

$41.83

32099A

CASE,CVT

32099-0726

Unavailable

39062

HOSE-COOLING,DRAIN

39062-0598

$3.80

92005

FITTING

92005-0712

$21.53

92005A

FITTING

92005-1264

$7.44

92026

SPACER,22X28X5

92026-0711

$13.61

92037

CLAMP

92037-1993

$4.18

92043

PIN,10X20

92043-0142

$3.51

92043A

PIN,6.2X8X14

92043-1263

$0.46

92045

BEARING-BALL,16014CS45

92045-0709

$76.67

92049

SEAL-OIL,35X77X9

92049-0713

$13.51

92049A

SEAL-OIL,SC 12X22X5

92049-1228

$7.08

92049B

SEAL-OIL,HTC 30X45X8

92049-1575

$12.45

92055A

RING-O,31.2X2.4

92055-0724

$2.76

92055B

RING-O,20X2

92055-1146

$6.55

92066

PLUG,PT3/8X10

92066-0003

$2.66

92066A

PLUG,COVER

92066-0011

$12.09

92066B

PLUG

92066-0712

$9.92

92154

BOLT,FLAT,8X13.6

92154-0978

$3.36

92170

CLAMP

92170-1493

$3.81

92171

CLAMP

92171-0329

$6.77

92171A

CLAMP

92171-1277

$2.25

92192

TUBE,BREATHER

92192-0945

$13.88

132A

BOLT-FLANGED-SMALL,6X20

132BD0620

$3.14

132B

BOLT-FLANGED-SMALL,6X30

132BD0630

$2.79

132C

BOLT-FLANGED-SMALL,6X45

132BD0645

$4.17

132D

BOLT-FLANGED-SMALL,6X50

132BD0650

$4.24

132E

BOLT-FLANGED-SMALL,8X35

132BD0835

$3.97

132F

BOLT-FLANGED-SMALL,8X50

132BD0850

$2.44

601

BEARING-BALL

601A6001

$8.88

671

O RING,65MM

671B2565

$6.75
