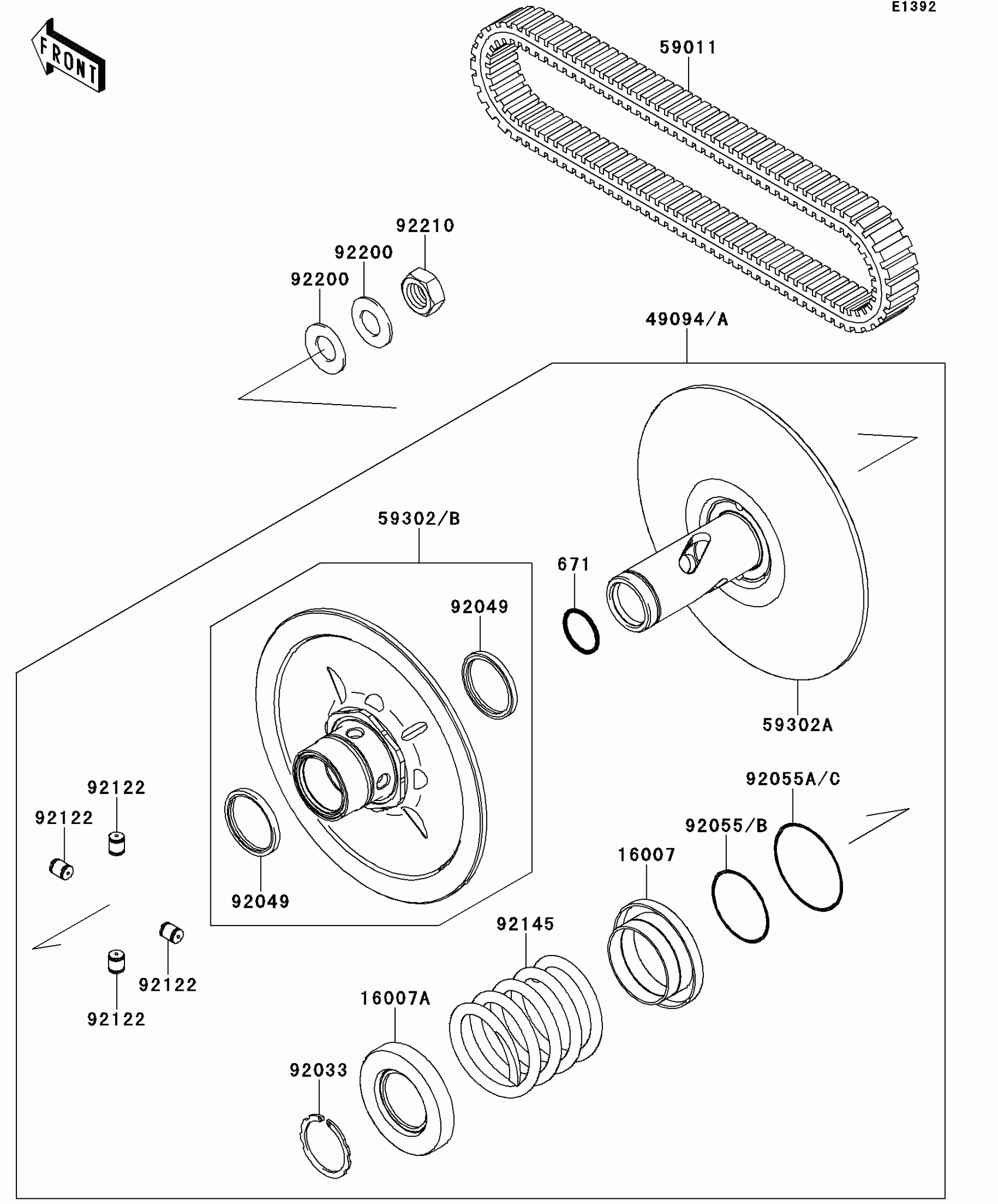

Kawasaki TERYX4™ 750 4x4 EPS Realtree APG HD Driven Converter/Drive Belt Diagram

Description

Price

16007

SEAT-SPRING,MOVABLE

16007-0049

$17.14

16007A

SEAT-SPRING,FIXED

16007-0050

$14.76

49094A

CONVERTER-ASSY-DRIVEN

49094-0085

$734.85

59011

BELT,CVT

59011-0031

$166.93

59302

SHEAVE-COMP,MOVABLE

59302-0040

$353.86

59302A

SHEAVE-COMP,FIXED

59302-0075

$353.83

671

O RING

671D2530

$5.79

92033

RING-SNAP

92033-1317

$6.12

92049

SEAL-OIL

92049-1528

$16.41

92055B

RING-O,46.4X3.1

92055-0752

$4.41

92055C

RING-O,59.5X2.4

92055-0753

$4.10

92122

ROLLER

92122-0043

$13.49

92145

SPRING

92145-0822

$53.67

92200

WASHER

92200-1505

$5.00

92210

NUT,18MM

92210-1367

$8.36
