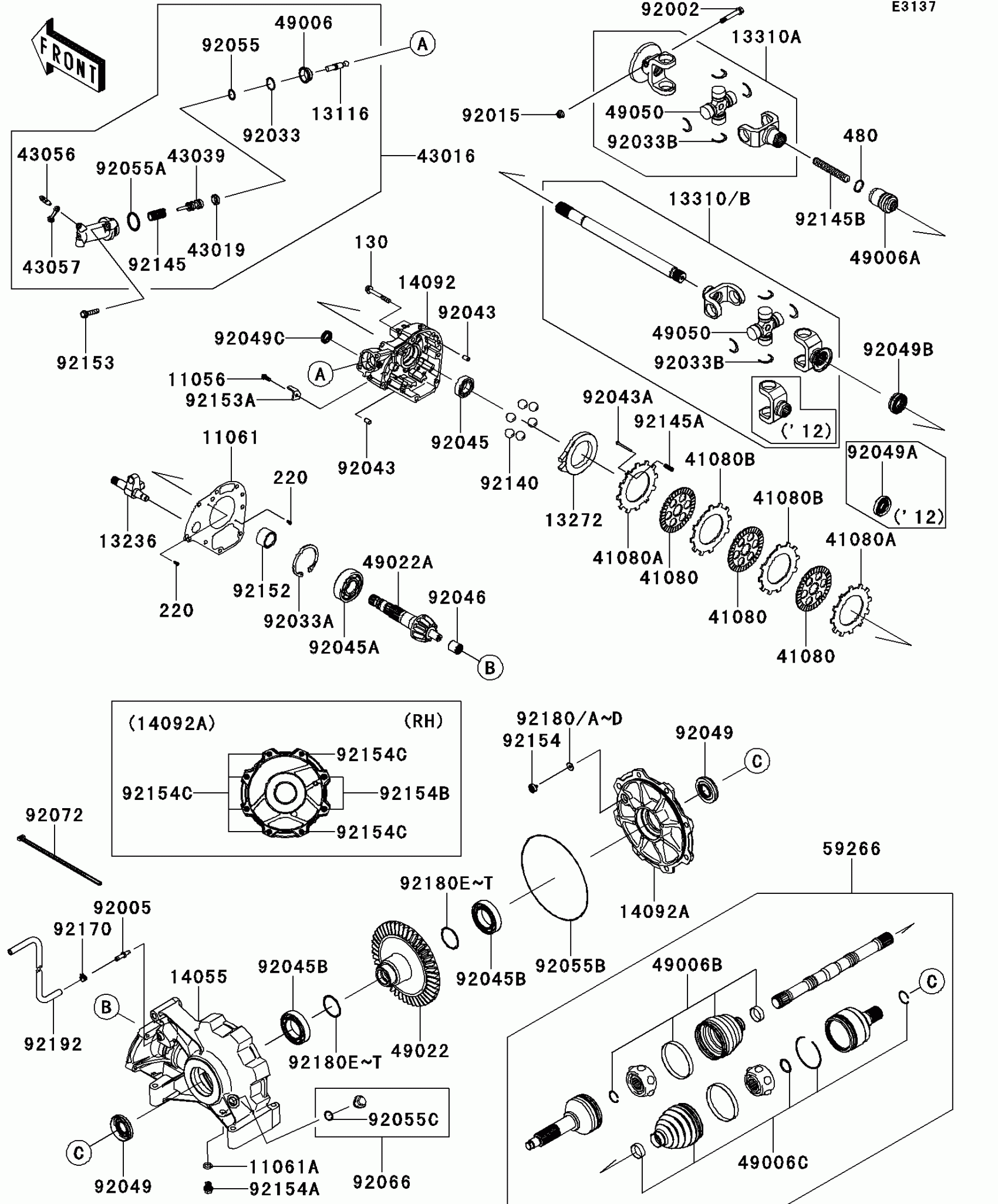

Kawasaki TERYX4™ 750 4x4 EPS Realtree APG HD Drive Shaft-Rear Diagram

#

Description
Price

11056

BRACKET

11056-1447

$2.14

11061

GASKET,FR COVER

11061-0270

$28.61

11061A

GASKET,DRAIN

11061-0759

$0.66

13116

ROD-PUSH

13116-0026

$38.57

13236

LEVER-COMP,BRAKE

13236-0706

$98.38

13272

PLATE,CAM

13272-1203

$28.50

13310

SHAFT-ASSY,GEAR ASSY SIDE

13310-0029

$416.01

13310A

SHAFT-ASSY,ENGINE SIDE

13310-0555

$330.60

14055

CASE-GEAR

14055-0599

$370.95

14092

COVER,FR

14092-0128

$146.02

14092A

COVER

14092-0846

Unavailable

41080

DISC,FRICTION

41080-1482

$44.05

41080A

DISC,PRESSURE

41080-1483

$14.18

41080B

DISC,SEPARATER

41080-1484

$14.18

43016

CYLINDER-MASTER

43016-0556

$272.58

43019

CUP-BRAKE

43019-0002

$4.92

43039

PISTON-BRAKE

43039-0006

$42.76

43056

BREATHER-BRAKE

43056-1056

$10.86

43057

CAP-BREATHER

43057-1001

$3.73

49006

BOOT

49006-0072

$9.86

49006A

BOOT

49006-0089

$31.02

49006B

BOOT,OUTSIDE

49006-0556

$98.62

49006C

BOOT,INSIDE

49006-0557

Unavailable

49022

GEAR-BEVEL,44T

49022-0567

$392.30

49022A

GEAR-BEVEL,10T

49022-0568

Unavailable

49050

SPIDER

49050-0027

$103.18

59266

JOINT-BALL,REAR

59266-0703

Unavailable

92002

BOLT

92002-1221

$6.25

92005

FITTING,BREATHER

92005-0729

$14.37

92015

NUT,8MM

92015-1432

$4.93

92033

RING-SNAP

92033-0055

$3.49

92033A

RING-SNAP

92033-0713

$5.86

92033B

RING-SNAP

92033-0718

Unavailable

92043

PIN,8X14

92043-1567

$1.62

92043A

PIN,3X35

92043-1617

$1.73

92045

BEARING-BALL,#6005

92045-0077

Unavailable

92045A

BEARING-BALL,6306

92045-0721

$57.34

92045B

BEARING-BALL,TMB009

92045-0728

$47.34

92046

BEARING-NEEDLE,16NQ2322A

92046-0606

$28.95

92049

SEAL-OIL,33X60X11

92049-0721

$12.76

92049B

SEAL-OIL,25X45X9.5

92049-0739

$10.25

92049C

SEAL-OIL,TC17X28X6

92049-1537

$8.98

92055

RING-O

92055-0146

$4.95

92055A

RING-O

92055-0147

$7.61

92055B

RING-O

92055-0722

Unavailable

92055C

RING-O,20X2.5

92055-0754

$1.66

92066

PLUG

92066-0728

$3.41

92072

BAND,L=250

92072-1237

$1.55

92140

BALL,D/O#12

92140-1064

$1.71

92145

SPRING

92145-0882

$14.81

92145A

SPRING,RR BRAKE

92145-1301

$1.36

92145B

SPRING,PROPELLER SHAFT

92145-1304

$2.25

92152

COLLAR

92152-1525

$13.31

92153

BOLT,FLANGED,8X40

92153-1727

$7.69

92153A

BOLT,FLANGED-SMALL,6X16

92153-1729

$1.81

92154

BOLT,BUTTON

92154-0831

$3.93

92154A

BOLT,DRAIN

92154-0832

$1.73

92154B

BOLT,FLANGED,10X40

92154-0833

$1.73

92154C

BOLT,FLANGED,10X40

92154-0834

$1.73

92170

CLAMP

92170-2043

$0.93

92180

SHIM,T=1.3

92180-0721

Unavailable

92180A

SHIM,T=1.4

92180-0722

Unavailable

92180B

SHIM,T=1.5

92180-0723

$4.63

92180C

SHIM,T=1.6

92180-0724

Unavailable

92180D

SHIM,T=1.7

92180-0725

Unavailable

92180E

SHIM,T=0.965

92180-0738

Unavailable

92180F

SHIM,T=0.991

92180-0739

Unavailable

92180G

SHIM,T=1.016

92180-0740

Unavailable

92180H

SHIM,T=1.041

92180-0741

Unavailable

92180I

SHIM,T=1.067

92180-0742

Unavailable

92180J

SHIM,T=1.092

92180-0743

$4.63

92180K

SHIM,T=1.118

92180-0744

Unavailable

92180L

SHIM,T=1.143

92180-0745

Unavailable

92180M

SHIM,T=1.168

92180-0746

Unavailable

92180N

SHIM,T=1.194

92180-0747

Unavailable

92180O

SHIM,T=1.219

92180-0748

Unavailable

92180P

SHIM,T=1.245

92180-0749

Unavailable

92180Q

SHIM,T=1.270

92180-0750

Unavailable

130

BOLT-FLANGED,8X60

130CA0860

$1.28

220

SCREW-PAN-CROS,4X8

220AA0408

$0.63

480

CIRCLIP-TYPE-C,25MM

480J2500

$1.47

92180R

SHIM,T=1.295

92180-0751

Unavailable

92180S

SHIM,T=1.321

92180-0752

Unavailable

92180T

SHIM,T=1.346

92180-0753

Unavailable

92192

TUBE,BREATHER

92192-1041

$13.49
