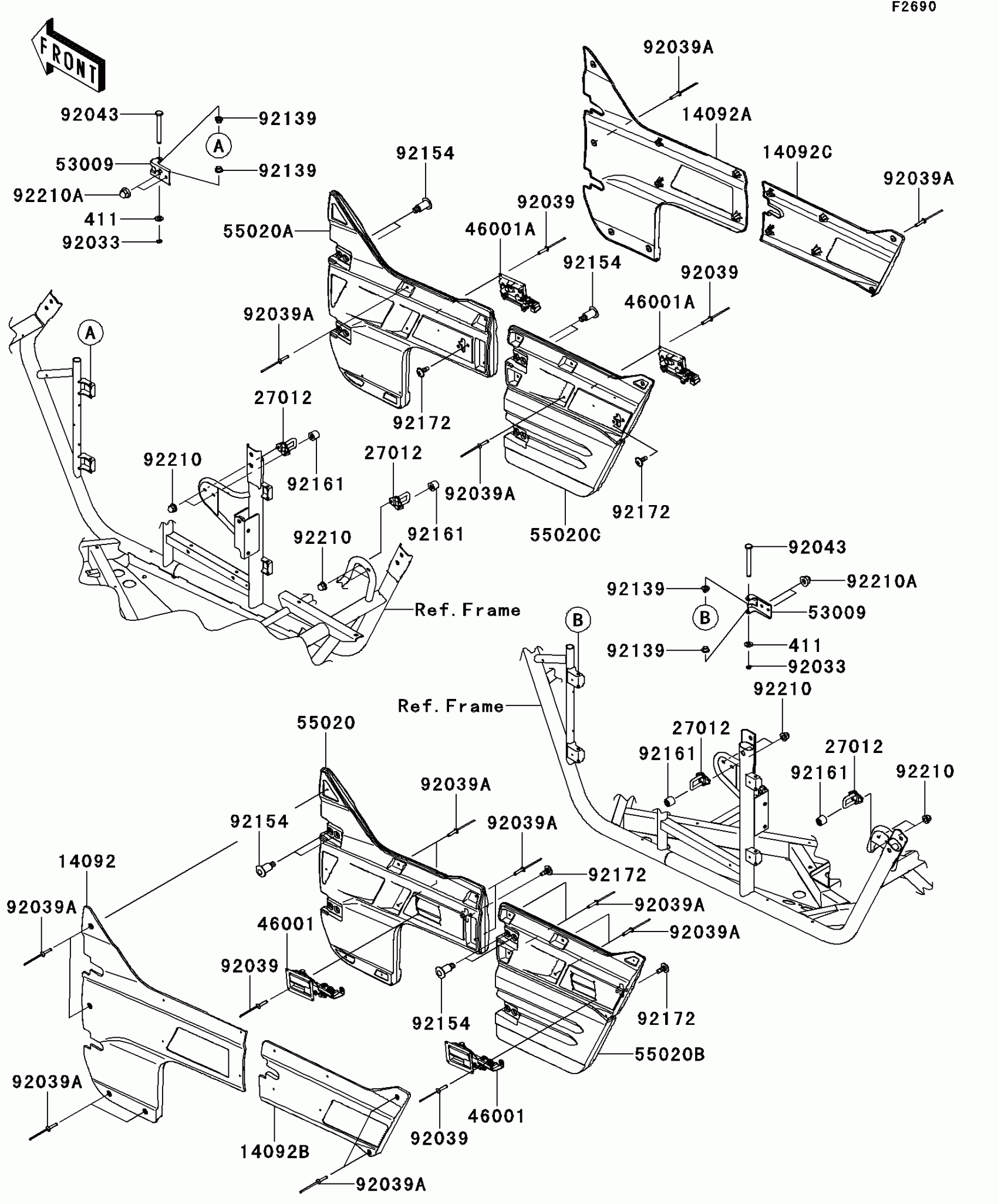

Kawasaki TERYX4™ 750 4x4 EPS Realtree APG HD Door Diagram

Description

Price

14092

COVER,SIDE GUARD,FR,LH,CAMO

14092-0806-16P

$343.00

14092A

COVER,SIDE GUARD,FR,RH,CAMO

14092-0807-16P

$343.00

14092B

COVER,SIDE GUARD,RR,LH,CAMO

14092-0808-16P

$224.15

14092C

COVER,SIDE GUARD,RR,RH,CAMO

14092-0809-16P

$224.15

27012

HOOK

27012-0705

$7.52

411

WASHER-PLAIN,6MM

411AB0600

$1.18

46001

HANDLE-ASSY,SIDE GUARD,LH

46001-0556

$76.22

46001A

HANDLE-ASSY,SIDE GUARD,RH

46001-0557

$76.22

53009

HINGE

53009-0303

$6.27

55020

GUARD,SIDE,FR,LH

55020-0737

$133.43

55020A

GUARD,SIDE,FR,RH

55020-0738

$133.43

55020B

GUARD,SIDE,RR,LH

55020-0739

$133.43

55020C

GUARD,SIDE,RR,RH

55020-0740

$133.43

92033

RING-SNAP

92033-0719

$0.84

92039

RIVET,4.0X17.5

92039-0703

$0.99

92039A

RIVET,4.9X19.8

92039-0704

$1.86

92043

PIN,6X56

92043-0743

$4.10

92139

BUSHING,6X8X6

92139-0709

$2.99

92154

BOLT,SOCKET,8X30

92154-0712

$6.05

92161

DAMPER,9X28X24.3

92161-1456

$3.71

92172

SCREW,6X16

92172-0711

$3.02

92210

NUT,CAP,6MM

92210-0003

$0.64

92210A

NUT,CAP,8MM

92210-0488

$3.29
