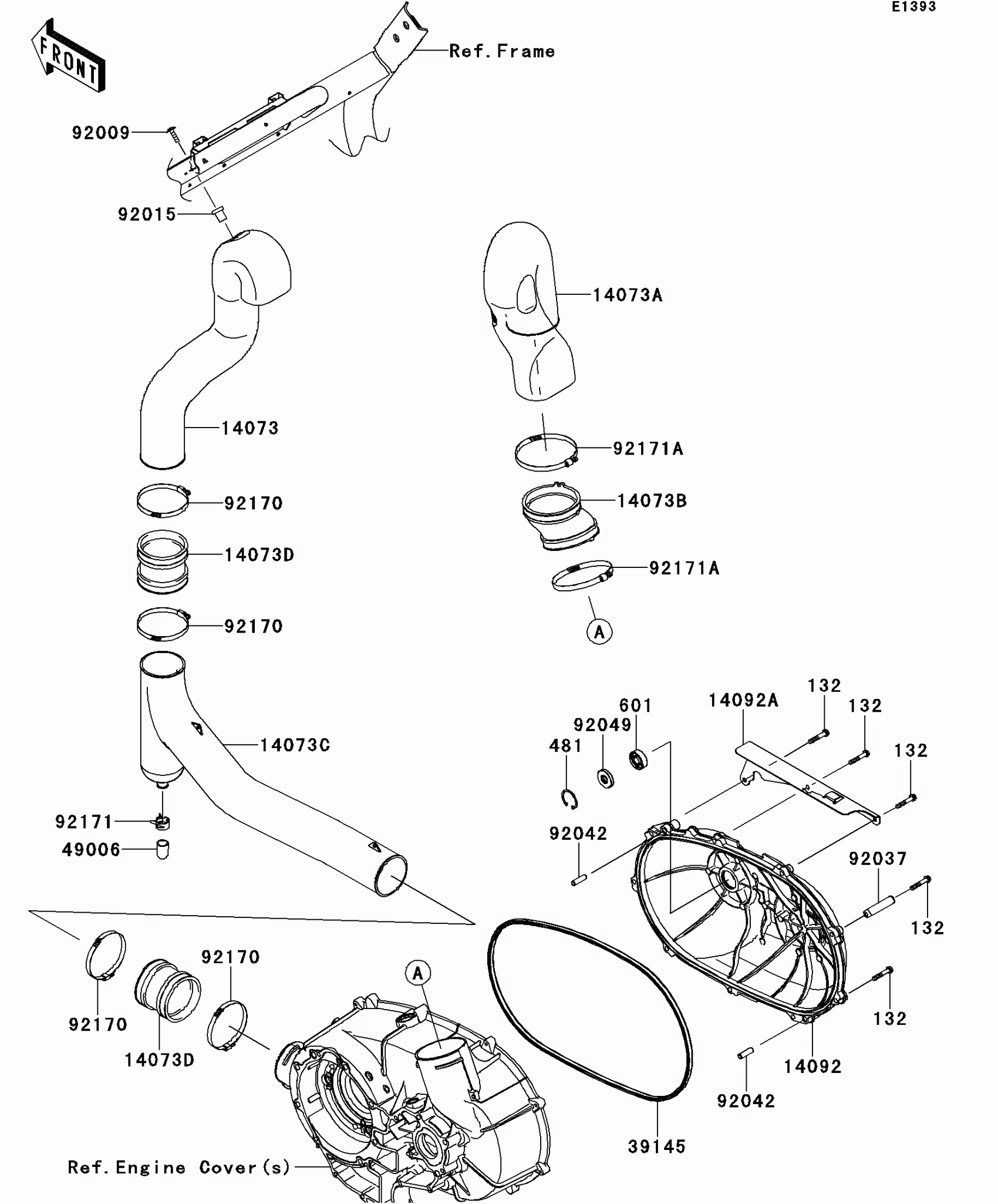

Kawasaki TERYX4™ 750 4x4 EPS Realtree APG HD Converter Cover Diagram

Description

Price

132

BOLT-FLANGED-SMALL,6X35

132BA0635

$1.49

14073

DUCT,INTAKE

14073-0305

$37.30

14073A

DUCT,EXHAUST

14073-0306

$28.90

14073B

DUCT,JOINT

14073-0307

$9.88

14073C

DUCT,INTAKE,LWR

14073-0716

$30.14

14073D

DUCT,JOINT

14073-1805

Unavailable

14092

COVER,CVT

14092-0266

$154.97

14092A

COVER,HEAT GUARD

14092-0924

$19.56

39145

TRIM-SEAL,CVT COVER

39145-0043

$27.07

481

CIRCLIP-TYPE-C,32MM

481J3200

$1.82

49006

BOOT

49006-0555

$4.02

601

BEARING-BALL

601A6201

$8.12

92009

SCREW,6X22,BLACK

92009-1256

$1.96

92015

NUT,RUBBER,6MM

92015-1692

$5.61

92037

CLAMP

92037-1993

$4.18

92042

PIN,DOWEL,8X28

92042-050

$3.85

92049

SEAL-OIL,12X32X5.8

92049-0167

$6.99

92170

CLAMP

92170-1763

$4.29

92171

CLAMP

92171-1277

$2.25

92171A

CLAMP

92171-1383

$3.35
