Description

Price

11065

CAP

11065-0755

Unavailable

13272

PLATE,BATTERY BOTTOM

13272-1322

$9.43

13280

HOLDER,BATTERY

13280-0709

$7.80

14092

COVER,BATTERY

14092-0753

$7.99

14092A

COVER,BATTERY

14092-0978

$7.99

26004

FUSE-ASSY,40A

26004-1093

$4.11

26006

FUSE,MINI BLADE,15A,BLUE

26006-0001

$6.12

26006A

FUSE,MINI BLADE,10A,RED

26006-0009

Unavailable

26006B

FUSE,SLOW BLOW,BT,40A,GREEN

26006-0014

$5.24

26006C

FUSE,MINI BLADE,30A,GREEN

26006-1080

$4.87

26011

WIRE-LEAD,HEAD LAMP,LH

26011-0276

$58.61

26011A

WIRE-LEAD,BATTERY(-)

26011-0713

$30.60

26011B

WIRE-LEAD,BATTERY(+)

26011-0714

$53.24

26011C

WIRE-LEAD,BATTERY(-)

26011-0725

Unavailable

26011D

WIRE-LEAD,BATTERY(+)

26011-0726

Unavailable

26011E

WIRE-LEAD,HEAD LAMP,RH

26011-0759

$50.58

26012

BATTERY,12V 14AH

26012-0107

Unavailable

26012A

BATTERY,YTX20L-BS,12V 18AH

26012-3730

Unavailable

26031A

HARNESS,MAIN

26031-1179

$752.89

26031B

HARNESS,SUB,TPS

26031-1264

$28.09

26031C

HARNESS,SUB

26031-1439

$84.80

27002

RELAY-ASSY

27002-1062

$45.39

27002A

RELAY-ASSY

27002-1086

$36.91

39156

PAD,175X94X3

39156-0837

Unavailable

39156A

PAD,15X72X5

39156-0838

Unavailable

56030

LABEL,FUSE BOX,30A

56030-0404

$3.77

56030A

LABEL,FUSE BOX

56030-0703

$3.77

92015

NUT,FLANGED,8MM

92015-1406

$4.45

130

BOLT-FLANGED,6X16

130BA0616

$1.20

92072A

BAND,L=218

92072-032

$5.00

92072B

BAND

92072-0707

$7.59

92072C

BAND,OS170-FT7(BLACK)

92072-1414

$3.74

92072D

BAND,L=292.1

92072-3509

Unavailable

92152

COLLAR,10.2X12.7X165.8

92152-1555

$3.21

92154

BOLT,FLANGED,8X185

92154-0889

$9.17

92171

CLAMP,13MM DIA.

92171-1415

$2.03

92172

SCREW,TAPPING,6X16

92172-0739

$0.85

92173

CLAMP,PURSE LOCK

92173-0962

$4.62

92210

NUT,PLATE,6MM

92210-1352

$2.41

99999

BOLT NUT KIT

99999-0311

$10.55

92072

BAND,L=123

92072-030

$5.00

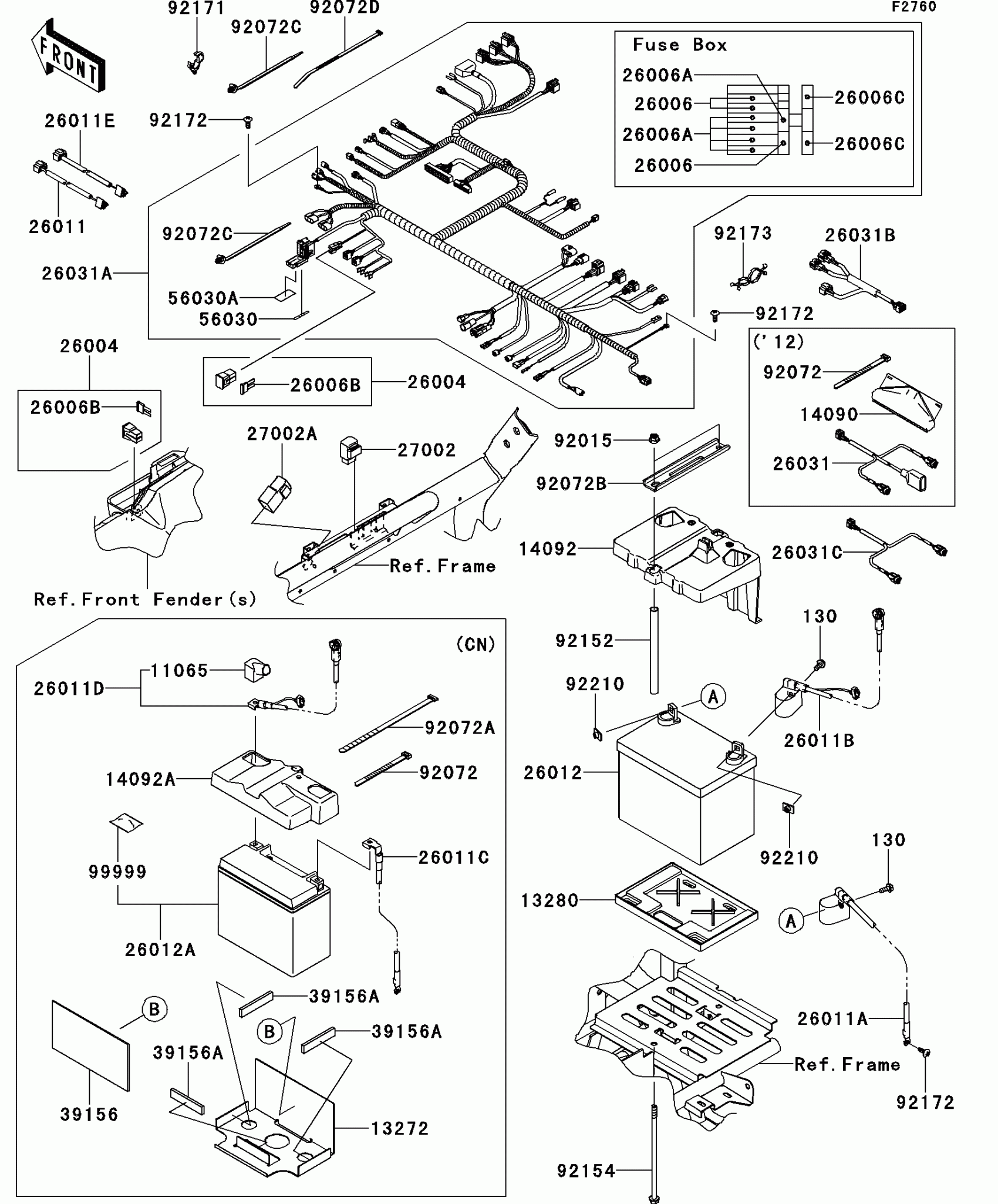

Kawasaki TERYX4™ 750 4x4 EPS Realtree APG HD Chassis Electrical Equipment Diagram

CAP

PLATE,BATTERY BOTTOM

HOLDER,BATTERY

COVER,BATTERY

COVER,BATTERY

FUSE-ASSY,40A

FUSE,MINI BLADE,15A,BLUE

FUSE,MINI BLADE,10A,RED

FUSE,SLOW BLOW,BT,40A,GREEN

FUSE,MINI BLADE,30A,GREEN

WIRE-LEAD,HEAD LAMP,LH

WIRE-LEAD,BATTERY(-)

WIRE-LEAD,BATTERY(+)

WIRE-LEAD,BATTERY(-)

WIRE-LEAD,BATTERY(+)

WIRE-LEAD,HEAD LAMP,RH

BATTERY,12V 14AH

BATTERY,YTX20L-BS,12V 18AH

HARNESS,MAIN

HARNESS,SUB,TPS

HARNESS,SUB

RELAY-ASSY

RELAY-ASSY

PAD,175X94X3

PAD,15X72X5

LABEL,FUSE BOX,30A

LABEL,FUSE BOX

NUT,FLANGED,8MM

BOLT-FLANGED,6X16

BAND,L=218

BAND

BAND,OS170-FT7(BLACK)

BAND,L=292.1

COLLAR,10.2X12.7X165.8

BOLT,FLANGED,8X185

CLAMP,13MM DIA.

SCREW,TAPPING,6X16

CLAMP,PURSE LOCK

NUT,PLATE,6MM

BOLT NUT KIT

BAND,L=123
