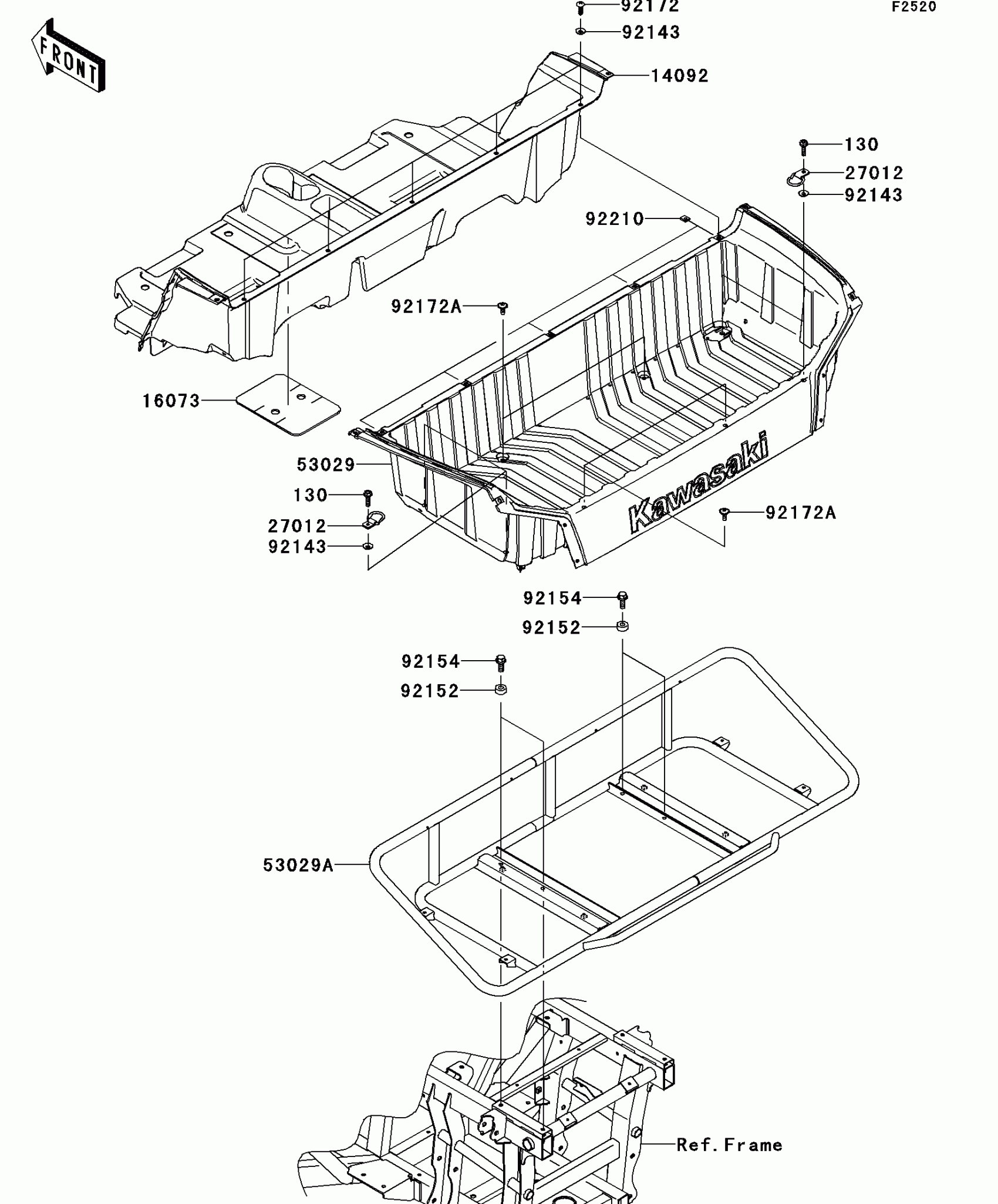

Kawasaki TERYX4™ 750 4x4 EPS Realtree APG HD Carrier(s) Diagram

Description

Price

130

BOLT-FLANGED,6X22

130BB0622

$2.79

14092

COVER,RR CONSOLE

14092-0709

Unavailable

16073

INSULATOR,CENTER CONSOLE

16073-0721

$30.01

27012

HOOK

27012-0734

$2.00

53029

CARRIER

53029-0309

$247.28

53029A

CARRIER,FRAME

53029-0310

$329.61

92143

COLLAR

92143-1087

$2.98

92152

COLLAR,8.2X18X8

92152-1553

$5.15

92154

BOLT,FLANGED,8X20

92154-0100

$2.41

92172

SCREW,TAPPING,6X20

92172-0488

$2.11

92172A

SCREW,6X16

92172-0711

$2.11

92210

NUT,LEAF SPRING,6MM

92210-0624

$1.66
