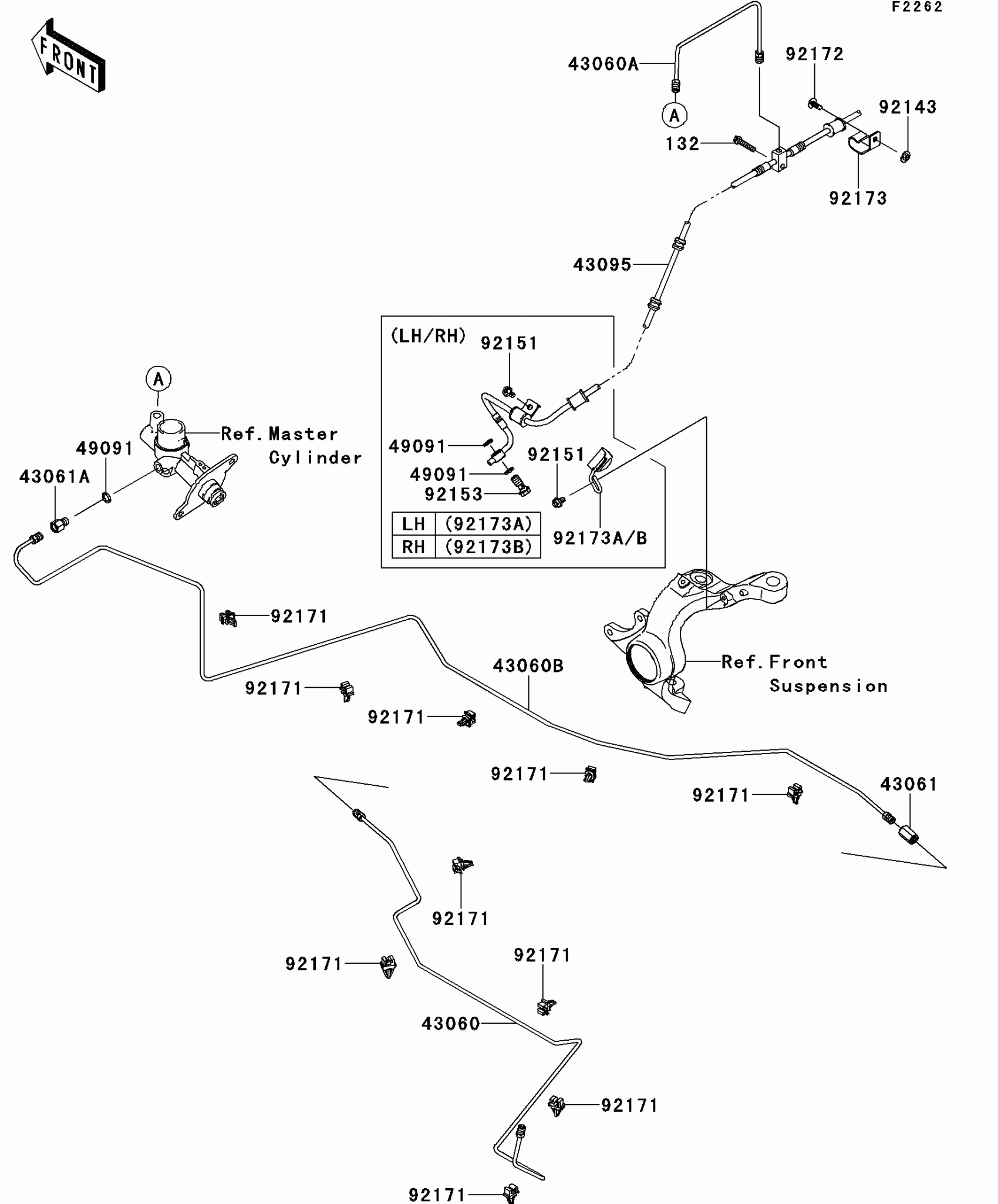

Kawasaki TERYX4™ 750 4x4 EPS Realtree APG HD Brake Piping Diagram

Description

Price

132

BOLT-FLANGED-SMALL,6X30

132BA0630

$1.87

43060

PIPE-BRAKE,JOINT-BRAKE

43060-0311

$39.03

43060A

PIPE-BRAKE,M/C-FR JOINT

43060-0314

$22.36

43060B

PIPE-BRAKE,M/C-JOINT

43060-0315

Unavailable

43061

JOINT-BRAKE

43061-0003

$47.25

43061A

JOINT-BRAKE,M/C

43061-0302

$33.87

43095

HOSE-BRAKE

43095-0618

$206.98

49091

WASHER-SEAL,10.1X14.5X1.5

49091-0001

$1.57

92143

COLLAR

92143-1087

$2.98

92151

BOLT,6X10

92151-1344

$1.76

92153

BOLT,OIL,L=23

92153-0627

$4.15

92171

CLAMP

92171-0805

$3.51

92172

SCREW,TAPPING,6X16

92172-0739

$0.73

92173

CLAMP

92173-0930

$7.51

92173A

CLAMP,LH

92173-0934

$9.78

92173B

CLAMP,RH

92173-0935

$9.78
