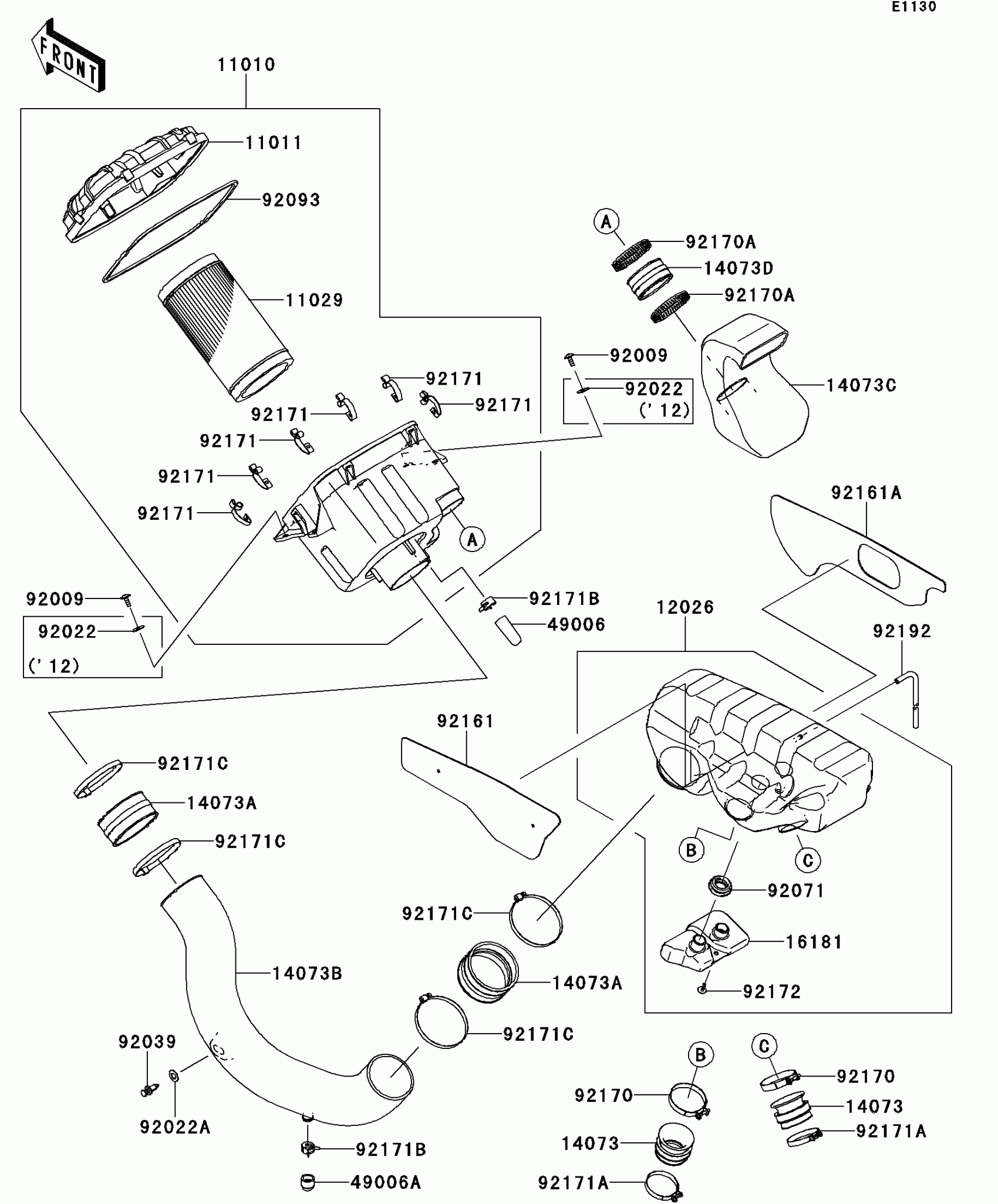

Kawasaki TERYX4™ 750 4x4 EPS Realtree APG HD Air Cleaner Diagram

Description

Price

11010

FILTER-ASSY-AIR

11010-0744

Unavailable

11011

CASE-AIR FILTER

11011-0718

Unavailable

11029

ELEMENT-ASSY-AIR FILTER

11029-0724

Unavailable

12026

CHAMBER

12026-0703

$144.59

14073

DUCT

14073-0160

$7.89

14073A

DUCT,JOINT,A/C SIDE

14073-0258

$8.10

14073B

DUCT,FILTER-CHAMBER

14073-0703

$32.40

14073C

DUCT,INTAKE

14073-0729

Unavailable

14073D

DUCT,JOINT

14073-1775

$4.36

16181

TANK-RESONATOR

16181-0056

$22.96

49006

BOOT

49006-1351

$7.51

49006A

BOOT,DRAIN

49006-3718

$6.62

92009

SCREW,6X16

92009-1621

Unavailable

92022A

WASHER,10.5X20X1

92022-239

$3.92

92039

RIVET

92039-1229

$1.19

92071

GROMMET

92071-1259

$5.95

92093

SEAL

92093-0585

$7.87

92161

DAMPER,CHAMBER,LH

92161-1399

$33.58

92161A

DAMPER,CHAMBER,RH

92161-1400

$36.78

92170

CLAMP

92170-1448

$8.10

92170A

CLAMP

92170-1764

$11.48

92171

CLAMP

92171-0225

$1.97

92171A

CLAMP

92171-0722

$15.20

92171B

CLAMP

92171-1277

$2.75

92171C

CLAMP

92171-3716

$10.24

92172

SCREW

92172-0297

$1.68

92192

TUBE,4X8X320

92192-0953

$6.23
