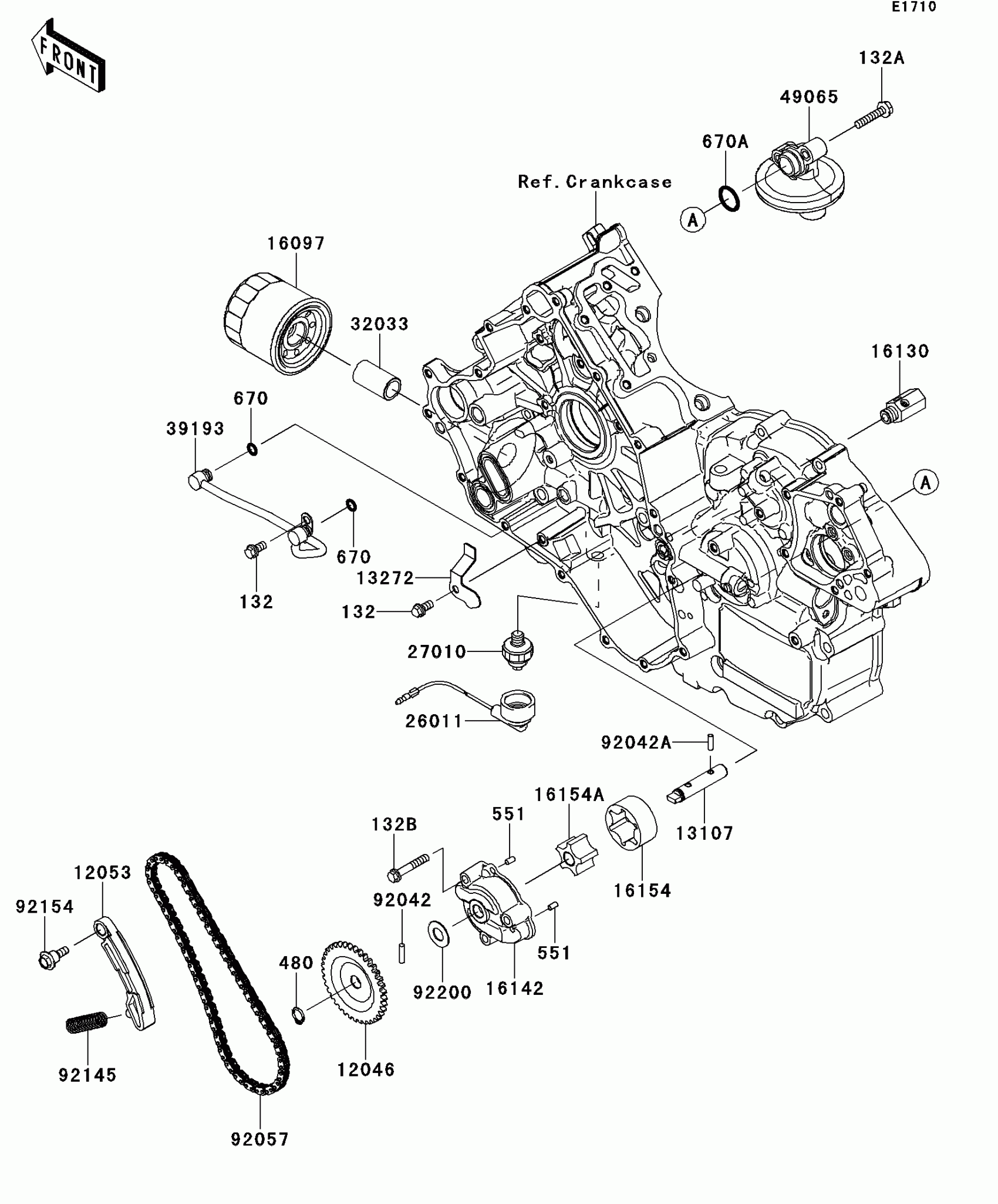

Kawasaki TERYX4™ 750 4x4 EPS Oil Pump/Oil Filter Diagram

Description

Price

12046

SPROCKET,OIL PUMP,37T

12046-0557

$90.38

12053

GUIDE-CHAIN

12053-0180

$22.20

13107

SHAFT,OIL PUMP

13107-0718

$13.36

132

BOLT-FLANGED-SMALL,6X12

132BA0612

$1.20

13272

PLATE

13272-0988

$3.02

132A

BOLT-FLANGED-SMALL,6X30

132BA0630

$2.65

132B

BOLT-FLANGED-SMALL,6X35

132BA0635

$2.06

16097

FILTER-ASSY-OIL

16097-0003

Unavailable

16130

VALVE-ASSY-RELIEF

16130-1058

$41.98

16142

COVER-PUMP

16142-0704

$24.55

16154

ROTOR-PUMP,OUTER

16154-0706

$26.33

16154A

ROTOR-PUMP,INNER

16154-0707

$19.92

26011

WIRE-LEAD

26011-0751

$16.57

27010

SWITCH,OIL PRESSURE

27010-1313

$40.13

32033

PIPE,OIL FILTER

32033-1535

$12.96

39193

PIPE-OIL

39193-0570

$34.00

480

CIRCLIP-TYPE-C,11MM

480J1100

$1.24

49065

FILTER-OIL

49065-0710

$28.70

551

PIN-DOWEL,4X8

551A0408

$0.78

670

O RING,7MM

670D1507

$1.70

670A

O RING,18MM

670D2018

$1.91

92042

PIN,DOWEL,4X16.8

92042-029

$5.71

92042A

PIN,DOWEL,4X13.8

92042-030

$3.92

92057

CHAIN,DID SCR-0409 SV

92057-0561

$28.50

92145

SPRING

92145-0830

$3.70

92154

BOLT,FLANGED,6X8.3

92154-0709

$8.58

92200

WASHER,11.3X23X1

92200-0719

$2.67
