Muffler(s)

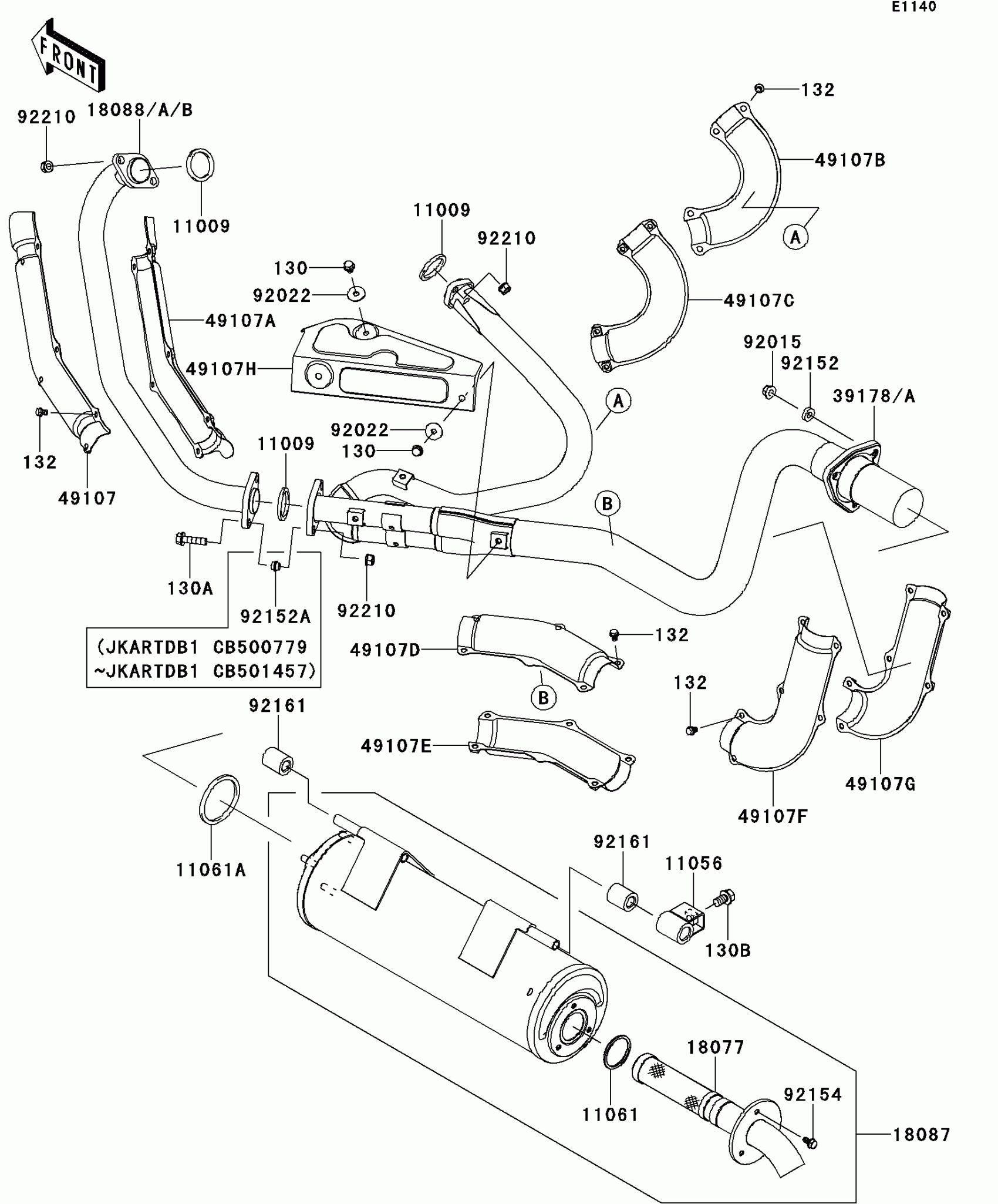

Kawasaki TERYX4™ 750 4x4 EPS Muffler(s) Diagram
#
Description
Price
11009
GASKET,EXHAUST HOLDER
11009-1894
$8.03
11056
BRACKET
11056-0727
$23.87
11061
GASKET,38.9X46.4X3.0
11061-0082
$7.60
11061A
GASKET,PIPE-MUFFLER
11061-0811
$8.81
130
BOLT-FLANGED,6X10
130BD0610
$3.67
130A
BOLT-FLANGED,8X30
130BD0830
$1.94
130B
BOLT-FLANGED,10X16
130CA1016
$3.35
132
BOLT-FLANGED-SMALL,6X8
132BD0608
$3.40
18077
ARRESTER-SPARK
18077-0702
$168.58
18087
MUFFLER
18087-0259
$751.50
18088A
PIPE-EXHAUST
18088-0824
$261.04
39178A
MANIFOLD-COMP-EXHAUST
39178-0185
$1,117.79
49107
COVER-EXHAUST PIPE,FR,LH
49107-0727
$36.59
49107A
COVER-EXHAUST PIPE,FR,RH
49107-0728
$47.21
49107B
COVER-EXHAUST PIPE,MIDDLE,RH
49107-0729
$28.26
49107C
COVER-EXHAUST PIPE,MIDDLE,LH
49107-0730
$33.12
49107D
COVER-EXHAUST PIPE,RR-F,UPP
49107-0731
$30.65
49107E
COVER-EXHAUST PIPE,RR-F,LWR
49107-0732
$36.63
49107F
COVER-EXHAUST PIPE,RR-R,LH
49107-0733
$34.73
49107G
COVER-EXHAUST PIPE,RR-R,RH
49107-0734
$43.92
49107H
COVER-EXHAUST PIPE,MANIFOLD
49107-0739
$49.04
92015
NUT,8MM
92015-1402
$4.69
92022
WASHER,6.5X22X1.6
92022-237
$3.92
92152
COLLAR,8.2X17X4.5
92152-1609
$7.58
92154
BOLT,FLANGED,6X12
92154-0852
$1.19
92161
DAMPER
92161-0961
$24.27
92210
NUT,8MM
92210-1242
$2.41
