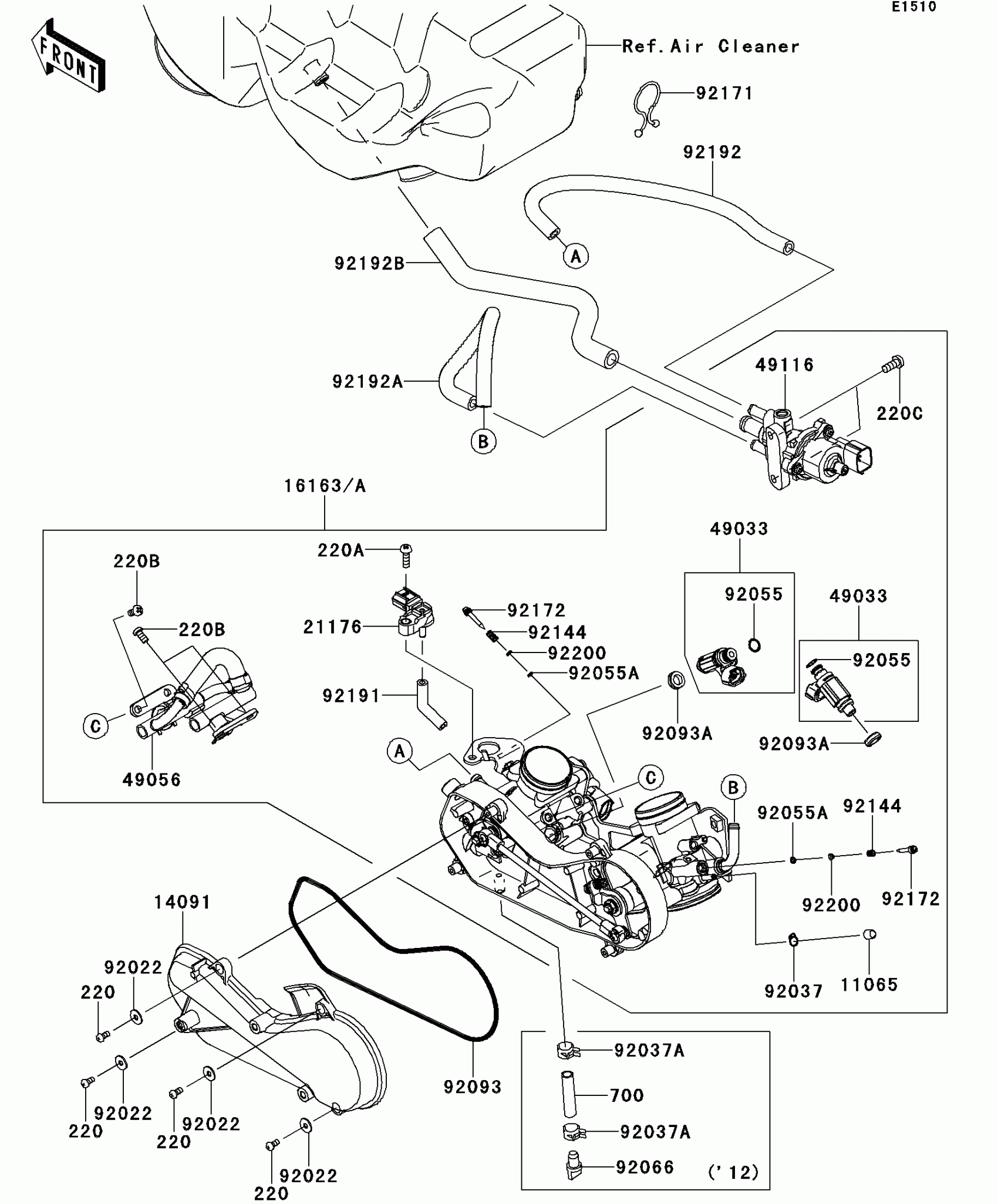

Kawasaki Teryx4™ 750 4x4 EPS LE Throttle Diagram

Description

Price

11065

CAP

11065-0072

$7.20

14091

COVER,THROTTLE LINK

14091-1731

$22.78

16163A

THROTTLE-ASSY,36EIS

16163-0784

$1,063.43

21176

SENSOR,PRESSURE

21176-0111

$222.28

220

SCREW-PAN-CROS,4X8

220AA0408

$0.68

220A

SCREW-PAN-CROS,5X16

220AA0516

$2.06

220B

SCREW-PAN-CROS,6X12

220AA0612

$1.19

220C

SCREW-PAN-CROSS,6X14

220AA0614

$1.48

49033

NOZZLE-INJECTION

49033-0011

$92.32

49056

PIPE-INJECTION

49056-0033

Unavailable

49116

VALVE-ASSY,ISC

49116-0026

$229.17

92022

WASHER,5.2X13X1

92022-1380

$4.31

92037

CLAMP,TUBE

92037-1124

$6.11

92055

RING-O,INJECTION NOZZLE

92055-1622

$1.95

92055A

RING-O,AIR SCREW

92055-1658

$6.00

92093

SEAL

92093-0082

$5.94

92093A

SEAL

92093-0127

$10.56

92144

SPRING,THROTTLE STOP SCREW

92144-1674

$5.74

92171

CLAMP

92171-0876

$2.98

92172

SCREW

92172-0156

$15.20

92191

TUBE,3.2X7.4X70

92191-1552

$4.14

92192

TUBE,ISC-THROTTLE FR

92192-0946

$11.59

92192A

TUBE,ISC-THROTTLE RR

92192-0947

$10.67

92192B

TUBE,ISC-CHAMBER

92192-0948

$12.80

92200

WASHER,PILOT AIR SCREW

92200-1564

$2.58
