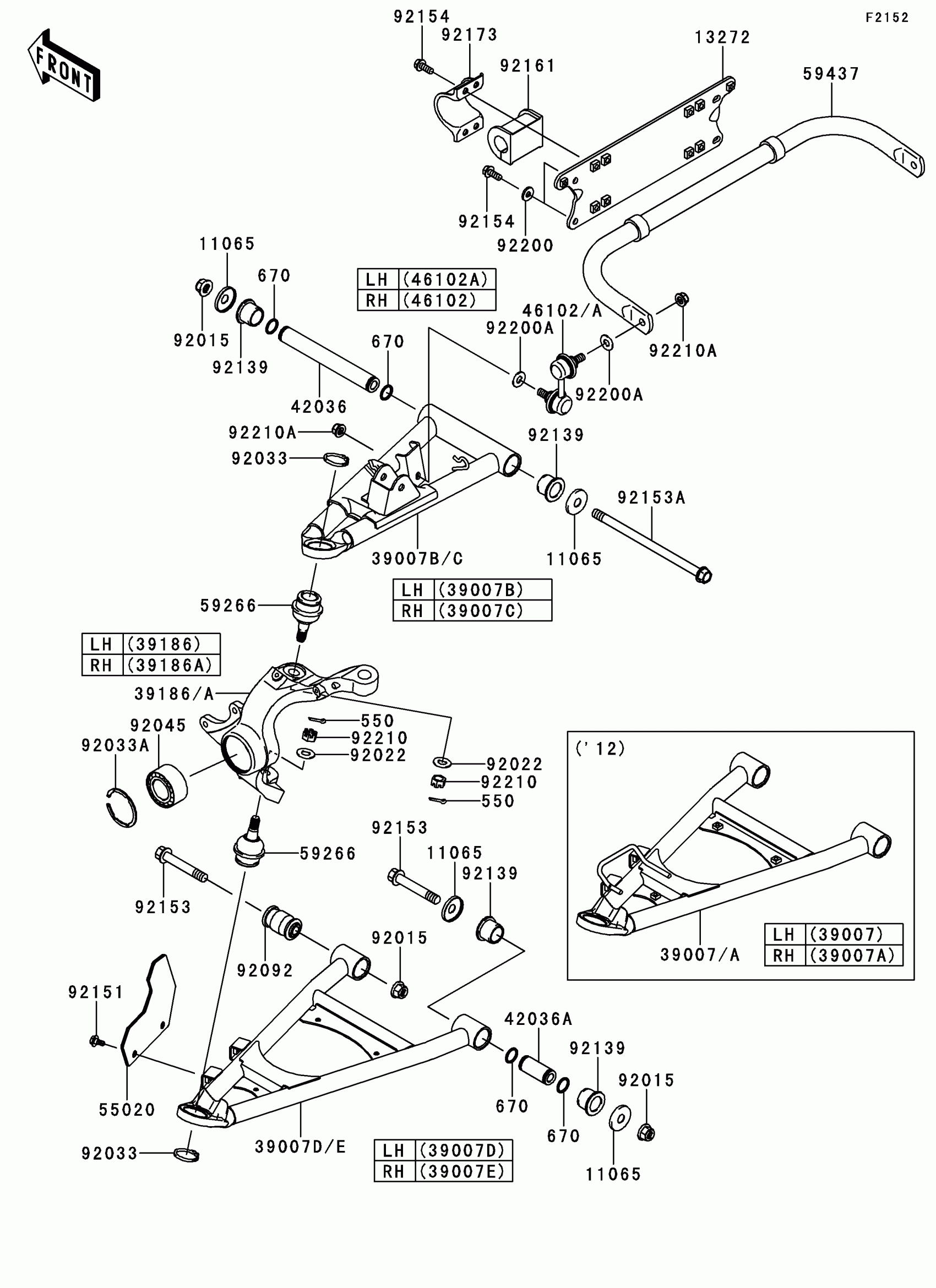

Kawasaki Teryx4™ 750 4x4 EPS LE Front Suspension Diagram

#

Description
Price

11065

CAP

11065-0253

$3.87

13272

PLATE

13272-1042

$51.22

39007B

ARM-SUSP,FR,UPP,LH

39007-0362

Unavailable

39007C

ARM-SUSP,FR,UPP,RH

39007-0363

Unavailable

39007D

ARM-SUSP,FR,LWR,LH

39007-0364

Unavailable

39007E

ARM-SUSP,FR,LWR,RH

39007-0365

Unavailable

39186

KNUCKLE,FR,LH

39186-0311

$190.27

39186A

KNUCKLE,FR,RH

39186-0312

$190.27

42036

SLEEVE

42036-0061

$46.79

42036A

SLEEVE

42036-0062

$23.84

46102

ROD,STABILIZER,LH

46102-0100

$48.58

46102A

ROD,STABILIZER,RH

46102-0101

$48.58

550

PIN-COTTER,3.0X25

550AA3025

$0.62

55020

GUARD,FRONT ARM

55020-0839

$14.43

59266

JOINT-BALL

59266-0014

$72.37

59437

STABILIZER,FR

59437-0305

$134.58

670

O RING,18MM

670B2018

$1.42

92015

NUT,LOCK,FLANGED,12MM

92015-1433

$8.86

92022

WASHER

92022-1831

$5.52

92033

RING-SNAP,C-TYPE,32MM

92033-1262

$6.41

92033A

RING-SNAP,55MM

92033-1274

$9.43

92045

BEARING-BALL,DAC3055W-3CS31

92045-0123

Unavailable

92092

BUSHING-RUBBER

92092-0555

$19.13

92139

BUSHING

92139-0231

$7.69

92151

BOLT,FLANGED,6X13

92151-1703

$3.94

92153

BOLT,FLANGED,12X76.5

92153-1733

$7.75

92153A

BOLT,FLANGED,12X213

92153-1958

$20.37

92154

BOLT,FLANGED,8X20

92154-0100

$2.97

92161

DAMPER

92161-0539

$9.85

92173

CLAMP

92173-0721

$11.25

92200

WASHER,8.2X20.0X2.5

92200-0205

$3.35

92200A

WASHER,10.3X23X1.6

92200-2009

$1.35

92210

NUT,CASTLE,12MM

92210-0395

$3.86

92210A

NUT,LOCK,FLANGED,10MM

92210-1080

$10.28
