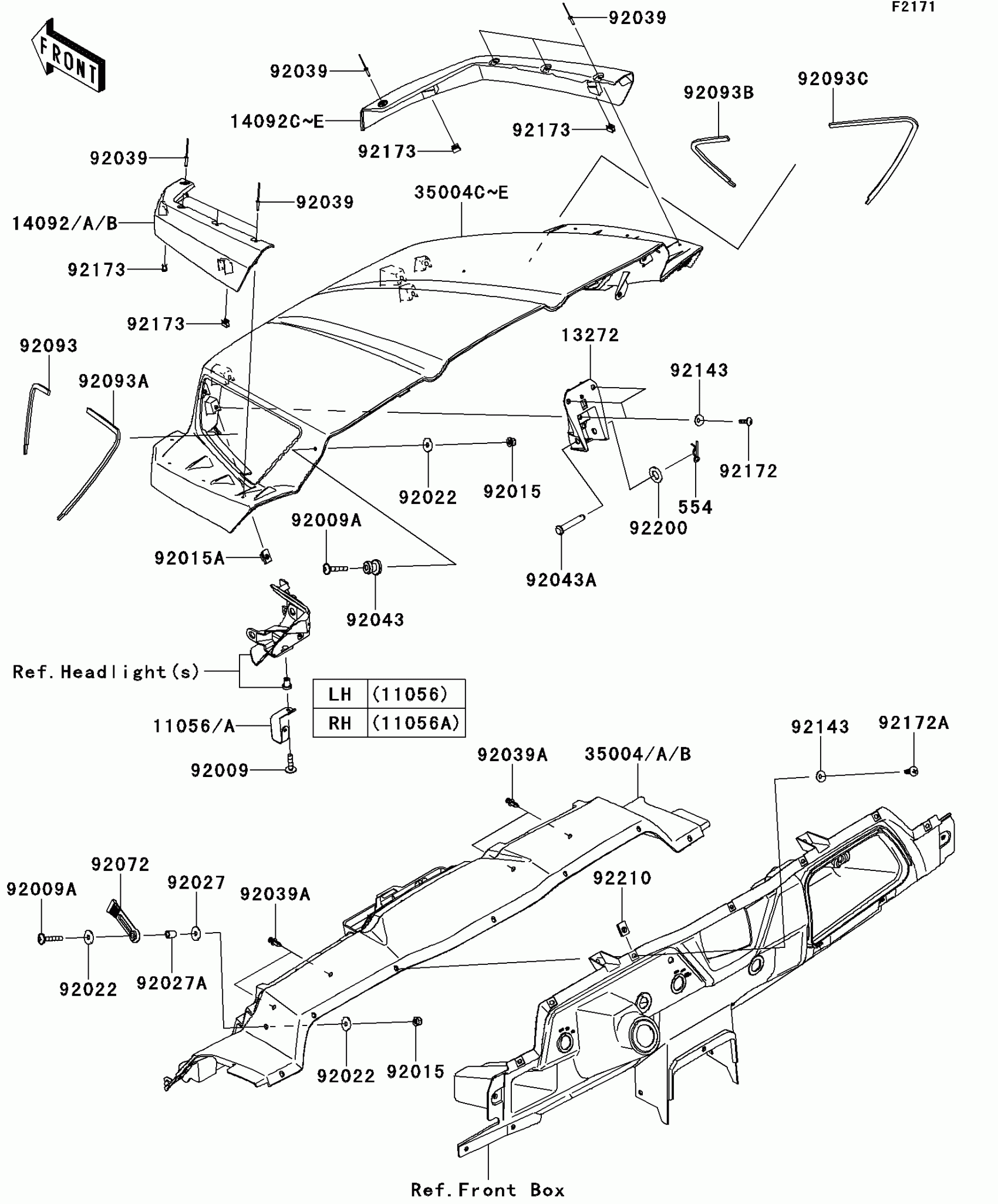

Kawasaki Teryx4™ 750 4x4 EPS LE Front Fender(s) Diagram

#

Description
Price

11056

BRACKET,LH

11056-0129

$5.57

11056A

BRACKET,RH

11056-0130

$5.57

13272

PLATE

13272-0871

$49.98

14092A

COVER,OVER FENDER,LH,S.YELLOW

14092-0746-40E

$84.90

14092B

COVER,OVER FENDER,LH,F.RED

14092-0746-6L

$84.90

14092D

COVER,OVER FENDER,RH,S.YELLOW

14092-0756-40E

$84.90

14092E

COVER,OVER FENDER,RH,F.RED

14092-0756-6L

$84.90

35004A

FENDER-FRONT,RR,S.YELLOW

35004-0303-40E

$64.56

35004B

FENDER-FRONT,RR,F.RED

35004-0303-6L

$55.36

35004D

FENDER-FRONT,FR,S.YELLOW

35004-0308-40E

Unavailable

35004E

FENDER-FRONT,FR,F.RED

35004-0308-6L

Unavailable

554

PIN-SNAP,12MM

554DA1200

$3.96

92009

SCREW,6X25

92009-1465

$3.92

92009A

SCREW,6X35

92009-1672

$3.92

92015

NUT,LOCK,FLANGED,6MM

92015-1339

$1.35

92015A

NUT,5MM

92015-1627

$5.93

92022

WASHER,6.5X20X1.6,WHITE

92022-193

$5.33

92027

COLLAR,L=5.1

92027-1260

$6.22

92027A

COLLAR,6.8X10X12

92027-162

$6.57

92039

RIVET,4.9X19.8

92039-0704

$1.86

92039A

RIVET

92039-1229

$1.19

92043

PIN

92043-0197

$2.98

92043A

PIN,12.4X72.4

92043-0716

$7.24

92072

BAND

92072-0144

$6.62

92093

SEAL,FR,LH

92093-0168

$7.53

92093A

SEAL,RR,LH

92093-0169

$7.53

92093B

SEAL,FR,RH

92093-0170

$7.53

92093C

SEAL,RR,RH

92093-0171

$7.53

92143

COLLAR

92143-1087

$4.31

92172

SCREW,5X16

92172-0322

$2.15

92172A

SCREW,TAPPING,6X20

92172-0488

$3.02

92173

CLAMP

92173-0104

$3.52

92200

WASHER,13X24X2

92200-0451

$2.97

92210

NUT,LEAF SPRING,6MM

92210-0624

$2.32
