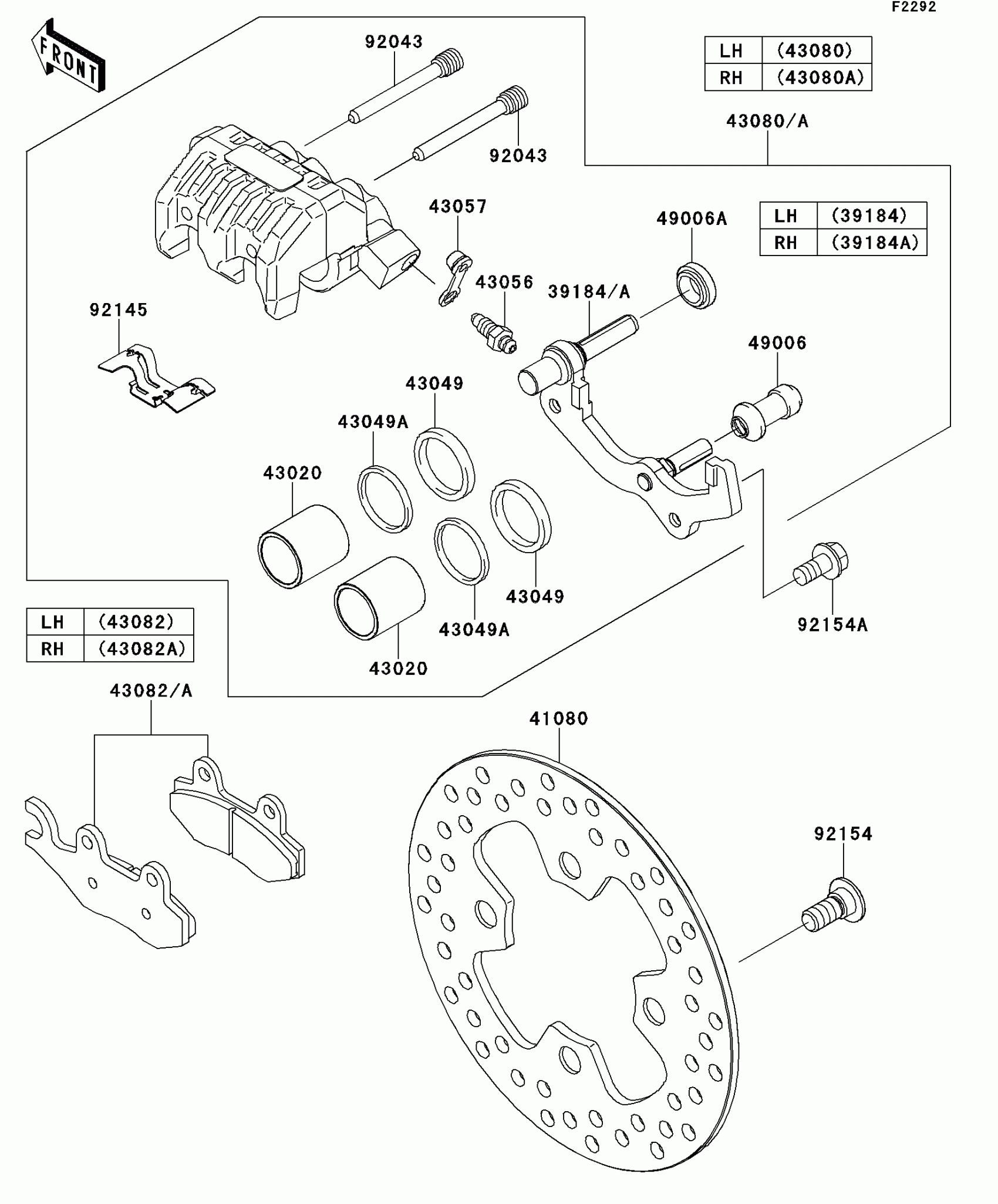

Kawasaki Teryx4™ 750 4x4 EPS LE Front Brake Diagram

#

Description
Price

39184

BRACKET-ASSY,CALIPER,LH

39184-0024

$60.18

39184A

BRACKET-ASSY,CALIPER,RH

39184-0025

$60.18

41080

DISC,FR,200MM

41080-0558

$45.22

43020

PISTON-COMP-BRAKE

43020-0054

$38.33

43049

PACKING

43049-0556

$13.25

43049A

PACKING

43049-0557

$7.59

43056

BREATHER-BRAKE

43056-0055

$12.15

43057

CAP-BREATHER

43057-0552

$3.82

43080

CALIPER-SUB-ASSY,LH

43080-0128

$338.80

43080A

CALIPER-SUB-ASSY,RH

43080-0129

$338.80

43082

PAD-ASSY-BRAKE,LH

43082-0126

$63.67

43082A

PAD-ASSY-BRAKE,RH

43082-0127

$63.67

49006

BOOT

49006-0565

$10.39

49006A

BOOT

49006-0566

$3.98

92043

PIN

92043-0184

$6.42

92145

SPRING

92145-0705

$5.32

92154

BOLT,SOCKET,10X23

92154-0713

$3.13

92154A

BOLT,FLANGED,8X16

92154-1005

$4.09
