Drive Shaft-Rear

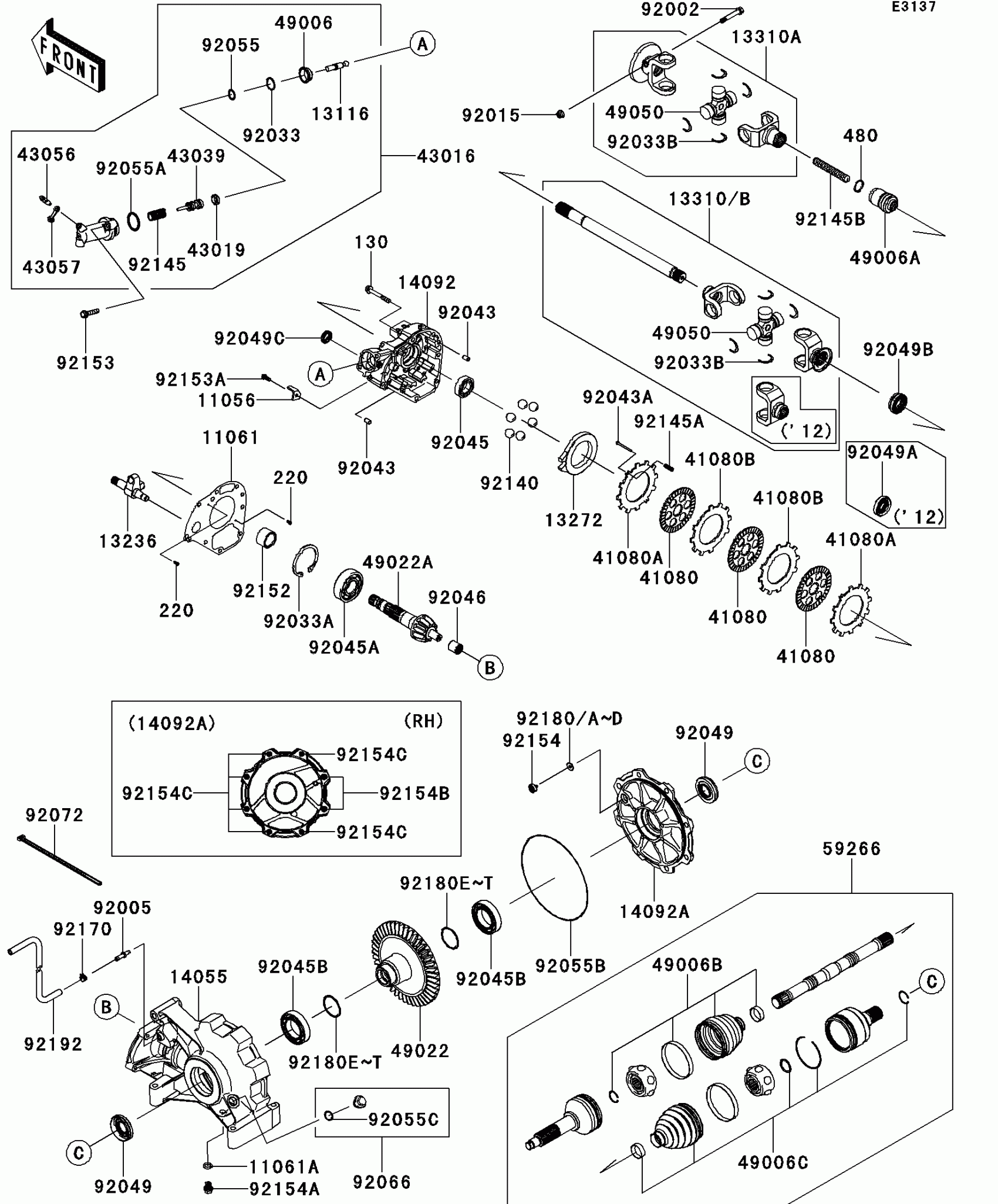

Kawasaki Teryx4™ 750 4x4 EPS LE Drive Shaft-Rear Diagram
#
11056
BRACKET
11056-1447
$2.63
11061
GASKET,FR COVER
11061-0270
$31.86
11061A
GASKET,DRAIN
11061-0759
$0.74
13116
ROD-PUSH
13116-0026
$37.85
13236
LEVER-COMP,BRAKE
13236-0706
$96.51
13272
PLATE,CAM
13272-1203
$27.99
13310
SHAFT-ASSY,GEAR ASSY SIDE
13310-0029
$407.90
13310A
SHAFT-ASSY,ENGINE SIDE
13310-0555
$324.22
14055
CASE-GEAR
14055-0599
$363.75
14092
COVER,FR
14092-0128
$143.01
14092A
COVER
14092-0846
$214.73
41080
DISC,FRICTION
41080-1482
$49.80
41080A
DISC,PRESSURE
41080-1483
$18.80
41080B
DISC,SEPARATER
41080-1484
$18.80
43016
CYLINDER-MASTER
43016-0556
$266.92
43019
CUP-BRAKE
43019-0002
$5.60
43039
PISTON-BRAKE
43039-0006
$41.96
43056
BREATHER-BRAKE
43056-1056
$14.30
43057
CAP-BREATHER
43057-1001
$4.91
49006
BOOT
49006-0072
$10.21
49006A
BOOT
49006-0089
$30.43
49006B
BOOT,OUTSIDE
49006-0556
$96.75
49006C
BOOT,INSIDE
49006-0557
Unavailable
49022
GEAR-BEVEL,44T
49022-0567
$384.67
49022A
GEAR-BEVEL,10T
49022-0568
$244.69
49050
SPIDER
49050-0027
$115.74
59266
JOINT-BALL,REAR
59266-0703
Unavailable
92002
BOLT
92002-1221
$7.84
92005
FITTING,BREATHER
92005-0729
$15.23
92015
NUT,8MM
92015-1432
$6.57
92033
RING-SNAP
92033-0055
$3.87
92033A
RING-SNAP
92033-0713
$6.78
92033B
RING-SNAP
92033-0718
Unavailable
92043
PIN,8X14
92043-1567
$2.26
92043A
PIN,3X35
92043-1617
$2.41
92045
BEARING-BALL,#6005
92045-0077
Unavailable
92045A
BEARING-BALL,6306
92045-0721
$56.31
92045B
BEARING-BALL,TMB009
92045-0728
$46.49
92046
BEARING-NEEDLE,16NQ2322A
92046-0606
$28.43
92049
SEAL-OIL,33X60X11
92049-0721
$16.84
92049B
SEAL-OIL,25X45X9.5
92049-0739
$13.49
92049C
SEAL-OIL,TC17X28X6
92049-1537
$11.81
92055
RING-O
92055-0146
$5.65
92055A
RING-O
92055-0147
$7.75
92055B
RING-O
92055-0722
Unavailable
92055C
RING-O,20X2.5
92055-0754
$1.96
92066
PLUG
92066-0728
$3.89
92072
BAND,L=250
92072-1237
$2.14
92140
BALL,D/O#12
92140-1064
$2.39
92145
SPRING
92145-0882
$15.66
92145A
SPRING,RR BRAKE
92145-1301
$1.84
92145B
SPRING,PROPELLER SHAFT
92145-1304
$3.23
92152
COLLAR
92152-1525
$14.05
92153
BOLT,FLANGED,8X40
92153-1727
$7.82
92153A
BOLT,FLANGED-SMALL,6X16
92153-1729
$2.15
92154
BOLT,BUTTON
92154-0831
$4.42
92154A
BOLT,DRAIN
92154-0832
$2.04
92154B
BOLT,FLANGED,10X40
92154-0833
$2.04
92154C
BOLT,FLANGED,10X40
92154-0834
$2.04
92170
CLAMP
92170-2043
$1.19
92180
SHIM,T=1.3
92180-0721
Unavailable
92180A
SHIM,T=1.4
92180-0722
Unavailable
92180B
SHIM,T=1.5
92180-0723
$5.27
92180C
SHIM,T=1.6
92180-0724
Unavailable
92180D
SHIM,T=1.7
92180-0725
Unavailable
92180E
SHIM,T=0.965
92180-0738
Unavailable
92180F
SHIM,T=0.991
92180-0739
Unavailable
92180G
SHIM,T=1.016
92180-0740
Unavailable
92180H
SHIM,T=1.041
92180-0741
Unavailable
92180I
SHIM,T=1.067
92180-0742
Unavailable
92180J
SHIM,T=1.092
92180-0743
$5.27
92180K
SHIM,T=1.118
92180-0744
Unavailable
92180L
SHIM,T=1.143
92180-0745
Unavailable
92180M
SHIM,T=1.168
92180-0746
Unavailable
92180N
SHIM,T=1.194
92180-0747
Unavailable
92180O
SHIM,T=1.219
92180-0748
Unavailable
92180P
SHIM,T=1.245
92180-0749
Unavailable
92180Q
SHIM,T=1.270
92180-0750
Unavailable
130
BOLT-FLANGED,8X60
130CA0860
$1.77
220
SCREW-PAN-CROS,4X8
220AA0408
$0.68
480
CIRCLIP-TYPE-C,25MM
480J2500
$2.03
92180R
SHIM,T=1.295
92180-0751
Unavailable
92180S
SHIM,T=1.321
92180-0752
Unavailable
92180T
SHIM,T=1.346
92180-0753
Unavailable
92192
TUBE,BREATHER
92192-1041
$14.26
