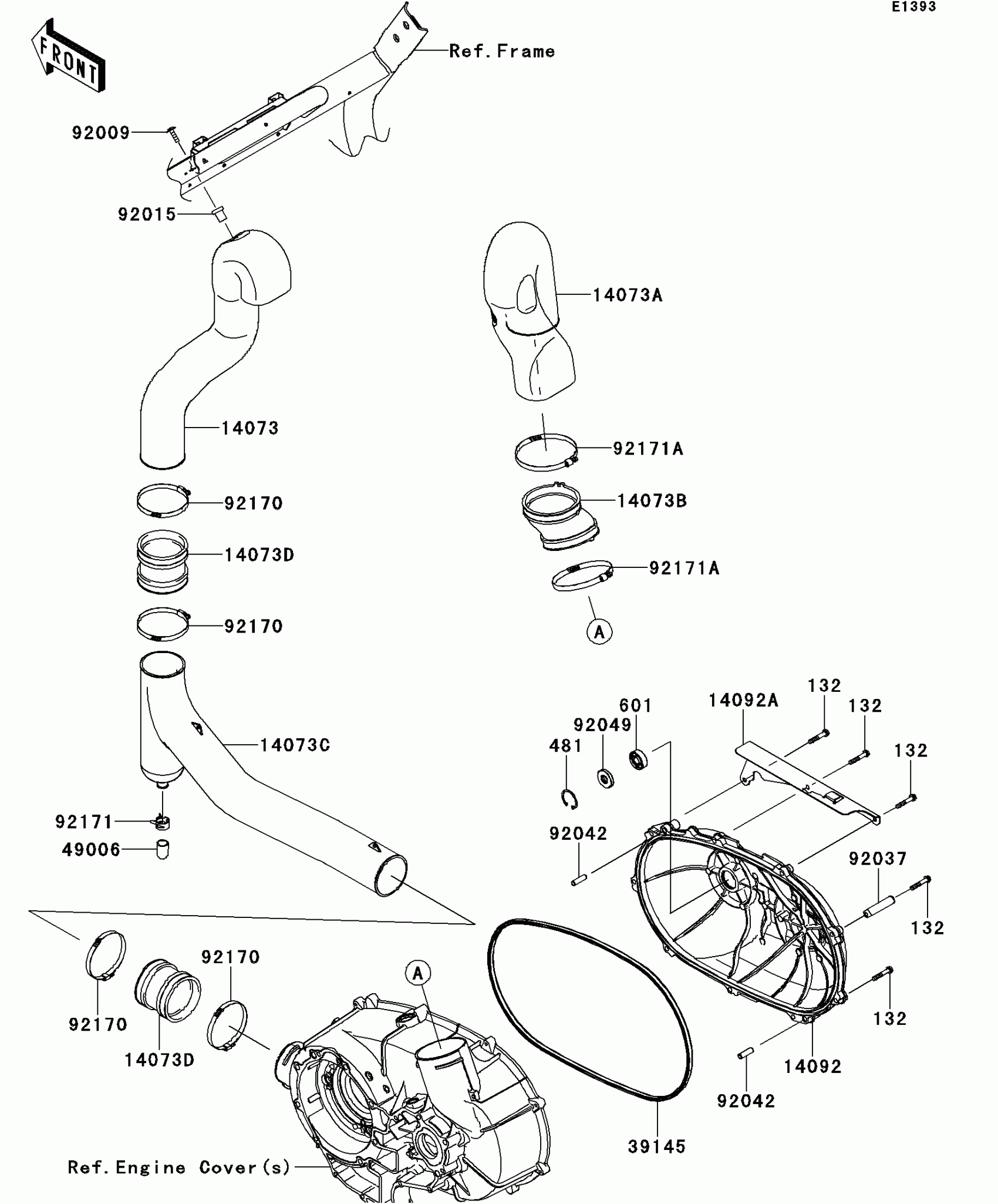

Kawasaki Teryx4™ 750 4x4 EPS LE Converter Cover Diagram

Description

Price

132

BOLT-FLANGED-SMALL,6X35

132BA0635

$2.06

14073

DUCT,INTAKE

14073-0305

$36.64

14073A

DUCT,EXHAUST

14073-0306

$28.39

14073B

DUCT,JOINT

14073-0307

$10.28

14073C

DUCT,INTAKE,LWR

14073-0716

$29.60

14073D

DUCT,JOINT

14073-1805

$10.86

14092

COVER,CVT

14092-0266

$151.77

14092A

COVER,HEAT GUARD

14092-0924

$20.84

39145

TRIM-SEAL,CVT COVER

39145-0043

$30.62

481

CIRCLIP-TYPE-C,32MM

481J3200

$2.68

49006

BOOT

49006-0555

$5.30

601

BEARING-BALL

601A6201

$10.69

92009

SCREW,6X22,BLACK

92009-1256

$2.78

92015

NUT,RUBBER,6MM

92015-1692

$7.34

92037

CLAMP

92037-1993

$5.52

92042

PIN,DOWEL,8X28

92042-050

$4.31

92049

SEAL-OIL,12X32X5.8

92049-0167

$9.17

92170

CLAMP

92170-1763

$5.70

92171

CLAMP

92171-1277

$2.75

92171A

CLAMP

92171-1383

$4.40
