- Teryx4™ 750 4x4 EPS LE
Chassis Electrical Equipment

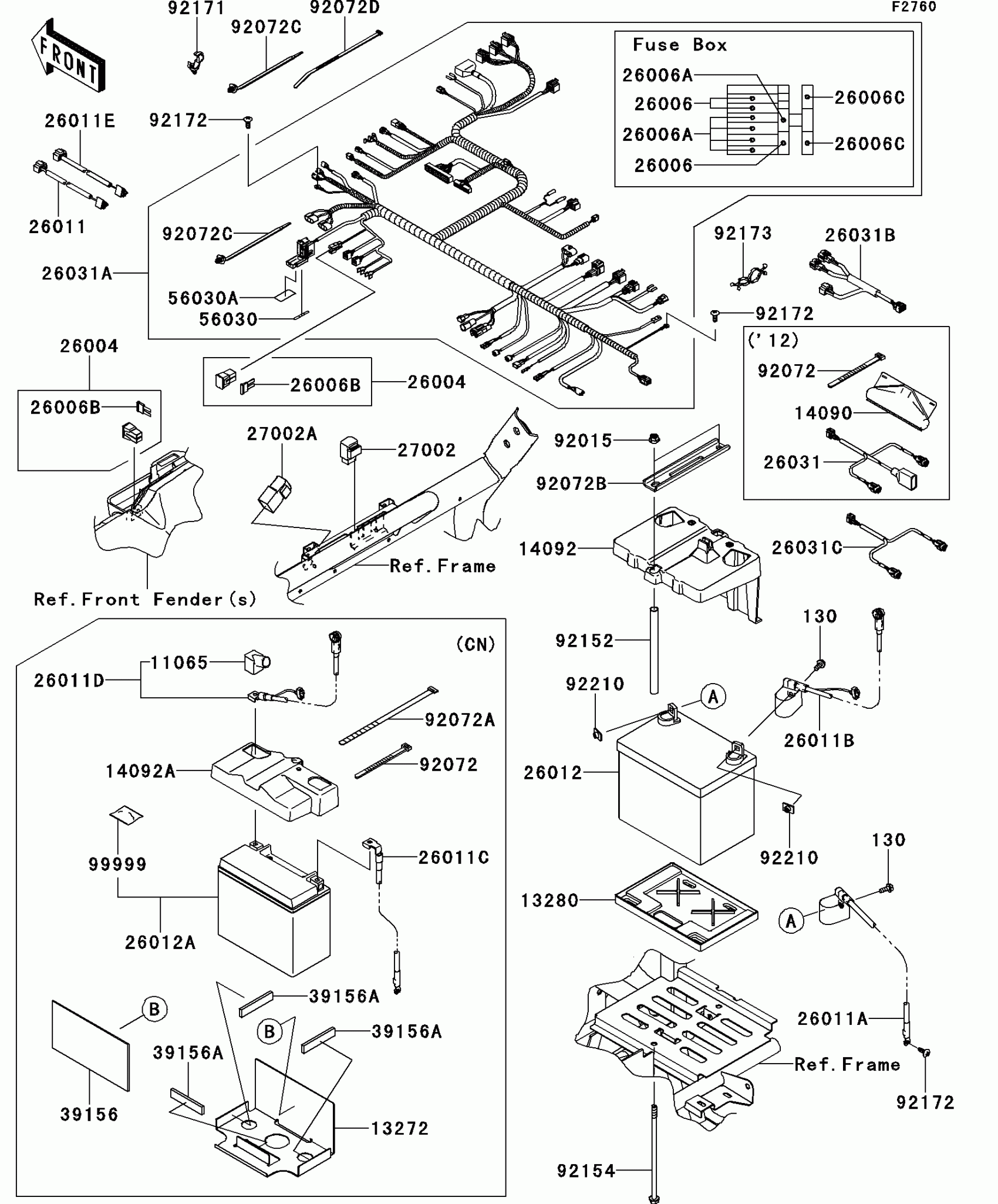

Kawasaki Teryx4™ 750 4x4 EPS LE Chassis Electrical Equipment Diagram
#
11065
CAP
11065-0755
Unavailable
13272
PLATE,BATTERY BOTTOM
13272-1322
$9.43
13280
HOLDER,BATTERY
13280-0709
$7.80
14092
COVER,BATTERY
14092-0753
$7.99
14092A
COVER,BATTERY
14092-0978
$7.99
26004
FUSE-ASSY,40A
26004-1093
$4.11
26006
FUSE,MINI BLADE,15A,BLUE
26006-0001
$6.12
26006A
FUSE,MINI BLADE,10A,RED
26006-0009
Unavailable
26006B
FUSE,SLOW BLOW,BT,40A,GREEN
26006-0014
$5.24
26006C
FUSE,MINI BLADE,30A,GREEN
26006-1080
$4.87
26011
WIRE-LEAD,HEAD LAMP,LH
26011-0276
$58.61
26011A
WIRE-LEAD,BATTERY(-)
26011-0713
$30.60
26011B
WIRE-LEAD,BATTERY(+)
26011-0714
$53.24
26011C
WIRE-LEAD,BATTERY(-)
26011-0725
Unavailable
26011D
WIRE-LEAD,BATTERY(+)
26011-0726
Unavailable
26011E
WIRE-LEAD,HEAD LAMP,RH
26011-0759
$50.58
26012
BATTERY,12V 14AH
26012-0107
Unavailable
26012A
BATTERY,YTX20L-BS,12V 18AH
26012-3730
Unavailable
26031A
HARNESS,MAIN
26031-1179
$752.89
26031B
HARNESS,SUB,TPS
26031-1264
$28.09
26031C
HARNESS,SUB
26031-1439
$84.80
27002
RELAY-ASSY
27002-1062
$45.39
27002A
RELAY-ASSY
27002-1086
$36.91
39156
PAD,175X94X3
39156-0837
Unavailable
39156A
PAD,15X72X5
39156-0838
Unavailable
56030
LABEL,FUSE BOX,30A
56030-0404
$3.77
56030A
LABEL,FUSE BOX
56030-0703
$3.77
92015
NUT,FLANGED,8MM
92015-1406
$4.45
130
BOLT-FLANGED,6X16
130BA0616
$1.20
92072A
BAND,L=218
92072-032
$5.00
92072B
BAND
92072-0707
$7.59
92072C
BAND,OS170-FT7(BLACK)
92072-1414
$3.74
92072D
BAND,L=292.1
92072-3509
Unavailable
92152
COLLAR,10.2X12.7X165.8
92152-1555
$3.21
92154
BOLT,FLANGED,8X185
92154-0889
$9.17
92171
CLAMP,13MM DIA.
92171-1415
$2.03
92172
SCREW,TAPPING,6X16
92172-0739
$0.85
92173
CLAMP,PURSE LOCK
92173-0962
$4.62
92210
NUT,PLATE,6MM
92210-1352
$2.41
99999
BOLT NUT KIT
99999-0311
$10.55
92072
BAND,L=123
92072-030
$5.00
