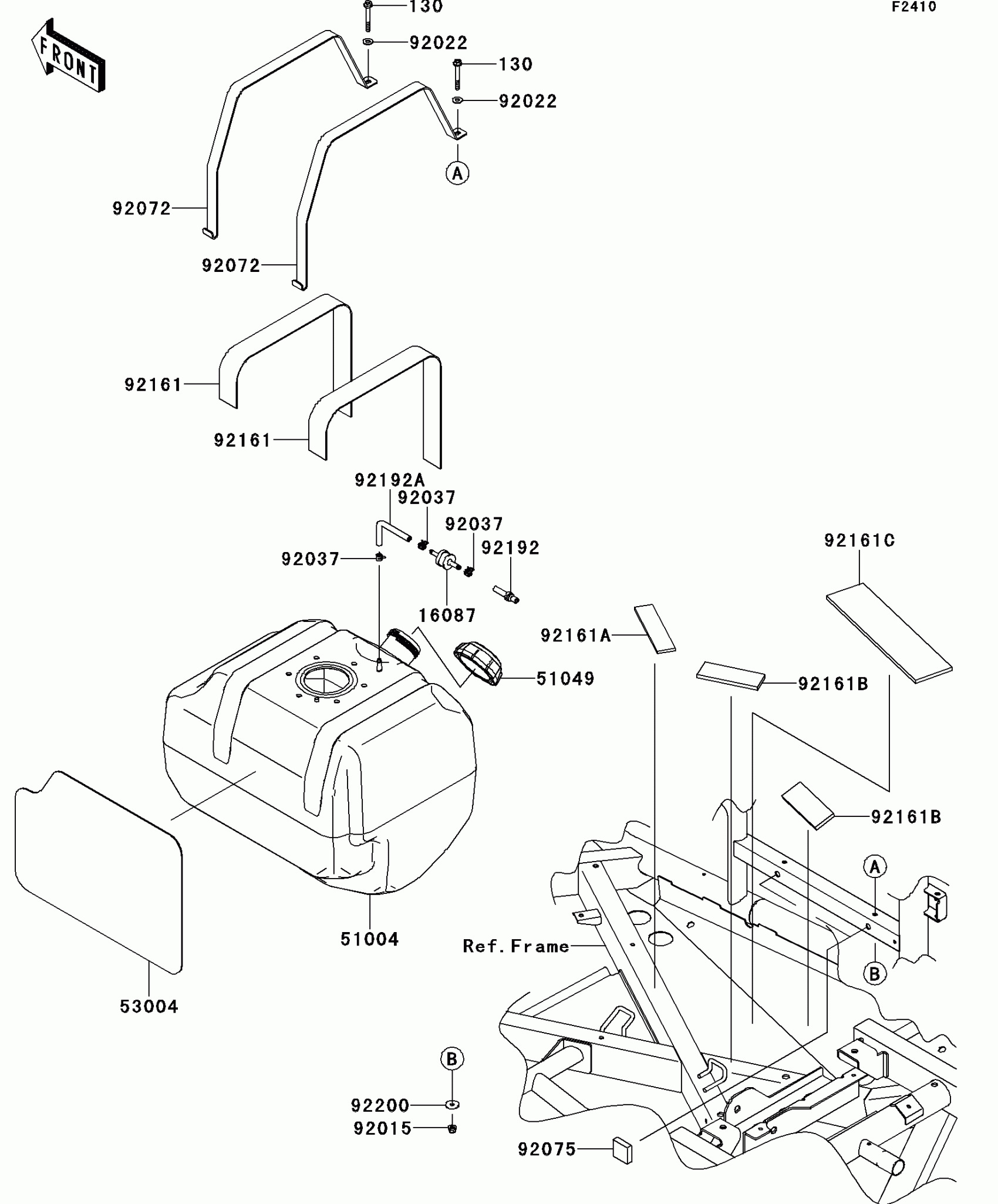

Kawasaki TERYX4™ 750 4x4 EPS Fuel Tank Diagram

Description

Price

130

BOLT-FLANGED,6X50

130BA0650

$1.03

16087

VALVE-CHECK

16087-0703

$37.65

51004

TANK-FUEL

51004-0706

Unavailable

51049

CAP-TANK,FUEL

51049-1128

$68.82

53004

MAT

53004-0554

$10.17

92015

NUT,LOCK,FLANGED,6MM

92015-1339

$1.35

92022

WASHER,7X16X1.2

92022-1344

$3.92

92037

CLAMP,TUBE

92037-1461

$3.88

92072

BAND,FUEL TANK

92072-0704

$14.66

92075

DAMPER

92075-1882

$8.10

92161

DAMPER,FUEL TANK

92161-0794

$22.11

92161A

DAMPER,31.1X130X5

92161-0936

$4.68

92161B

DAMPER,38X105X7

92161-0948

$3.64

92161C

DAMPER,70X280X7

92161-1452

$16.18

92192

TUBE,FRAME PIPE-CHECK VALVE

92192-0068

$10.90

92192A

TUBE,VENT

92192-0949

$1.81

92200

WASHER,6.5X22X1.6

92200-1087

$3.94
