Front Fender(s)

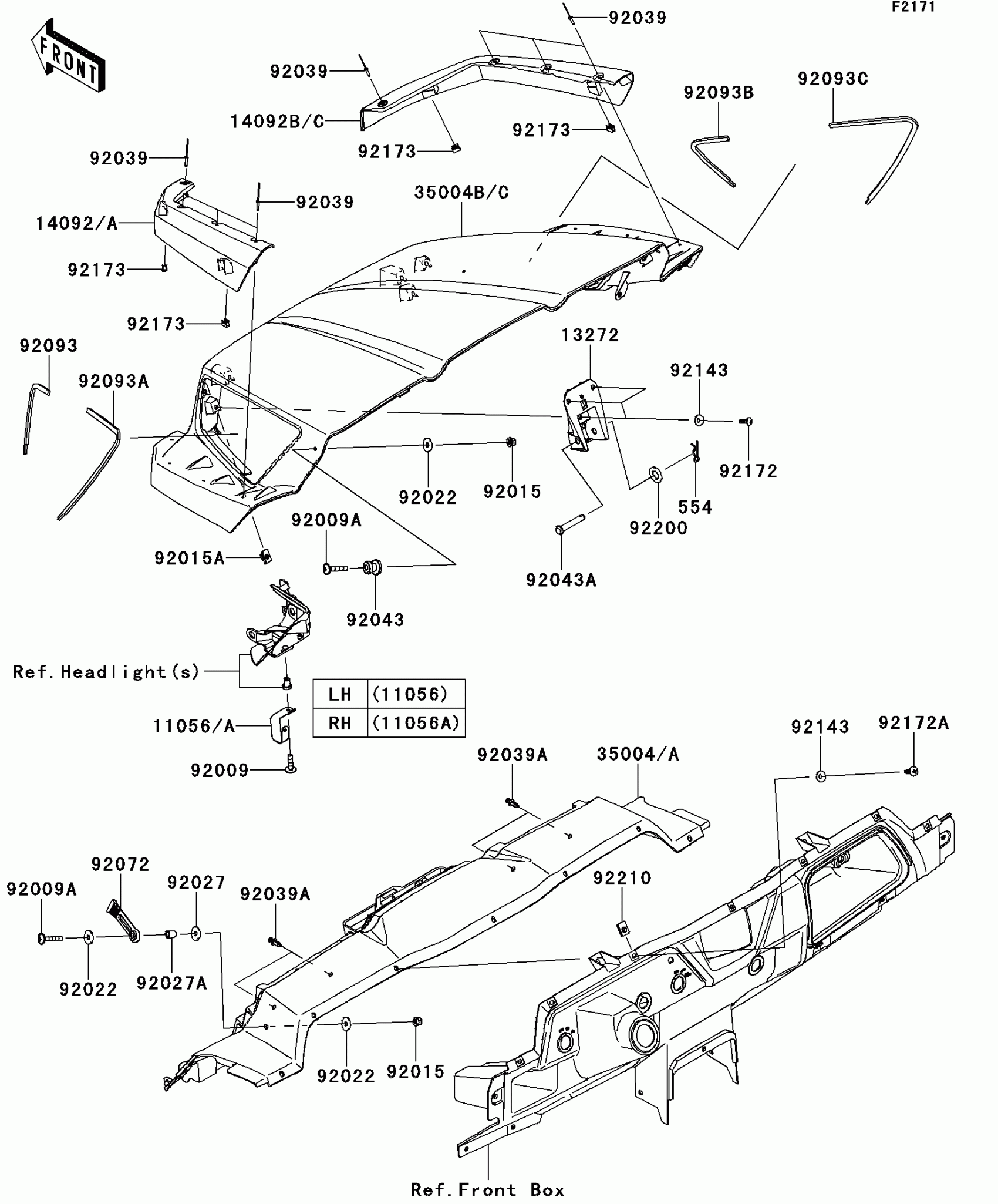

Kawasaki TERYX4™ 750 4x4 EPS Front Fender(s) Diagram
#
Description
Price
11056
BRACKET,LH
11056-0129
$5.57
11056A
BRACKET,RH
11056-0130
$5.57
13272
PLATE
13272-0871
$49.98
14092
COVER,OVER FENDER,LH,B.WHITE
14092-0746-266
$84.90
14092B
COVER,OVER FENDER,RH,B.WHITE
14092-0756-266
$84.90
35004
FENDER-FRONT,RR,B.WHITE
35004-0303-266
$55.36
35004B
FENDER-FRONT,FR,B.WHITE
35004-0308-266
Unavailable
554
PIN-SNAP,12MM
554DA1200
$3.96
92009
SCREW,6X25
92009-1465
$3.92
92009A
SCREW,6X35
92009-1672
$3.92
92015
NUT,LOCK,FLANGED,6MM
92015-1339
$1.35
92015A
NUT,5MM
92015-1627
$5.93
92022
WASHER,6.5X20X1.6,WHITE
92022-193
$5.33
92027
COLLAR,L=5.1
92027-1260
$6.22
92027A
COLLAR,6.8X10X12
92027-162
$6.57
92039
RIVET,4.9X19.8
92039-0704
$1.86
92039A
RIVET
92039-1229
$1.19
92043
PIN
92043-0197
$2.98
92043A
PIN,12.4X72.4
92043-0716
$7.24
92072
BAND
92072-0144
$6.62
92093
SEAL,FR,LH
92093-0168
$7.53
92093A
SEAL,RR,LH
92093-0169
$7.53
92093B
SEAL,FR,RH
92093-0170
$7.53
92093C
SEAL,RR,RH
92093-0171
$7.53
92143
COLLAR
92143-1087
$4.31
92172
SCREW,5X16
92172-0322
$2.15
92172A
SCREW,TAPPING,6X20
92172-0488
$3.02
92173
CLAMP
92173-0104
$3.52
92200
WASHER,13X24X2
92200-0451
$2.97
92210
NUT,LEAF SPRING,6MM
92210-0624
$2.32
