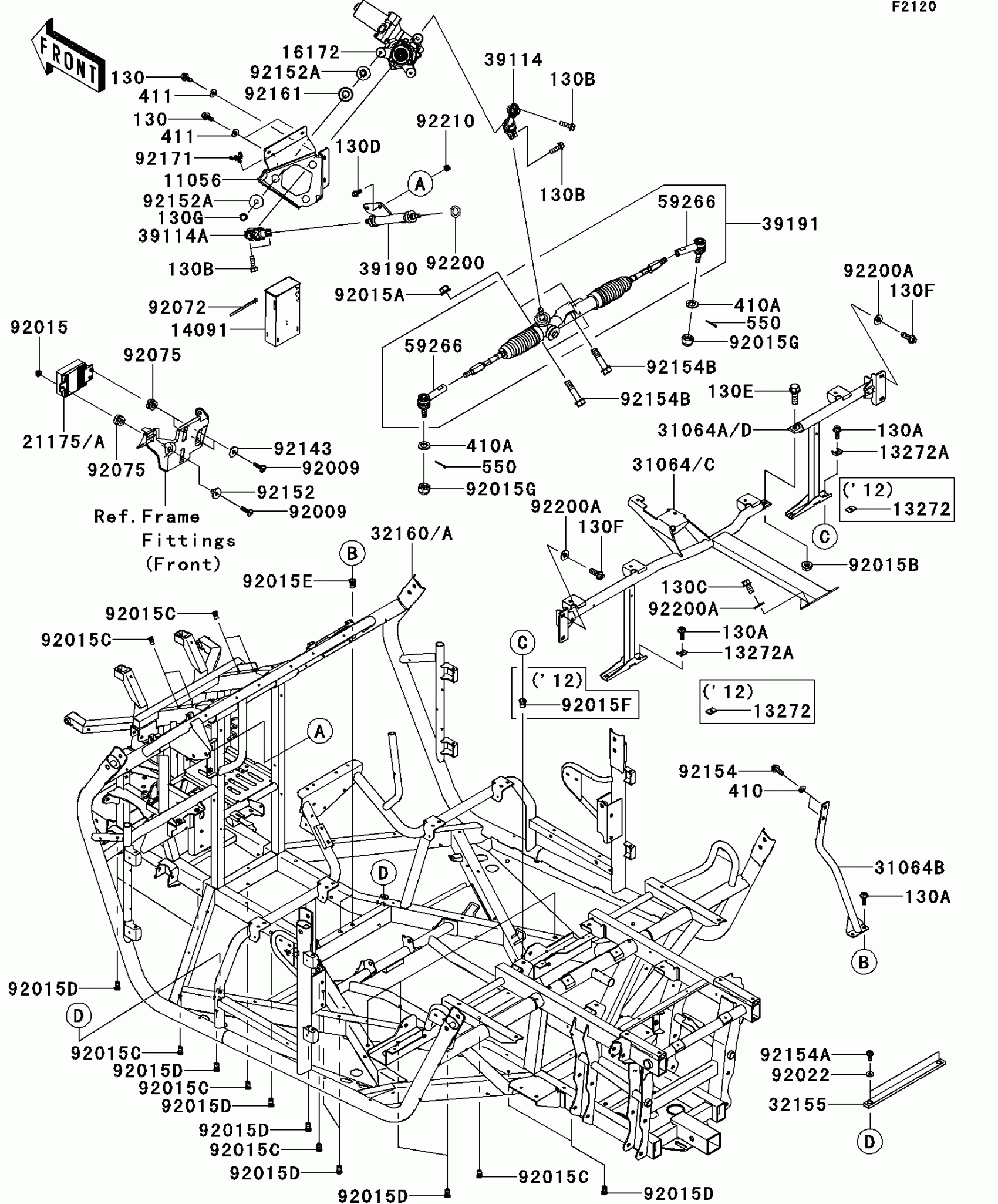

Kawasaki TERYX4™ 750 4x4 EPS Frame Diagram
#
11056
BRACKET,EPS ACTUATOR
11056-1416
$96.82
13272A
PLATE
13272-1336
$1.11
14091
COVER,ECU
14091-7560
$46.35
16172
ACTUATOR,EPS
16172-0557
$1,812.19
21175A
CONTROL UNIT-ELECTRONIC
21175-0809
$861.42
31064B
PIPE-COMP
31064-0594
$35.89
31064C
PIPE-COMP,SUB FRAME,SEAT,LH
31064-0612
$170.31
31064D
PIPE-COMP,SUB FRAME,SEAT,RH
31064-0613
Unavailable
32155
PIPE,FR FLOOR
32155-1076
$14.45
32160A
FRAME-COMP
32160-0644
Unavailable
39114
SHAFT-COMP-STRG
39114-0306
Unavailable
39114A
SHAFT-COMP-STRG
39114-0308
Unavailable
39190
SHAFT-ASSY-STEERING
39190-7501
$231.78
39191
GEAR-ASSY-STEERING
39191-0018
$851.08
59266
JOINT-BALL
59266-0706
$63.87
92009
SCREW,6X25
92009-1465
$3.92
92015
NUT,FLANGED,6MM
92015-1367
$3.69
92015A
NUT,LOCK,FLANGED,12MM
92015-1433
$8.86
92015B
NUT
92015-1706
$7.45
92015C
NUT,POP,6MM,L=15
92015-1791
$4.69
92015D
NUT,POP,6MM,L=16.5
92015-1792
$4.69
92015E
NUT,POP,8MM,L=16.5
92015-1793
$5.00
92015G
NUT,CASTLE,14MM
92015-1841
$8.38
92022
WASHER
92022-2247
$0.62
92072
BAND,L=123
92072-030
$5.00
92075
DAMPER,RUBBER
92075-1123
$5.00
92143
COLLAR,L=6.5
92143-1025
$6.22
92152
COLLAR,6.5X10X13.3
92152-0957
$9.73
92152A
COLLAR
92152-7513
$5.04
92154
BOLT,FLANGED,8X20
92154-0100
$2.97
92154A
BOLT,FLANGED,6X16
92154-0887
$1.63
92154B
BOLT,FLANGED,12X50
92154-1008
$7.85
92161
DAMPER,ACTUATOR
92161-7517
$3.35
92171
CLAMP
92171-0453
$3.54
130
BOLT-FLANGED,8X16
130BA0816
$1.12
130A
BOLT-FLANGED,8X20
130BA0820
$4.14
130B
BOLT-FLANGED,8X25
130BA0825
$2.95
130C
BOLT-FLANGED,10X20
130BA1020
$3.35
130D
BOLT-FLANGED,10X22
130BA1022
$1.94
130E
BOLT-FLANGED,12X35
130BA1235
$3.63
130F
BOLT-FLANGED,10X25
130BB1025
$5.25
130G
BOLT-FLANGED,8X45
130CA0845
$1.22
410
WASHER-PLAIN-SMALL,8MM
410AA0800
$0.96
410A
WASHER-PLAIN-SMALL,14MM
410AA1400
$2.15
411
WASHER-PLAIN,8MM
411AA0800
$0.96
550
PIN-COTTER,3.0X25
550AA3025
$0.62
92200
WASHER,15X25X1.6
92200-0460
$3.71
92200A
WASHER,10.2X23X2.5
92200-7506
$3.90
92210
NUT,LOCK,FLANGED,10MM
92210-1080
$10.28
