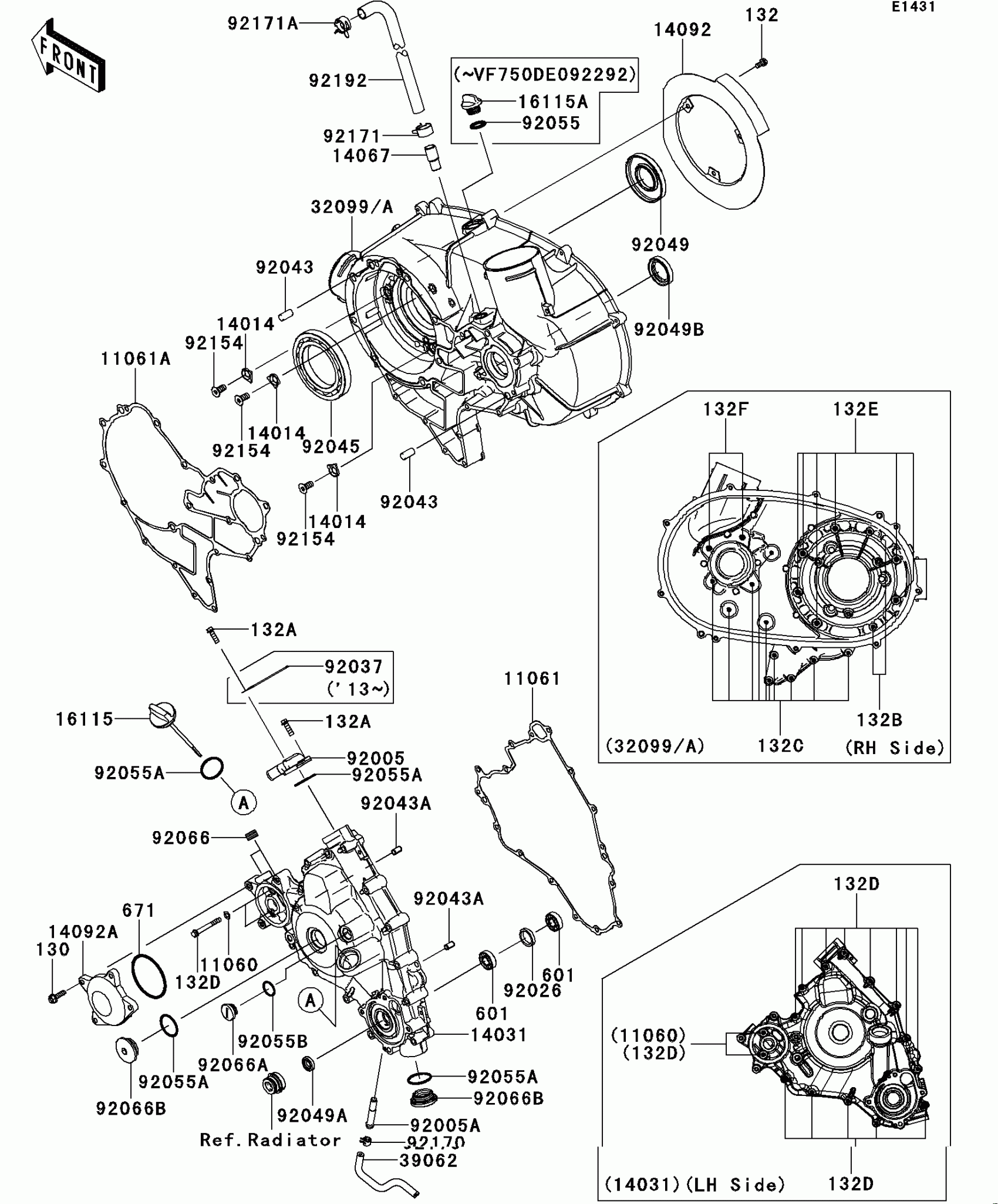

Kawasaki TERYX4™ 750 4x4 EPS Engine Cover(s) Diagram

#

Description
Price

11060

GASKET,6.2X12X0.3

11060-1994

$2.39

11061

GASKET,GENERATOR COVER

11061-0728

$31.96

11061A

GASKET,CVT CASE

11061-0729

$45.22

130

BOLT-FLANGED,6X22

130CD0622

$0.88

132

BOLT-FLANGED-SMALL,6X12

132BD0612

$2.06

14014

PLATE-POSITION

14014-0556

$4.41

14031

COVER-GENERATOR

14031-0552

$196.73

14067

FITTING,BREATHER

14067-006

$21.09

14092

COVER

14092-0708

$24.93

14092A

COVER,OIL COOLER

14092-0877

$44.98

16115

CAP-OIL FILLER

16115-0705

$41.04

32099A

CASE,CVT

32099-0726

Unavailable

39062

HOSE-COOLING,DRAIN

39062-0598

$4.24

92005

FITTING

92005-0712

$23.01

92005A

FITTING

92005-1264

$7.56

92026

SPACER,22X28X5

92026-0711

$14.32

92037

CLAMP

92037-1993

$5.52

92043

PIN,10X20

92043-0142

$3.90

92043A

PIN,6.2X8X14

92043-1263

$0.43

92045

BEARING-BALL,16014CS45

92045-0709

$86.33

92049

SEAL-OIL,35X77X9

92049-0713

$17.91

92049A

SEAL-OIL,SC 12X22X5

92049-1228

$9.28

92049B

SEAL-OIL,HTC 30X45X8

92049-1575

$16.41

92055A

RING-O,31.2X2.4

92055-0724

$3.65

92055B

RING-O,20X2

92055-1146

$8.58

92066

PLUG,PT3/8X10

92066-0003

$3.31

92066A

PLUG,COVER

92066-0011

$15.94

92066B

PLUG

92066-0712

$13.06

92154

BOLT,FLAT,8X13.6

92154-0978

$4.41

92170

CLAMP

92170-1493

$5.00

92171

CLAMP

92171-0329

$8.89

92171A

CLAMP

92171-1277

$2.75

92192

TUBE,BREATHER

92192-0945

$14.63

132A

BOLT-FLANGED-SMALL,6X20

132BD0620

$4.12

132B

BOLT-FLANGED-SMALL,6X30

132BD0630

$3.67

132C

BOLT-FLANGED-SMALL,6X45

132BD0645

$4.69

132D

BOLT-FLANGED-SMALL,6X50

132BD0650

$4.76

132E

BOLT-FLANGED-SMALL,8X35

132BD0835

$4.45

132F

BOLT-FLANGED-SMALL,8X50

132BD0850

$3.02

601

BEARING-BALL

601A6001

$11.71

671

O RING,65MM

671B2565

$8.86
