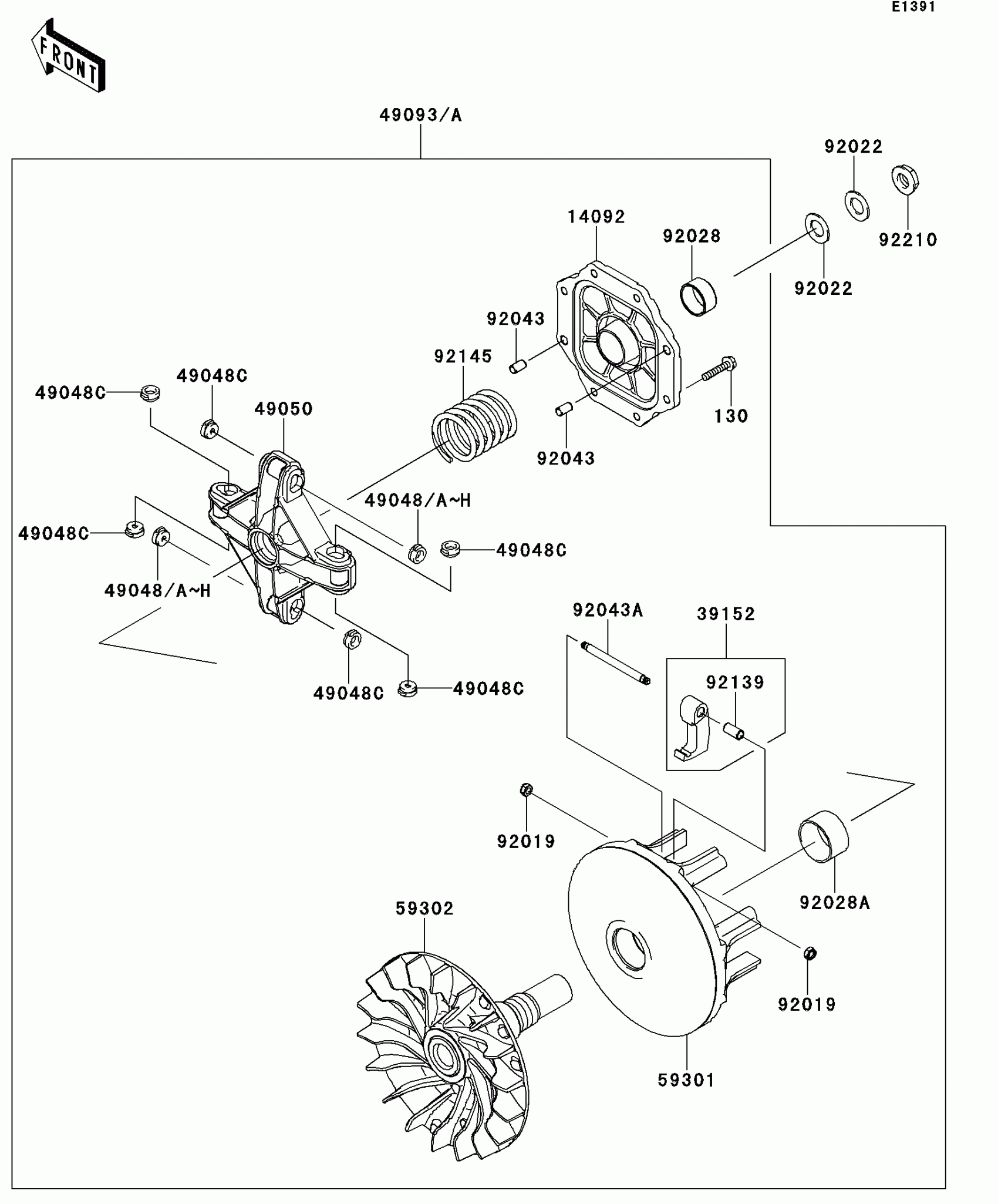

Kawasaki TERYX4™ 750 4x4 EPS Drive Converter Diagram

Description

Price

130

BOLT-FLANGED,6X30

130CA0630

$2.49

14092

COVER

14092-1022

$39.66

39152

WEIGHT-RAMP

39152-0089

$58.27

49048

SHOE,T=7.2

49048-1087

Unavailable

49048A

SHOE,T=7.3

49048-1088

Unavailable

49048B

SHOE,T=7.4

49048-1089

Unavailable

49048C

SHOE,T=7.5

49048-1090

$14.82

49048D

SHOE,T=7.6

49048-1091

Unavailable

49048E

SHOE,T=7.7

49048-1092

Unavailable

49048F

SHOE,T=7.8

49048-1093

Unavailable

49048G

SHOE,T=7.9

49048-1094

Unavailable

49048H

SHOE,T=8.0

49048-1095

Unavailable

49050

SPIDER

49050-0010

$139.98

49093

CONVERTER-ASSY-DRIVE

49093-0041

$935.05

59301

SHEAVE-MOVABLE

59301-0018

$248.69

59302

SHEAVE-COMP

59302-0074

$353.83

92019

NUT,LOCK,6MM

92019-008

$4.26

92022

WASHER,16.3X29X1.75

92022-1356

$7.34

92028

BUSHING,KICK LEVER,OUTSIDE

92028-1900

$7.38

92028A

BUSHING

92028-1975

$12.80

92043

PIN,6.2X8X14

92043-1263

$0.43

92043A

92043-1688

$13.60

92139

BUSHING

92139-0215

$10.21

92145

SPRING

92145-0821

$29.17

92210

NUT,LEFT HANDED,16MM

92210-0350

$10.30
